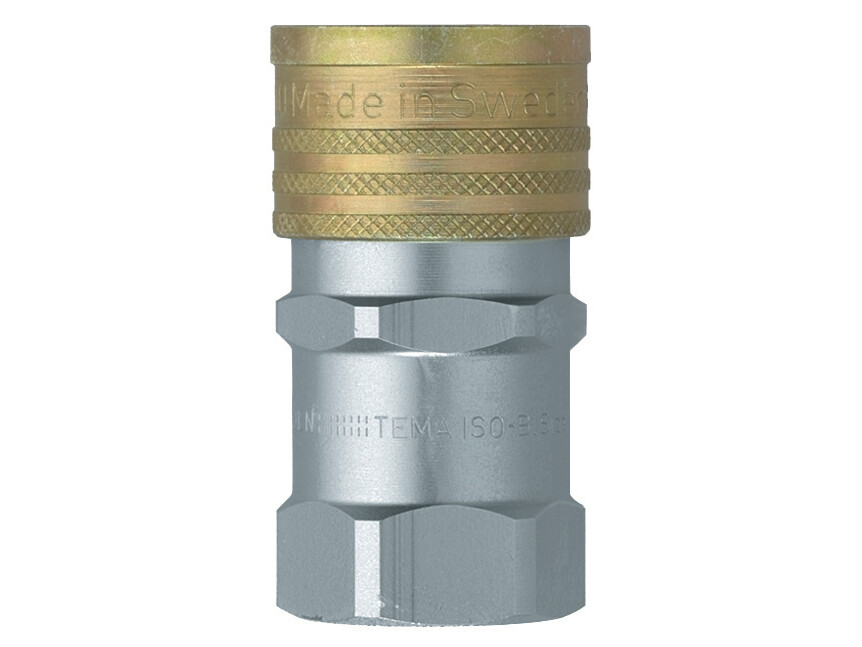

Lynkobling hun - Tema (ISO-B) - DN06 - G1/4" m. eliminator

Quick-coupling with ball-lock.

With pressure eliminator = confined pressure is relieved on connection. Requires that one of the coupling parts is relieved to tank on connection.

Partnumber:
TIB2511

Package size:
0 pcs

Min. order quantity is:
10 pcs
Lynkobling han - Tema (ISO-B) - DN06 - G1/4" m. eliminator
Partnumber: TIB2521
DN
6 mm

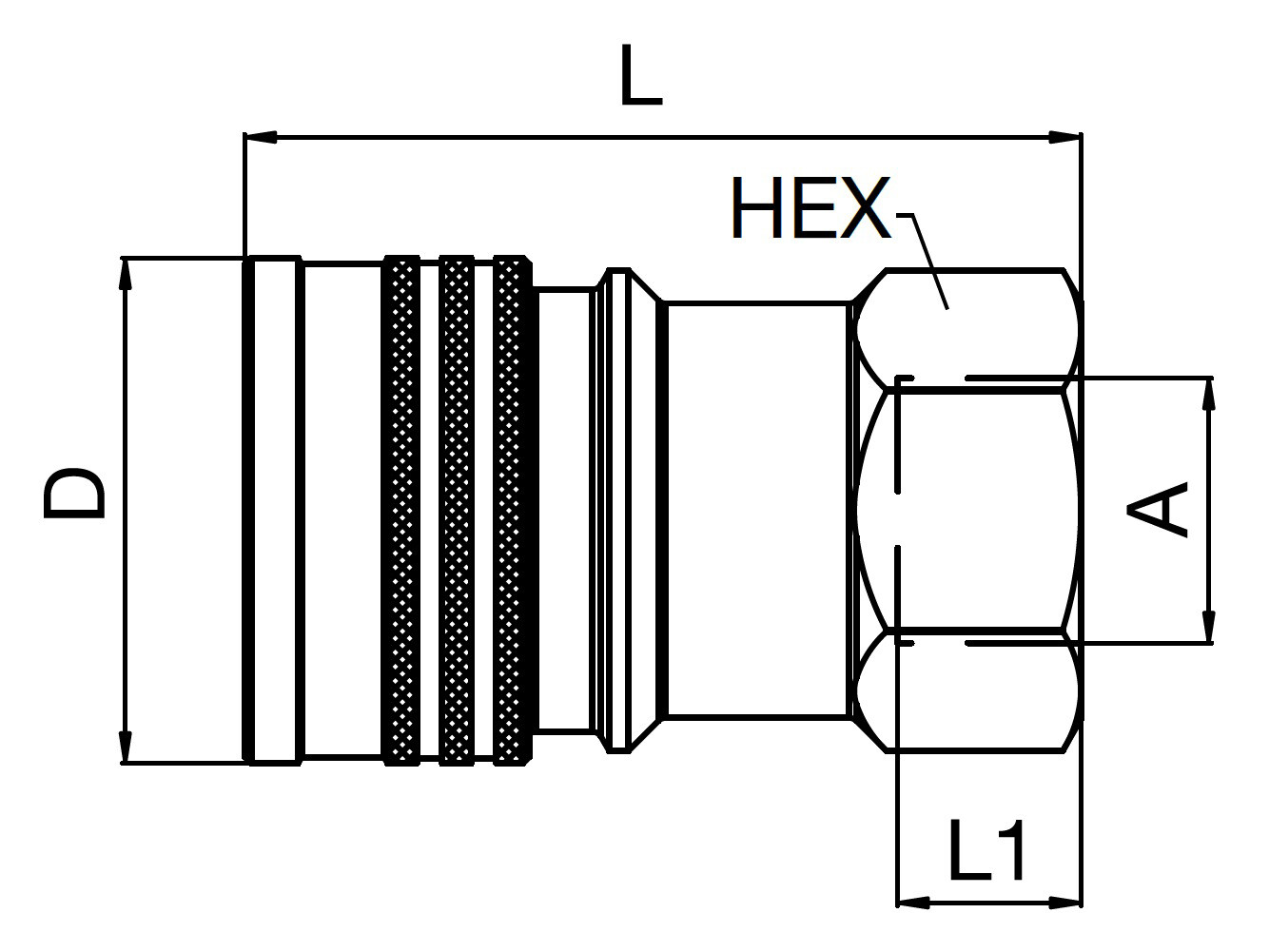

Dimension A
G 1/4 BSP

Dimension D
28 mm

Dimension L
57 mm

Dimension L1
12 mm

Flow rate nominal LMin
14 lpm

Hexagon
24 mm

Material
Steel

Model code
IB2511

Pressure eliminator
Yes

Pressure max.
400 bar

Sealing material
NBR

Size
1/4 "

Standard ISO
ISO 7241-1-B

Temperature max.
+100 °C

Temperature min.
-30 °C

Thread inner
G 1/4 BSP
Package size
0 pcs

Barcode
5704334114239

Gross weight
0,175 Kg

Net weight
0,175 Kg

Country of origin
swe

Intrastat code
84812010

Quick-coupling with ball-lock.

With pressure eliminator = confined pressure is relieved on connection. Requires that one of the coupling parts is relieved to tank on connection.
