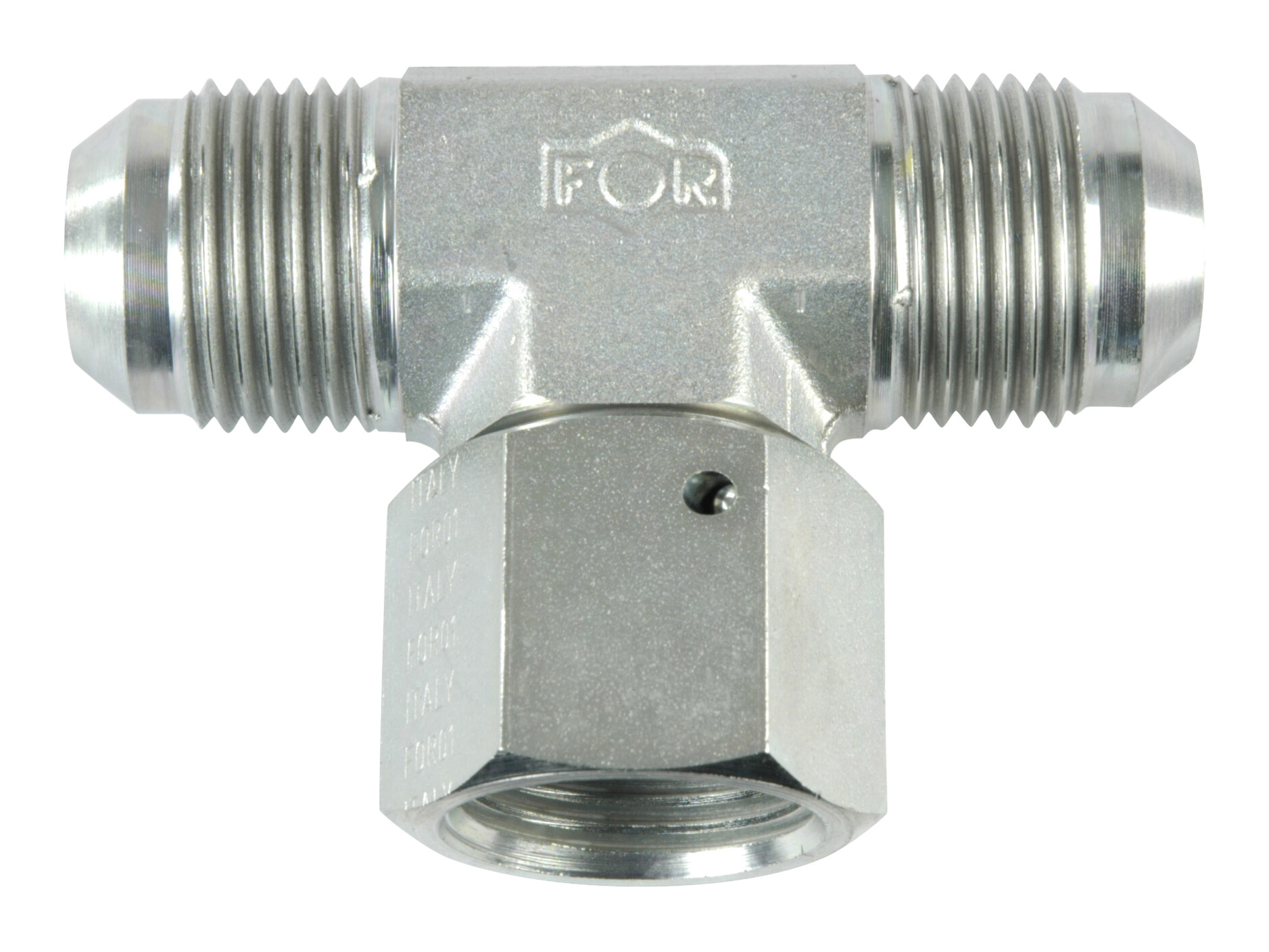

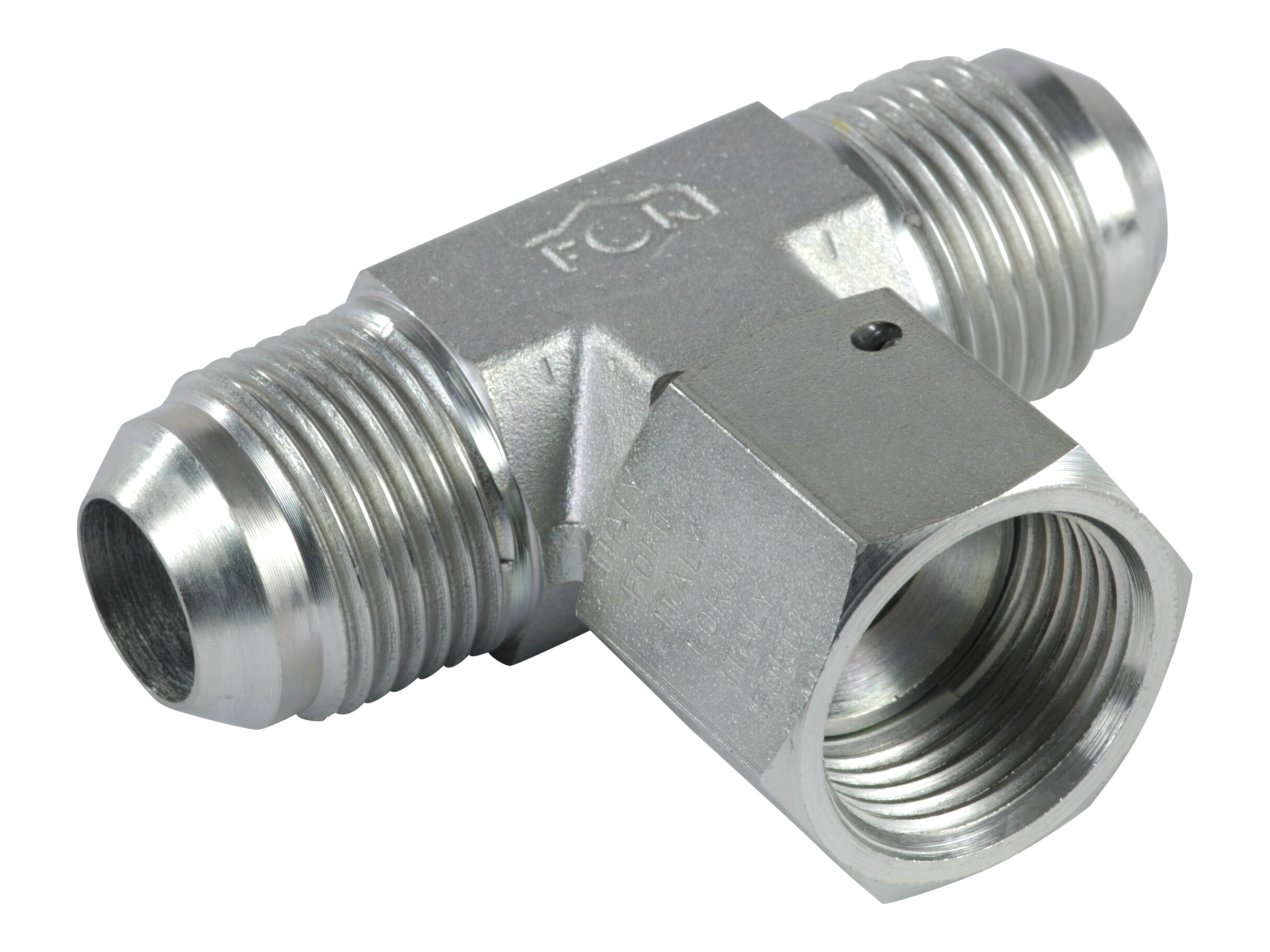

S685-20TG Tee with nut
\ufeff
-
JIC 37° external/internal thread directional T-connector
- JIC internal thread in the middle branch of the T-connector
- JIc external threads in the side branches of the T-connector
Varenummer:
TGL-20
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
Angle
L-liitin °
B
42 mm
B1
42 mm
Brand Name
FOR
C
45,5 mm
CH
32 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
20 mm
Dimension J1
1.1/16-12 JIC
J
1.1/16-12 JIC
J2
1.1/16-12 JIC
Material
Steel
Pressure max.
300 bar
Surface treatment
Electro-galvanized / White chromatized
T
20 mm
T1
20 mm
Thread inner
1.1/16-12 JIC
Thread outer
1.1/16-12 JIC
Pakke str.
0 pcs
Stregkode
5704334064275
Brutto vægt
0,34 Kg
Netto vægt
0,34 Kg
Oprindelsesland
ITA
Intrastat varekode
73071110
\ufeff
-
JIC 37° external/internal thread directional T-connector
- JIC internal thread in the middle branch of the T-connector
- JIc external threads in the side branches of the T-connector
Bemærk: Åbning af 3D-filer kræver et program der understøtter fil-formatet
