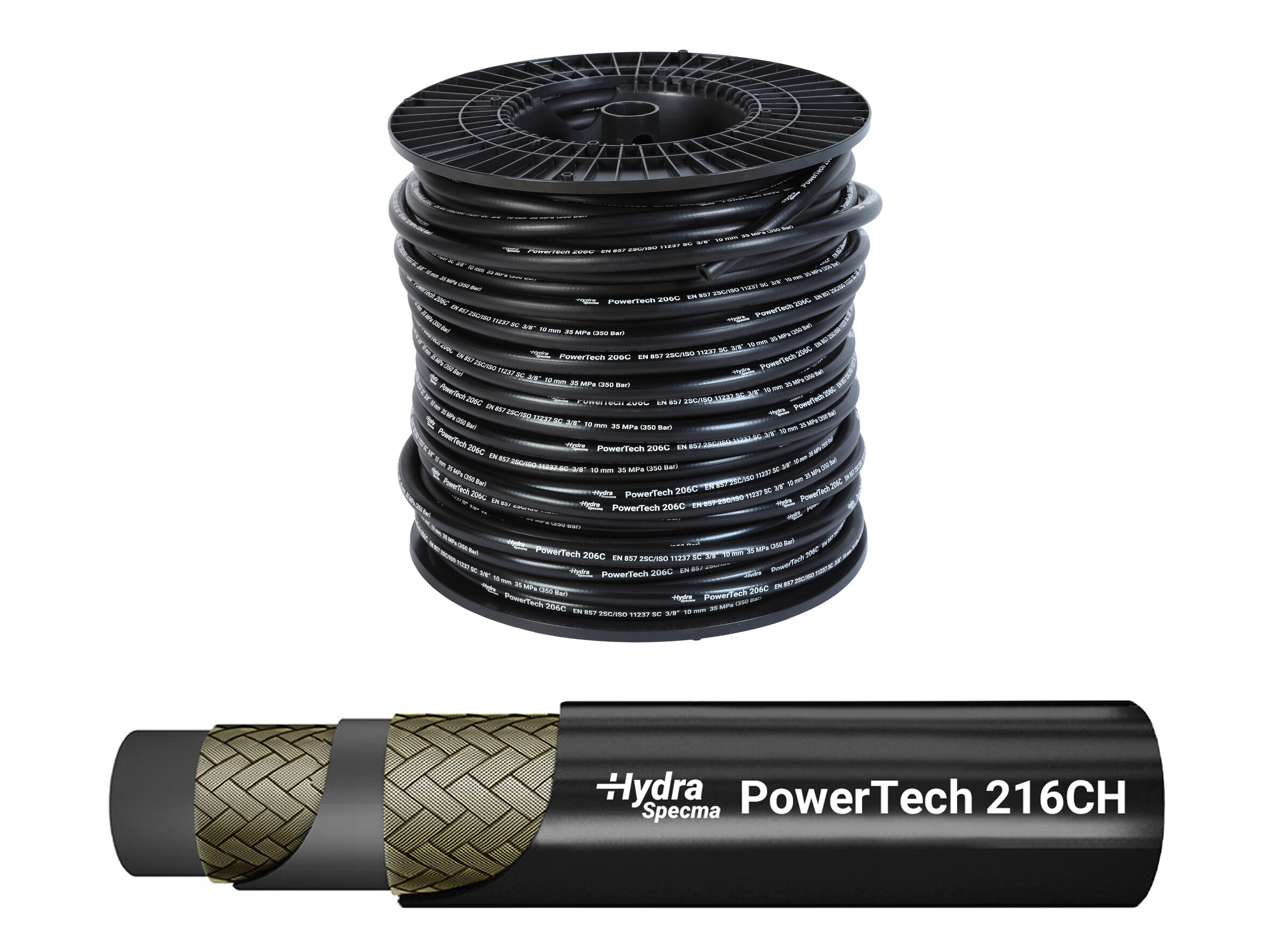

    • 1" Hydraulic hose SPT-216CH - 2SC WP 210 bar

    1" Hydraulic hose SPT-216CH - 2SC WP 210 bar

    1" Hydraulikslange SPT-216CH - 2SC WP 210 bar

    Artikelnummer:
    SPT216CH-PR
    Förpackningsstorlek:
    30 m
    Minsta beställningskvantitet:
    30 m
    46mm MSHA Safe-Sleeve - Black
    Artikelnummer: MSHA-RD046M
    Ferrule 1" for 1SC/2SC/1SN
    Artikelnummer: P1620
    Ferrule 1" for 1SC/1SN/2SC/2SN
    Artikelnummer: P1630
    SL-RD046 - 46mm Safeplast sleeve Black, std. 50 mtr. reel
    Artikelnummer: SL-RD046
    Area of use
    Diesel, Grease, Oil
    Bend radius
    160 mm
    Brand Name
    Hydraspecma
    Cover
    Synthetic rubber
    Diameter inner
    25.5 mm
    Diameter outer
    35.8 mm
    Diameter roll
    570 mm
    Flameresistant
    Yes
    Hose size
    1 "
    Hose type
    2SC
    Hoseapprovals
    ABS, BV, CCS, DNV, KR, LLOYD, MED, NKK, RINA
    Length per roll
    32 m
    Model code
    SPT-2-16-CH
    Order unit
    Plastic roll
    Pressure burst min.
    840 bar
    Pressure max.
    210 bar
    REACH compliant
    Yes
    Reinforcement
    2 layer high tensile steel wire braid
    RoHs compliant
    Yes
    Standard EN
    EN 857 2SC
    Standard ISO
    ISO 11237 2SC
    Temperature intermittent max.
    +135 °C
    Temperature max.
    +120 °C
    Temperature min.
    -40 °C
    Tube
    NBR (Nitrile)
    Width
    28 cm
    Förpackningsstorlek
    30 m
    Streckkod
    5704334827429
    Bruttovikt
    Kg
    Nettovikt
    Kg
    Ursprungsland
    rou
    Intrastat artikelkod
    40092100

    1" Hydraulikslange SPT-216CH - 2SC WP 210 bar

    Data sheet
