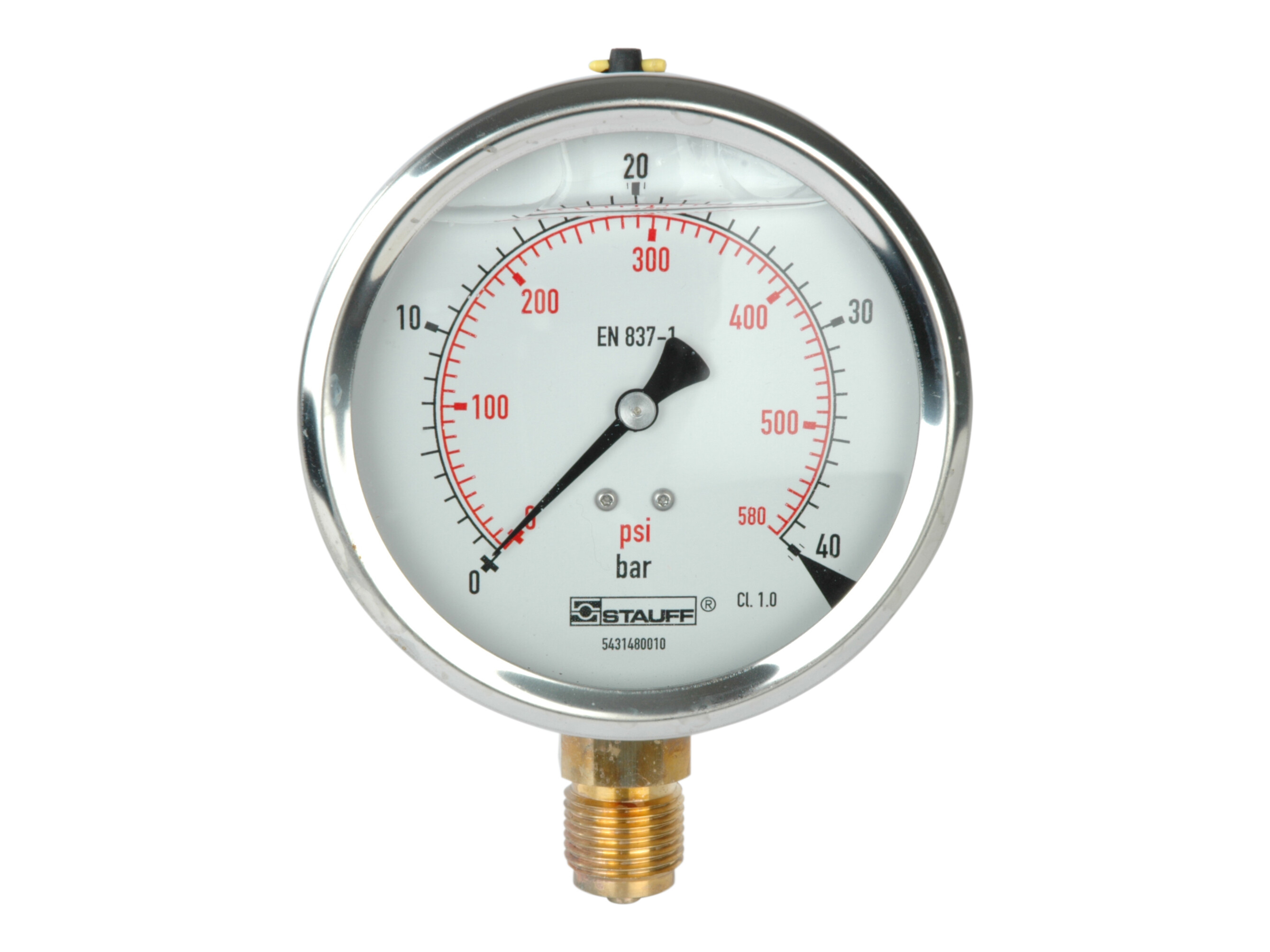

1/2" pressure gauge. Stem mount. Scale 0-40 bar
Application: Measuring pressure in hydraulic oil and gaseous fluids which are non-aggresive to copper alloys.
Glycerine dampened.
Comes standard with dual scale showing both bar and PSI.
U-bolt or flange mounting kit optional.
!!NOTE: Mounting hole diameter: ø67 mm +/-0,3 mm.
Artikelnummer:
SPG100-040SB
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
B
87 mm
C
23 mm
Diameter
100 mm
E
48 mm
F
8 mm
Glastyp
Acrylic glass
Gänga
G 1/2 BSP
Materialkvalitet
1.4301 / AISI304
Modell kod
SPG-100-00040-01-S-B08
Märke namn
Stauff
Portplacering
Side
Skyddsklass
IP 65
Standard EN
EN 837-1
Tillverkningsmaterial
Stainless steel
Tryckinställning max.
40 bar
Tryckinställning min.
0 bar
Tryckmätning noggrannhet
±1,0% FS
ØA
107 mm
ØD
G 1/2 BSP
Förpackningsstorlek
0 pcs
Streckkod
5704295678368
Bruttovikt
0,84 Kg
Nettovikt
0,84 Kg
Ursprungsland
DEU
Intrastat artikelkod
90262040
Application: Measuring pressure in hydraulic oil and gaseous fluids which are non-aggresive to copper alloys.
Glycerine dampened.
Comes standard with dual scale showing both bar and PSI.
U-bolt or flange mounting kit optional.
!!NOTE: Mounting hole diameter: ø67 mm +/-0,3 mm.
