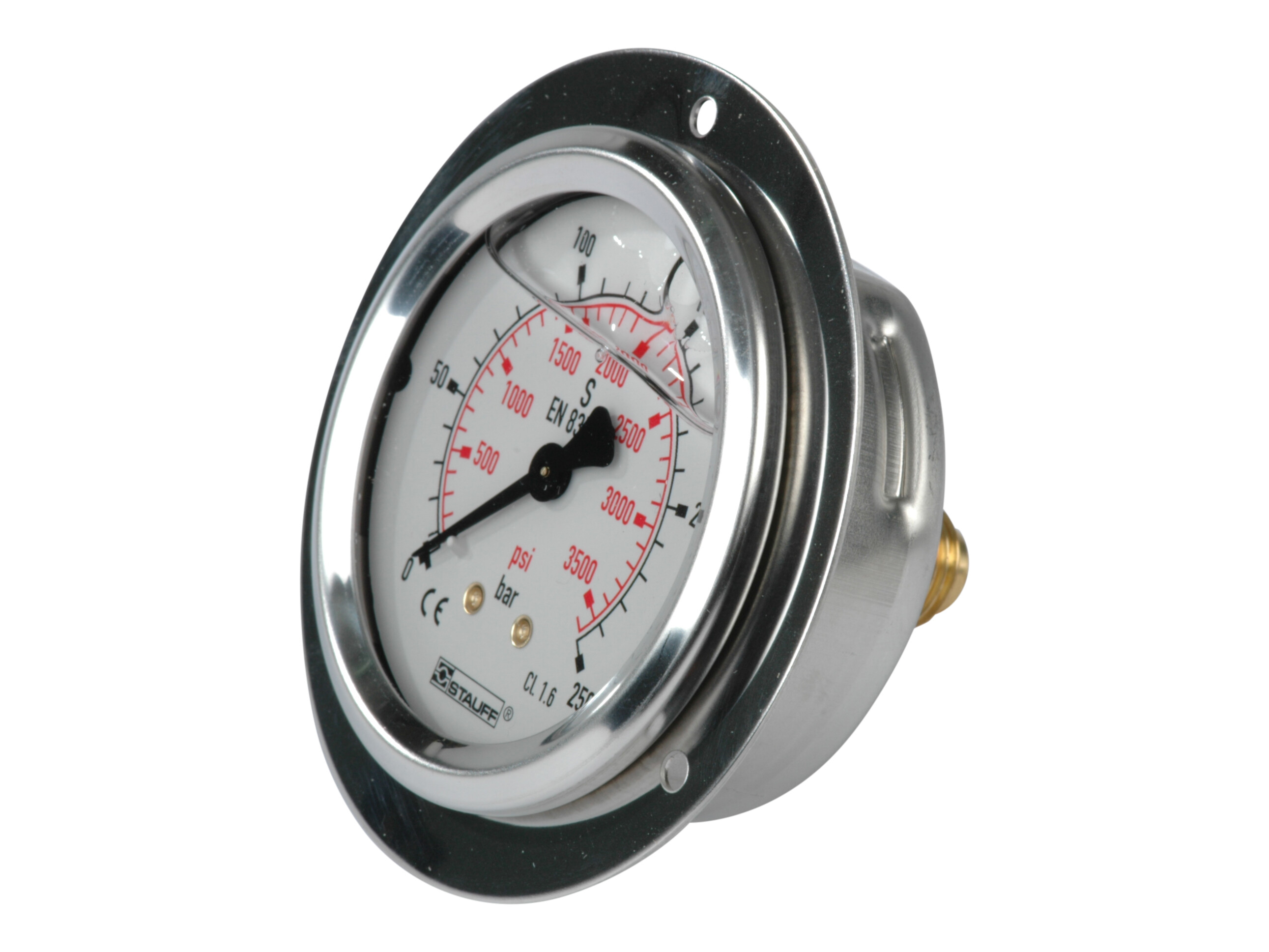

1/4" pressure gauge. Rear mount w. frontring. Scale 0-700 ba
Application: Measuring pressure in hydraulic oil and gaseous fluids which are non-aggresive to copper alloys.
Glycerine dampened.
Comes standard with dual scale showing both bar and PSI.
U-bolt or flange mounting kit optional.
!!NOTE: Mounting hole diameter: ø67 mm +/-0,3 mm.
Varenummer:
SPG063-700RF
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
Brand Name
Stauff
Diameter
63 mm
Glass type
Acrylic glass
Material
Stainless steel
Material quality
1.4301 / AISI304
Port position
Rear
Pressure measurement accuracy
±1,6% FS
Pressure setting max.
700 bar
Pressure setting min.
0 bar
Thread
G 1/4 BSP
Förpackningsstorlek
0 pcs
Streckkod
5704295681238
Bruttovikt
0,28 Kg
Nettovikt
0,28 Kg
Ursprungsland
DEU
Intrastat artikelkod
90262040
Application: Measuring pressure in hydraulic oil and gaseous fluids which are non-aggresive to copper alloys.
Glycerine dampened.
Comes standard with dual scale showing both bar and PSI.
U-bolt or flange mounting kit optional.
!!NOTE: Mounting hole diameter: ø67 mm +/-0,3 mm.
