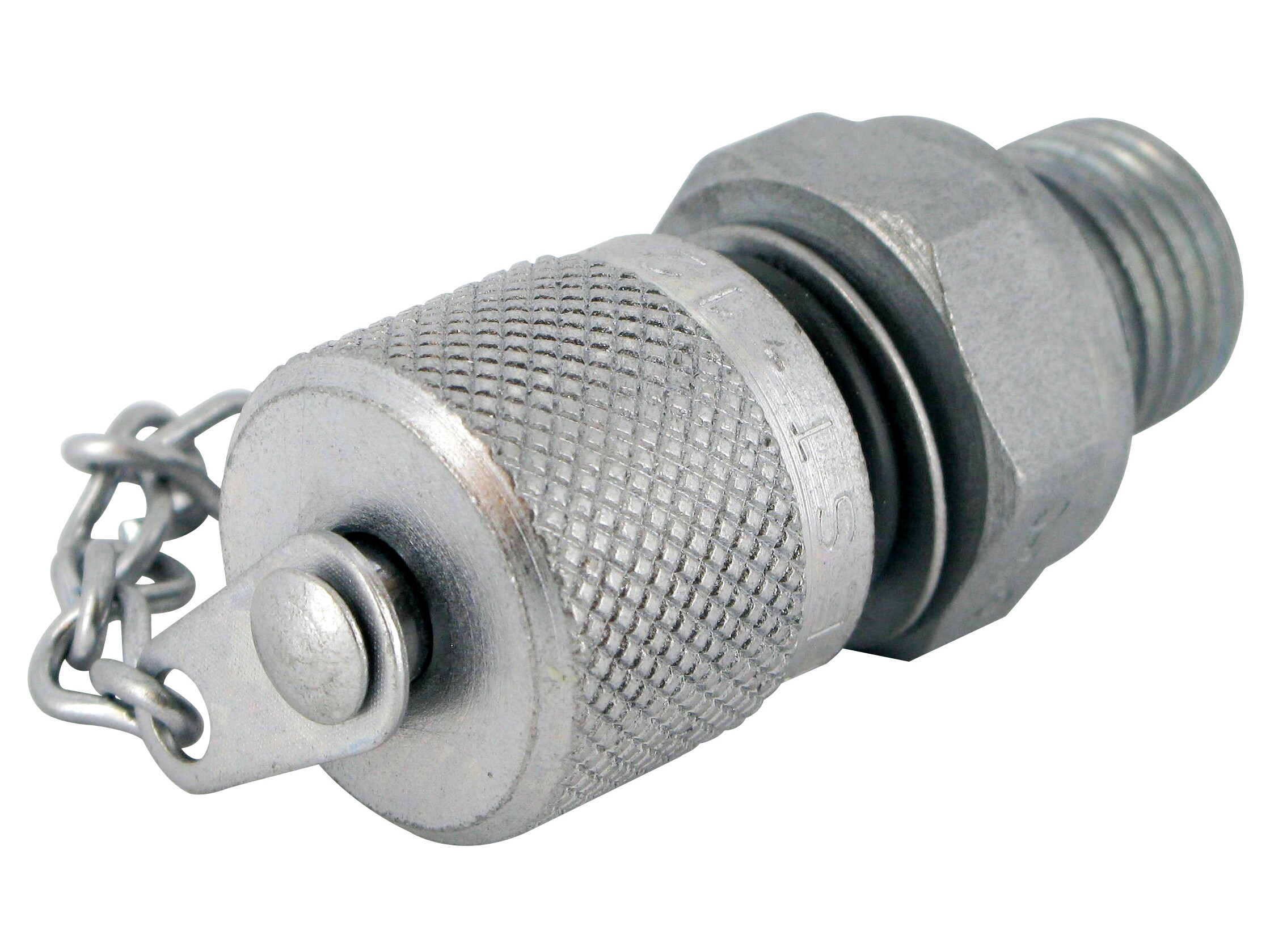

Adaptor G 1/4, WD w.metal cap M12,65x1,5
Adaptor for a mini test-point connection, used to create a measurement interface in a hydraulic circuit. The body provides a G 1/4 BSP male thread for installation in the system, and a S12,65x1,5 test connection with a metal protection cap.
Designed for pressure monitoring and diagnostic connection points where a compact test coupling is required. NBR sealing and a zinc-nickel plated steel body are specified for the item.
Typical Applications
- Pressure measurement and troubleshooting points in hydraulic systems
- Service test connections on hydraulic lines and components
Partnumber:
SKK12G1/4PC
Package size:
0 pcs
Min. order quantity is:
1 pcs
Brand Name
Stauff
Hexagon
19 mm
Material
Steel
Model code
SKK-12-G1/4-B-C-W3
Pressure max.
630 bar
SW
19 mm
Sealing material
NBR
Surface treatment
Zinc-Nickel plated
T
G 1/4 BSP
Temperature max.
+100 °C
Temperature min.
-20 °C
Thread outer
G 1/4 BSP
Thread outer
G 1/4 BSP
Thread outer metric
M12,65x1,5
Torque tightening
45 Nm
h1
31 mm
h2
12 mm
Package size
0 pcs
Barcode
5704334175933
Gross weight
0,08 Kg
Net weight
0,08 Kg
Country of origin
DEU
Intrastat code
84812010
Adaptor for a mini test-point connection, used to create a measurement interface in a hydraulic circuit. The body provides a G 1/4 BSP male thread for installation in the system, and a S12,65x1,5 test connection with a metal protection cap.
Designed for pressure monitoring and diagnostic connection points where a compact test coupling is required. NBR sealing and a zinc-nickel plated steel body are specified for the item.
Typical Applications
- Pressure measurement and troubleshooting points in hydraulic systems
- Service test connections on hydraulic lines and components
