4 Layer ferrule 1.1/4" for 4SP

Ferrule for 4-layer hydraulic hose type 4SH / R15.

ALWAYS contact our sales-office for crimp-data before crimping !

Partnumber:

P20344

Package size:

0 pcs

Min. order quantity is:

1 pcs

Specifications
Dimensions and shipping

Brand Name

I.M.M Hydraulics

Diameter inner

48.6 mm

Diameter outer

62 mm

Dimension D

48.6 mm

Dimension D

62 mm

Dimension L

62 mm

Hose size

1.1/4 "

Length

62 mm

Material

Steel

Model code

BMC1-20

Surface treatment

Electro-galvanized / White chromatized

Package size

0 pcs

Barcode

5704295915869

Gross weight

0,38 Kg

Net weight

0,38 Kg

Country of origin

ITA

Intrastat code

73269098

Product information

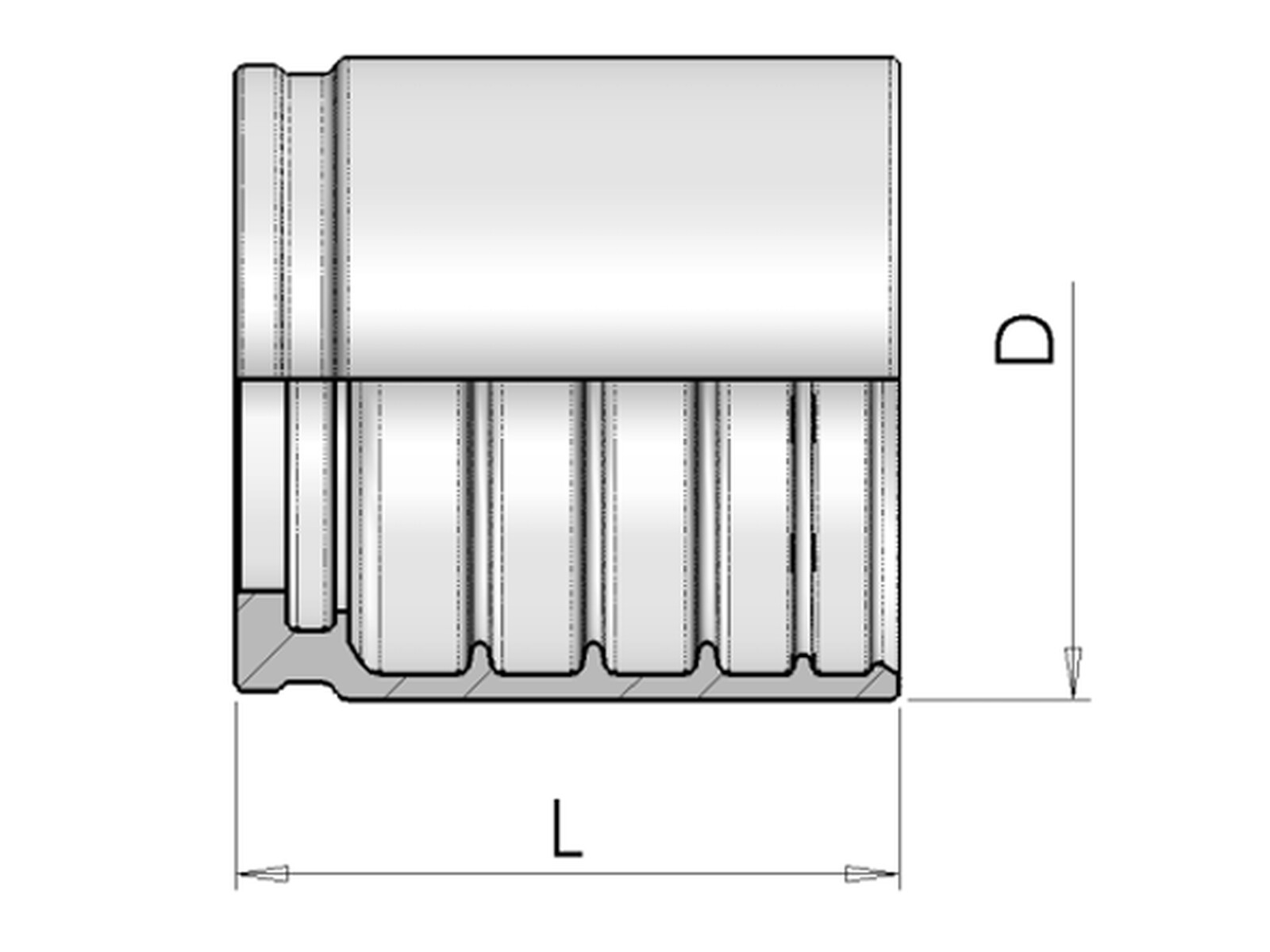

Measure sketch

Ferrule for 4-layer hydraulic hose type 4SH / R15.

ALWAYS contact our sales-office for crimp-data before crimping !
