Insert 3/4" - 3/4" BSP nut Japanese
Insert with nut and BSP female thread - Japanese type!
Connection: BSP female thread in nut with 30° cone face.
Sealing: Cone against cone.
Artikelnummer:
P1212NP
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs

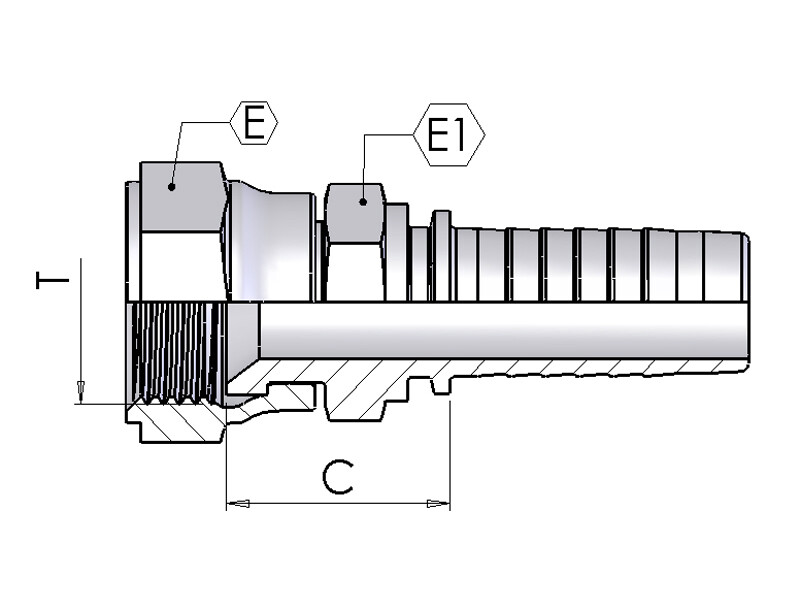

Dimension C
29 mm
Dimension E
32 mm
Dimension E1
30 mm
Dimension T
G 3/4 "JIS-G
Gänga
3/4 "JIS/G
Modell kod
0930-12-12
Märke namn
I.M.M Hydraulics
Slangdimension
3/4 "
Slangkopplingstyp
For separate ferrule
Tillverkningsmaterial
Steel
Vinkel
0 °
Ytskiktbehandling
Electro-galvanized / White chromatized
Åtdragning moment
118 Nm
Förpackningsstorlek
0 pcs
Streckkod
5704295693897
Bruttovikt
0,12 Kg
Nettovikt
0,12 Kg
Ursprungsland
ITA
Intrastat artikelkod
73269098
Insert with nut and BSP female thread - Japanese type!
Connection: BSP female thread in nut with 30° cone face.
Sealing: Cone against cone.
