Insert 5/8" - 5/8" BSP nut 90°
Insert with nut and BSP female thread.
Connection: BSP female thread in nut, with 60° cone face and o-ring.
Sealing: O-ring against metal (cone).
Partnumber:
P1010NO90
Package size:
0 pcs
Min. order quantity is:
1 pcs
Angle
90 °
Brand Name
I.M.M Hydraulics

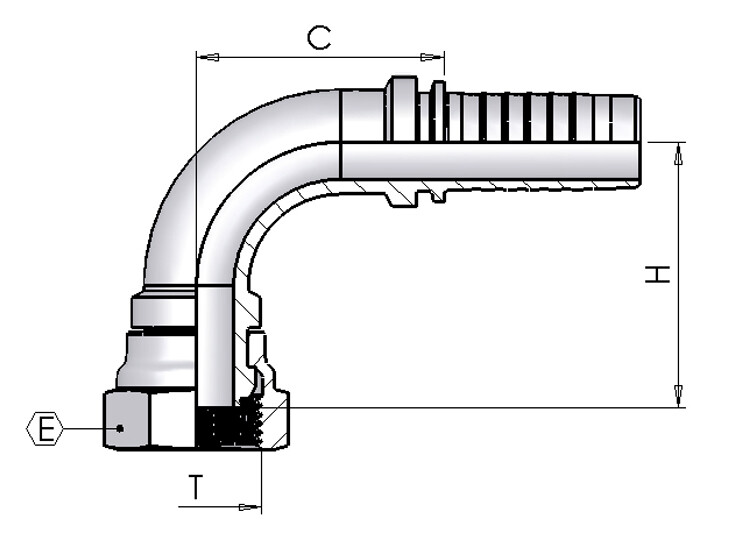

Dimension C
43 mm
Dimension E
30 mm
Dimension H
46 mm
Dimension T
G 5/8 BSP
Hose coupling type
For separate ferrule
Hose size
5/8 "
Material
Steel
Model code
0141-10-10
Sealing material
NBR
Surface treatment
Electro-galvanized / White chromatized
Temperature max.
+100 °C
Temperature min.
-30 °C
Thread
G 5/8 BSP
Torque tightening
56 Nm
Pakke str.
0 pcs
Stregkode
5704295729084
Brutto vægt
0,17 Kg
Netto vægt
0,17 Kg
Oprindelsesland
ITA
Intrastat varekode
73269098
Insert with nut and BSP female thread.
Connection: BSP female thread in nut, with 60° cone face and o-ring.
Sealing: O-ring against metal (cone).
