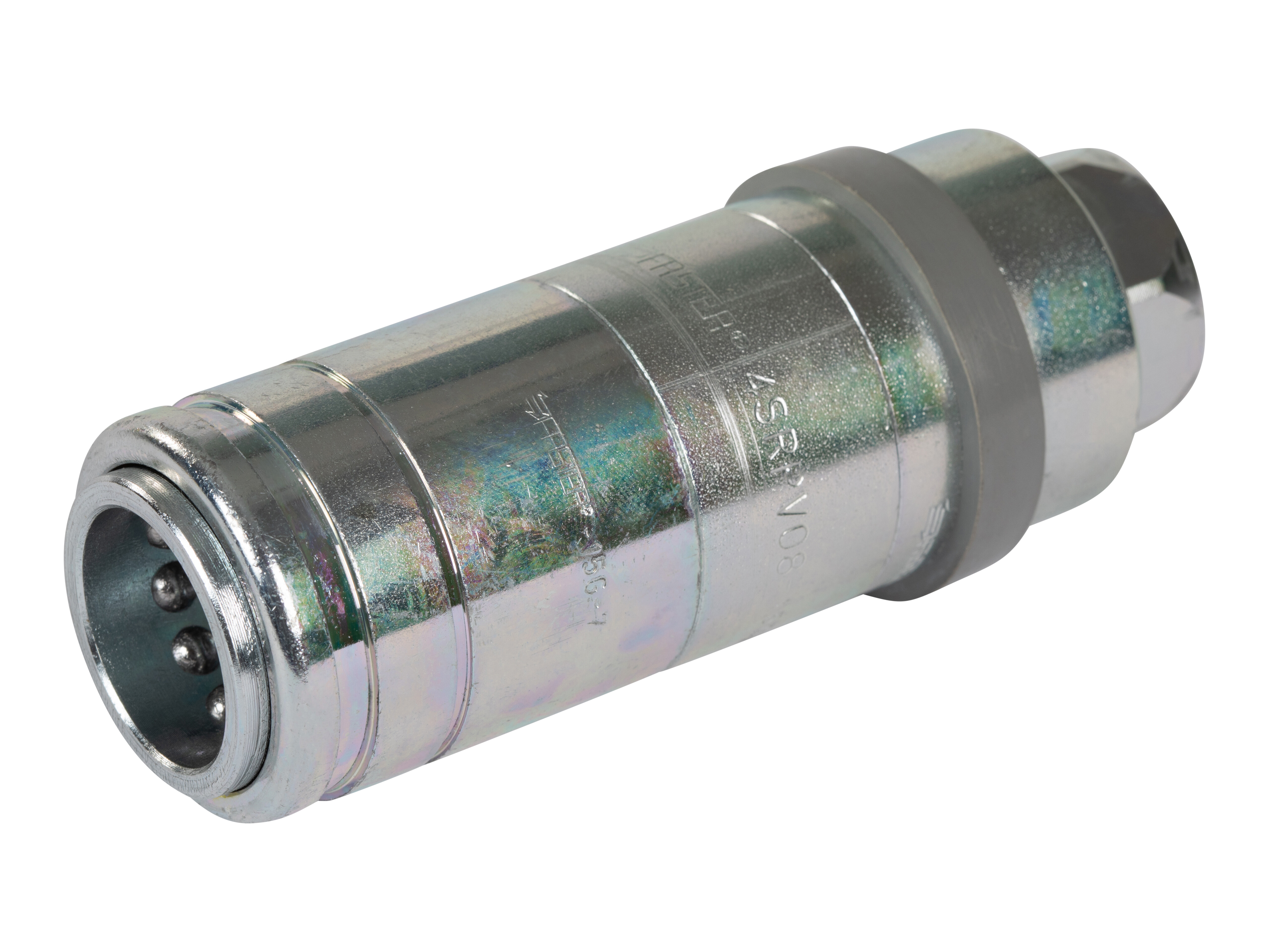

Coupling female NS (ISO-A) - DN12 - 1/2"BSP

Standard quick coupler

Connection system: pulling back the sleeve.

Disconnection system: pulling back the sleeve.

Shut off system: ball valve.

Connectability: without pressure.

Disconnection under pressure: not allowed.

Partnumber:
NS12GASF

Package size:
0 pcs

Min. order quantity is:
1 pcs
Coupling male NS (ISO-A) - DN12 - 1/2"BSP
Partnumber: NS12GASM
Dustplug orange for NV12 femal ISO7241-1A, FASTER
Partnumber: TM12LA
Dustplug blue for NV12 female ISO7241-1A, FASTER
Partnumber: TM12LB
Dustplug yellow for NV12 femal ISO7241-1A, FASTER
Partnumber: TM12LG
Replaced by B328 TM12LN FASTER black
Partnumber: TM12LN
Dustplug red for NV12 female ISO7241-1A, FASTER
Partnumber: TM12LR
Dustplug green for NV12 female ISO7241-1A, FASTER
Partnumber: TM12LV
sealkit female NV12 (10) o-ring + antiextrusion
Partnumber: SKNV12
Brand Name
Faster

Corrosion resistance
500 hours salt spray ISO 9227

Dimension A
G 1/2 BSP

Dimension D1
38 mm

Dimension L1
68 mm

Dimension X
27 mm

Flow rate nominal LMin
50 lpm

ISO size
12.5

Material
Steel

Model code
NS 12 GAS F

Pressure max.
200 bar

Sealing material
NBR

Size
1/2 "

Standard ISO
ISO 7241-1-A

Surface treatment
Zinc coating (CR III)

Temperature max.
+125 °C

Temperature min.
-25 °C

Thread inner
G 1/2 BSP

Type
Ball
Package size
0 pcs

Barcode
5704334199250

Gross weight
0,26 Kg

Net weight
0,26 Kg

Country of origin
ITA

Intrastat code
84812010

Standard quick coupler

Connection system: pulling back the sleeve.

Disconnection system: pulling back the sleeve.

Shut off system: ball valve.

Connectability: without pressure.

Disconnection under pressure: not allowed.
