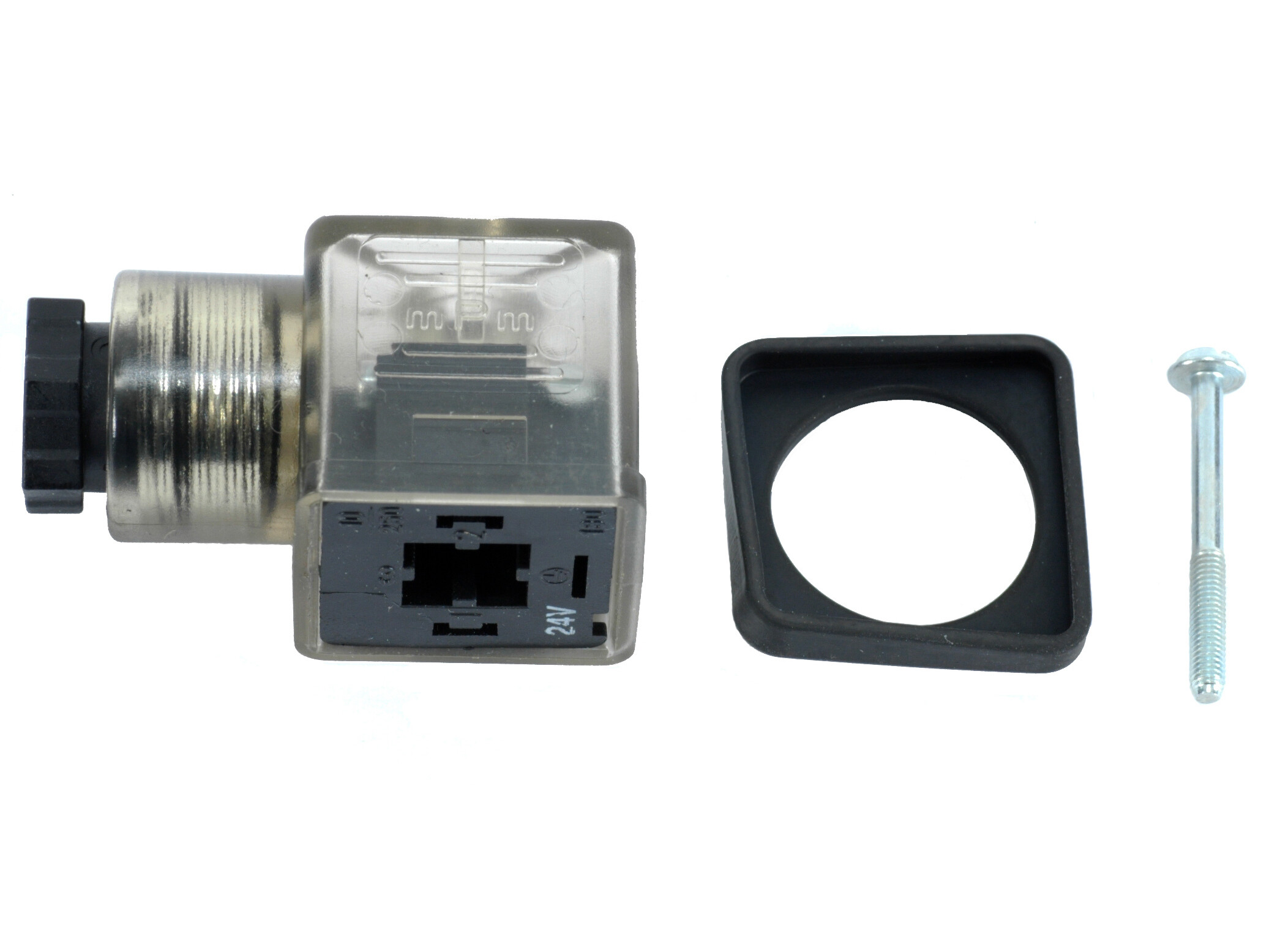

DIN-connector with Led 24vdc
Din-connector according to EN 175301-803 (DIN 43650). Comes with cable connection, holding screw and gasket.
Cable connection: Screw terminals Cross-sectional area : 0,5 - 1,5 mm2
Varenummer:
MPM182-0924V
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
Color
Clear
Comment
PG9
Current max.
10 A
Current type
DC
Diameter cable max.
8 mm
Diameter cable min.
6 mm
Number of LED's
1
Number of connectorpins
3
Overvoltage protection
No
Plug type
DIN 43650 Form A
Rectifier built-in
No
Sealing material
NBR
Standard DIN
DIN 43650
Standard EN
EN 175301-803
Standard ISO
ISO 4400
Temperature max.
+125 °C
Temperature min.
-40 °C
Voltage max.
24 V
Förpackningsstorlek
0 pcs
Streckkod
5704295232065
Bruttovikt
0,02 Kg
Nettovikt
0,02 Kg
Ursprungsland
Intrastat artikelkod
84812010
Din-connector according to EN 175301-803 (DIN 43650). Comes with cable connection, holding screw and gasket.
Cable connection: Screw terminals Cross-sectional area : 0,5 - 1,5 mm2
