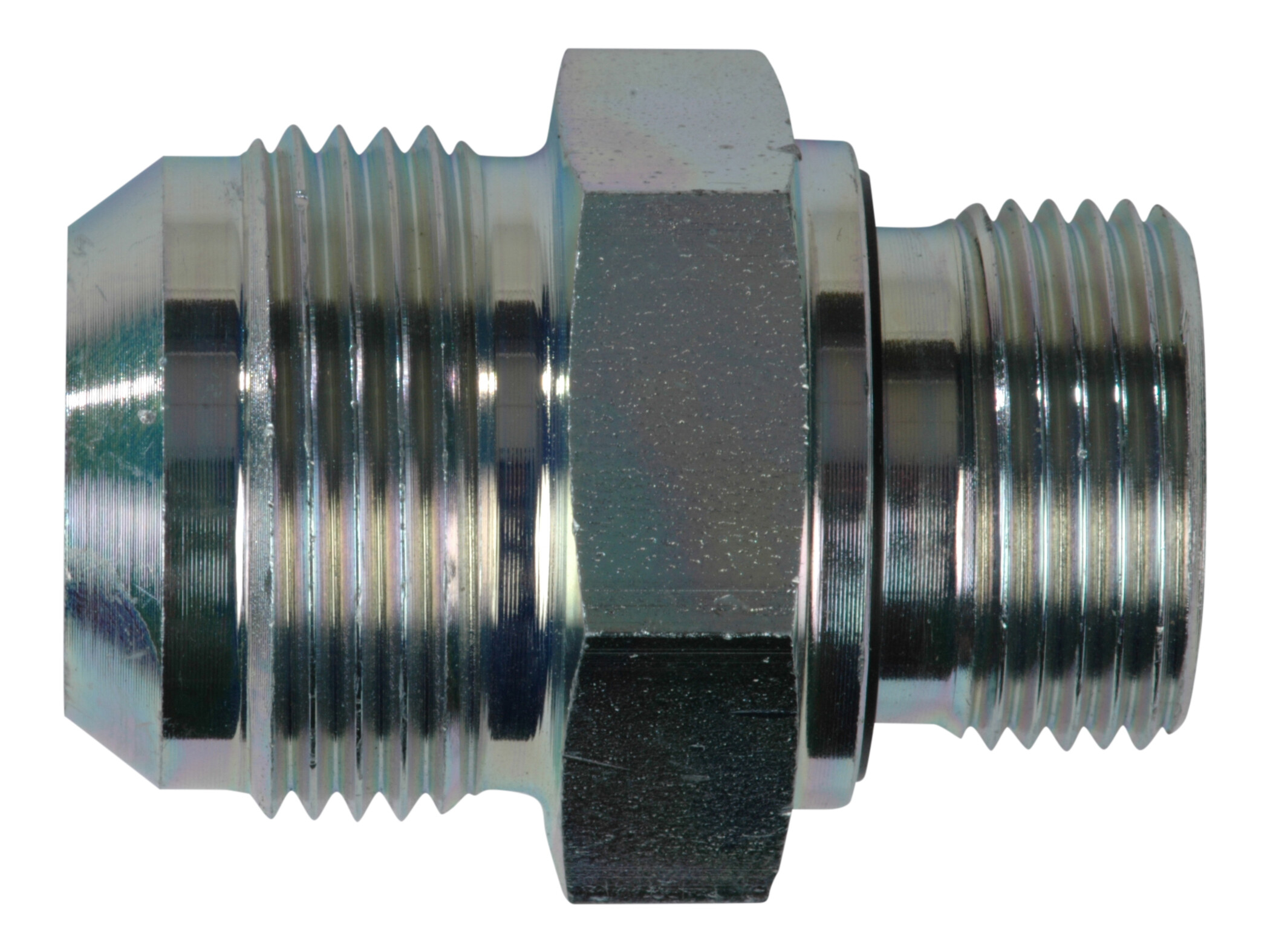

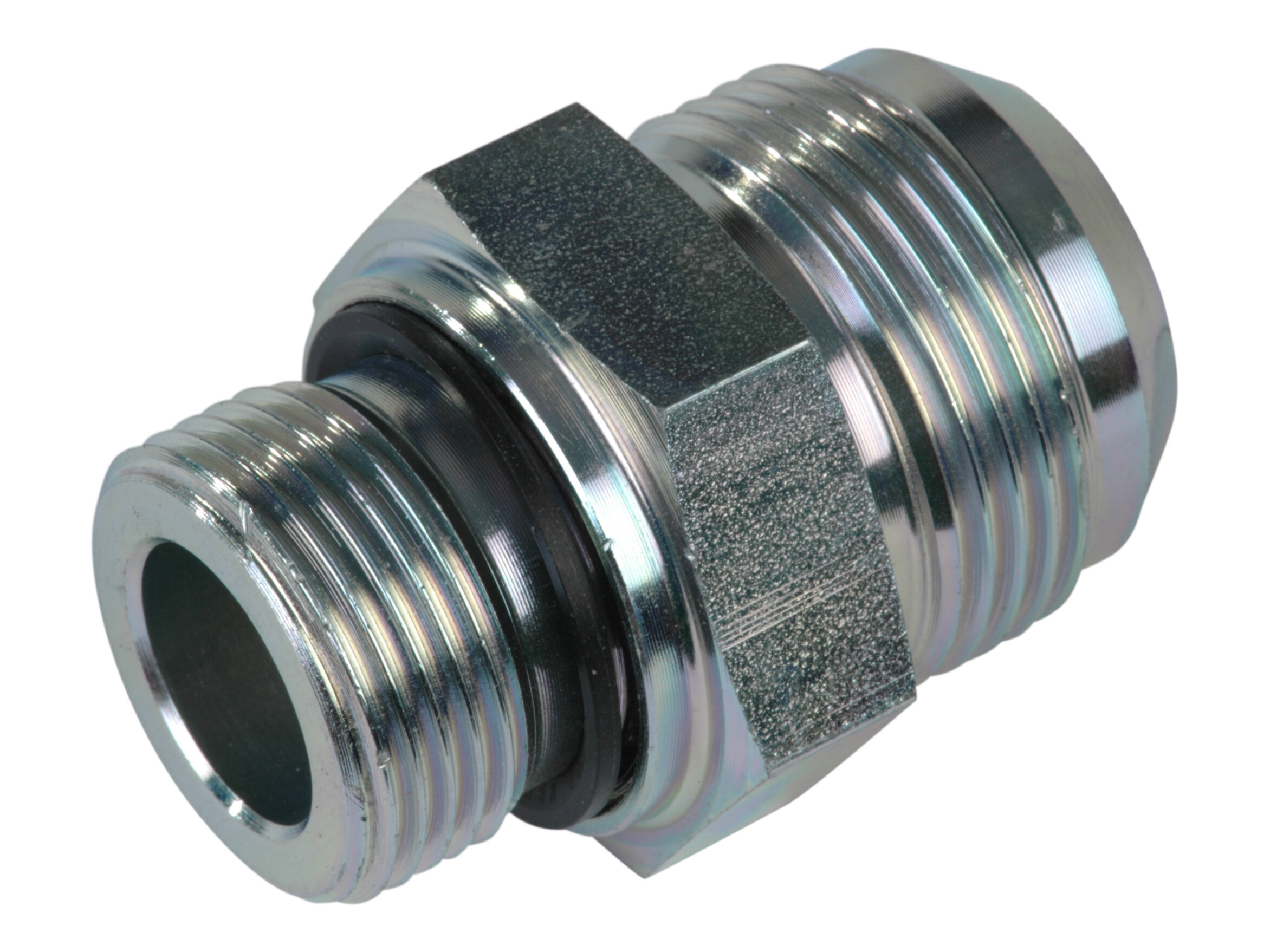

Adapter Rak, Utv-JIC, Utv-G-ED

ADAPTER RAK UTV-JIC UTV-G-ED

Partnumber:

M-25-3/4WD

Package size:

0 pcs

Min. order quantity is:

1 pcs

Accessories (2)

Bushing

Partnumber: B-25

Nut 1.5/16-12 JIC

Partnumber: J-25

Specifications
Dimensions and shipping

Angle

0 °

Diameter pipe

25 mm

Dimension A

52.5 mm

Dimension B

23.1 mm

Dimension CH

36 mm

Dimension D

16 mm

Dimension F

G 3/4 BSP

Dimension J

1.5/16-12 JIC

Dimension T

25 mm

Material

Steel

Pressure max.

250 bar

Thread

G 3/4 BSP

Package size

0 pcs

Barcode

5704295496573

Gross weight

Net weight

Country of origin

ita

Product information

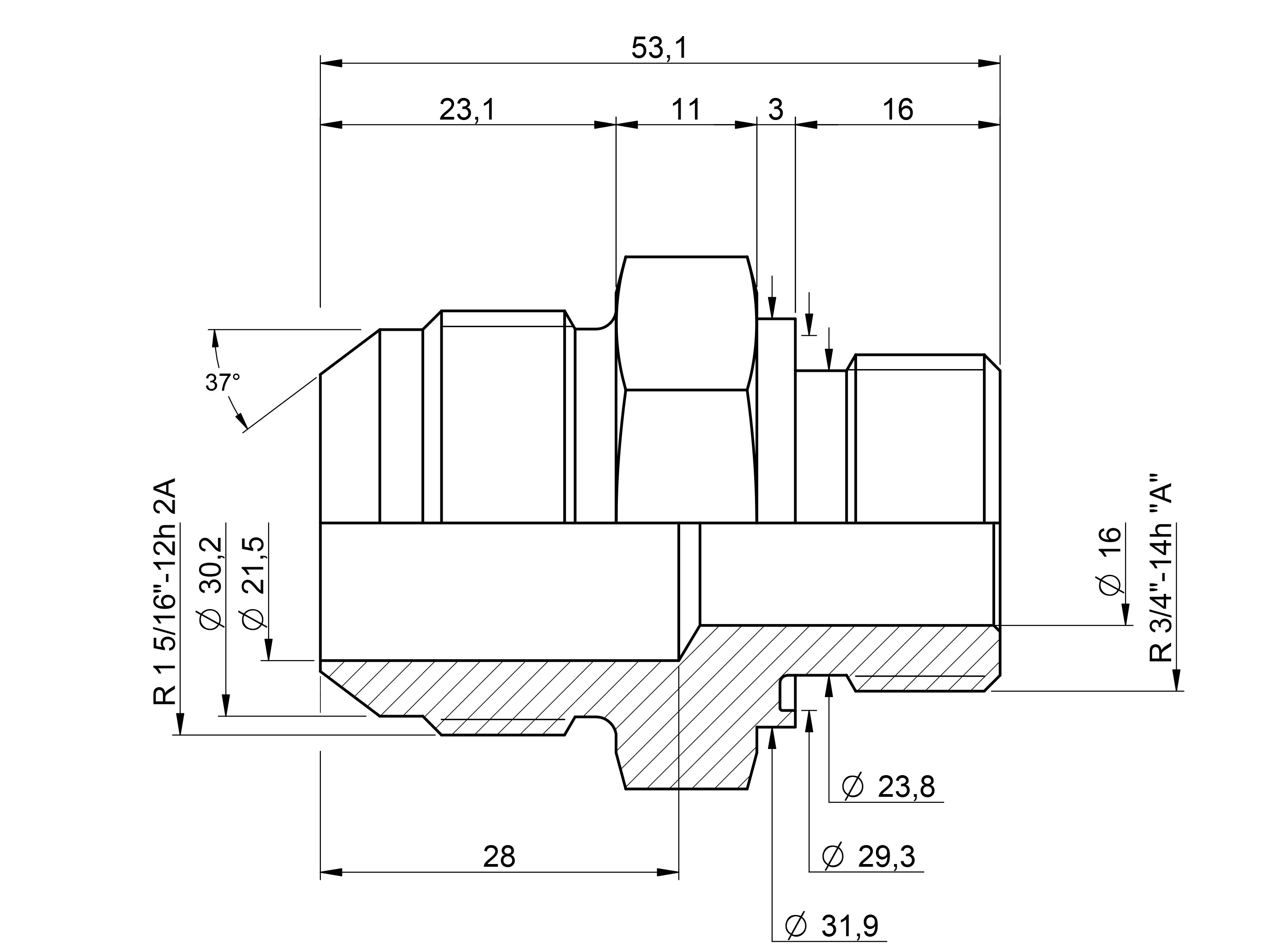

Measure sketch

ADAPTER RAK UTV-JIC UTV-G-ED

Note: Opening 3D files requires a program that supports the file format
