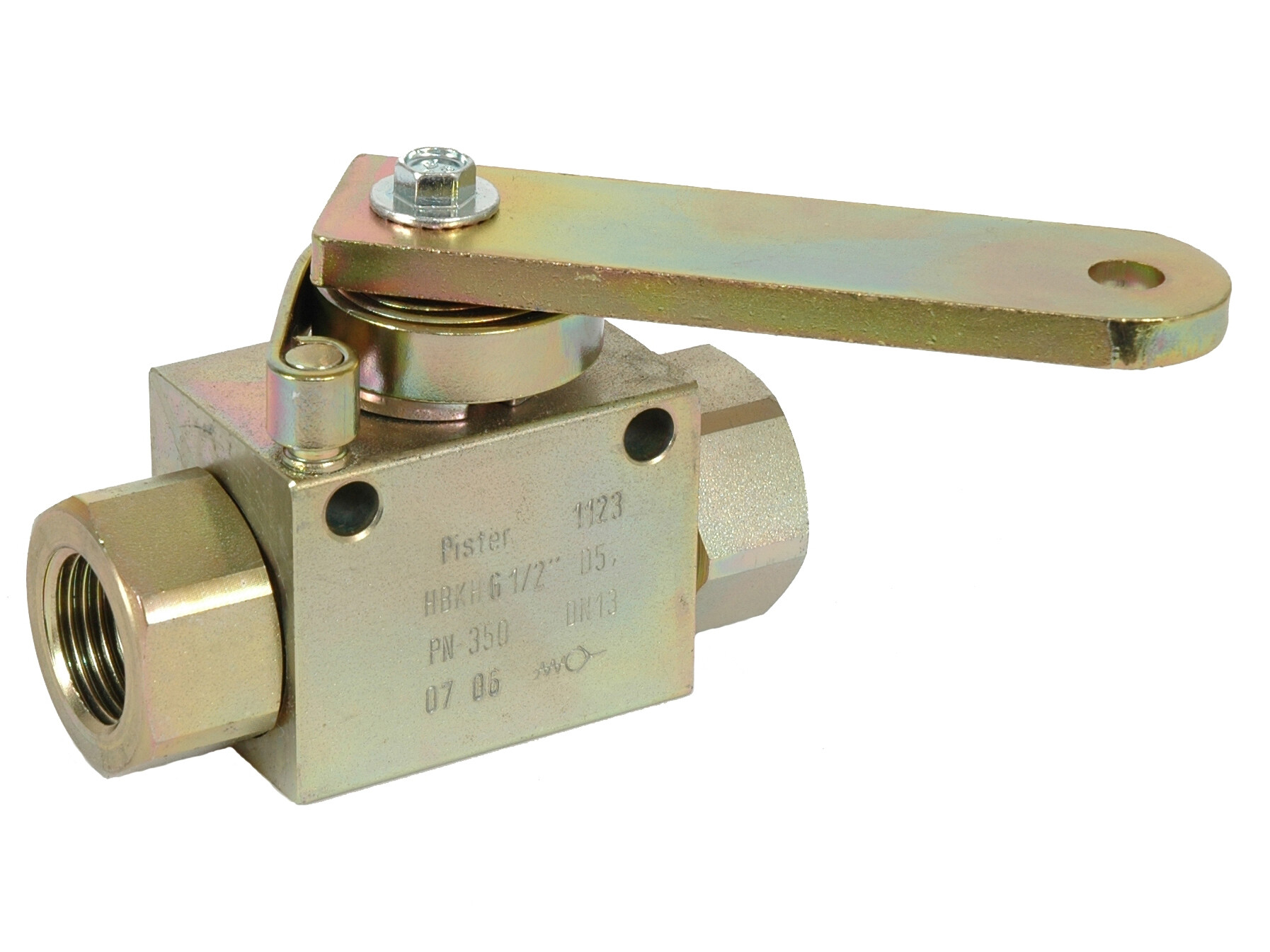

Ball valve - tip stop HBKH G1/2 13 1123 1 p with gr
The stroke limiter valve must be mounted on the tip cylinder pressure line to protect the cylinder against "over-tipping". A wire must be mounted between the stroke limiter and the bottom of the platform. The lengt of the wire must be adapted so that it tightens up shortly before the tip cylinder reaches it's top position.
Partnumber:
HBKH-1/2
Package size:
0 pcs
Min. order quantity is:
1 pcs
Activation
Mechanical
Brand Name
Pister Kugelhähne
Dimension B
35 mm
Dimension H
59.2 mm
Dimension H1
40 mm
Dimension L1
51 mm
Lever
Inclusive
Lever type
Straight
Number of mounting holes
2
Number of ways/positions
2/2
Pressure max.
500 bar
Surface treatment
Electro-galvanized / White chromatized
Temperature max.
+50 °C
Temperature min.
-10 °C
Thread
G 1/2 BSP
Package size
0 pcs
Barcode
5704295021836
Gross weight
0,74 Kg
Net weight
0,74 Kg
Country of origin
DEU
Intrastat code
84812010
The stroke limiter valve must be mounted on the tip cylinder pressure line to protect the cylinder against "over-tipping". A wire must be mounted between the stroke limiter and the bottom of the platform. The lengt of the wire must be adapted so that it tightens up shortly before the tip cylinder reaches it's top position.
