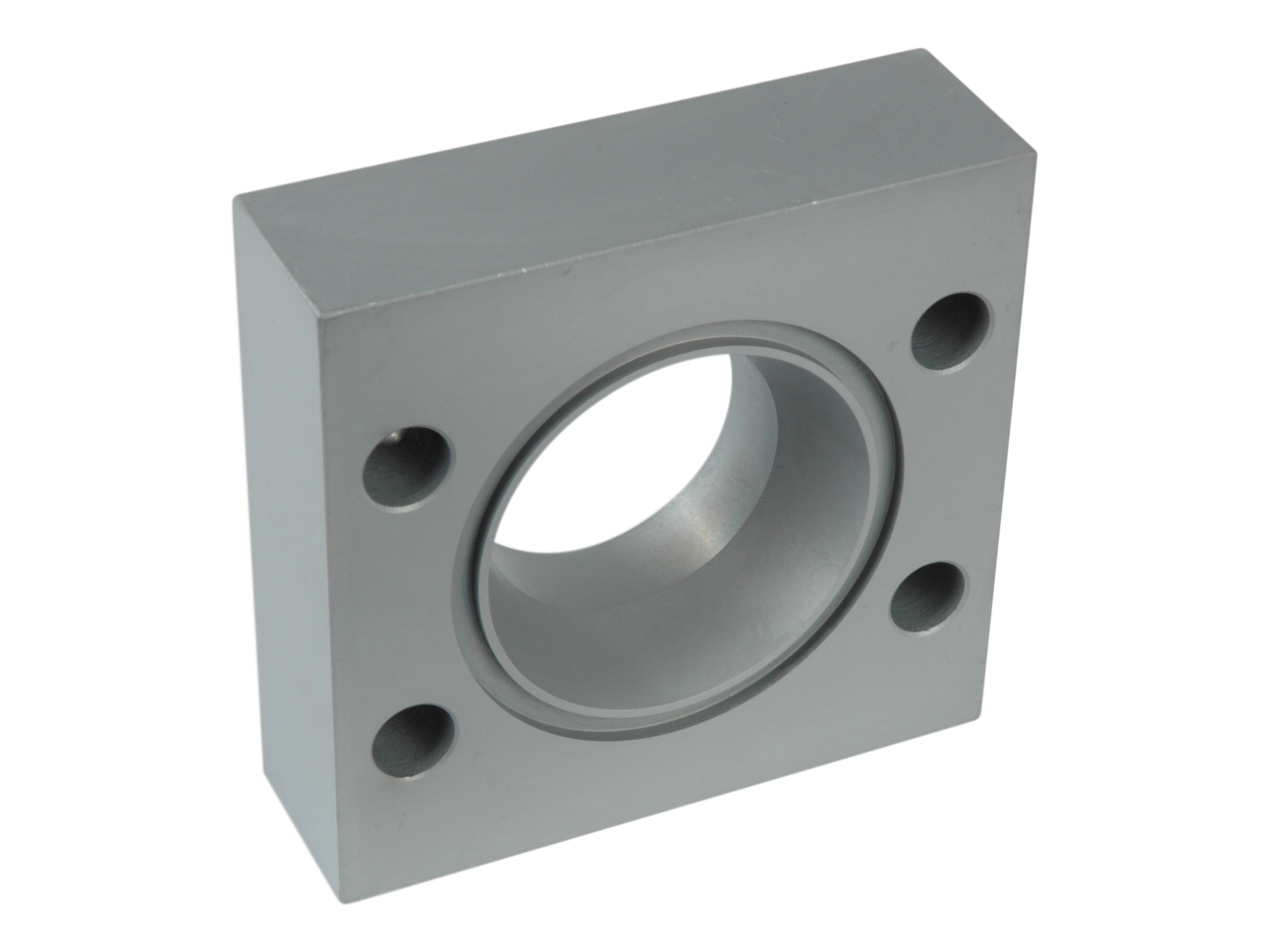

Reduction flange 2.1/2" x 2" SAE3000
Reduktions flange 2.1/2" x 2" SAE3000
Artikelnummer:
GAF307/306
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
Bolt dimension
M12x40 mm
Brand Name
Havit
Corrosion resistance
480 hours salt spray DIN EN 9227
Dimension C1
88.9 mm
Dimension E1
50.8 mm
Dimension E2
42.9 mm
Flange
2, 2.1/2 "
Flange SAE/DIN
3000 PSI
Material
Steel
Number of bolts
8
O-ring
56,75X3,53;69,44X3,53 mm
Pressure max.
175 bar
Shore
90
Standard ISO
ISO 6162-1
Standard SAE
SAE J518 Code 61
Surface treatment
Zinc-Nickel plated
Temperature max.
+90 °C
Temperature min.
-40 °C
Thread of bolt metric
M12
Förpackningsstorlek
0 pcs
Streckkod
5704334270744
Bruttovikt
2,47 Kg
Nettovikt
2,47 Kg
Ursprungsland
DEU
Intrastat artikelkod
73079100
Reduktions flange 2.1/2" x 2" SAE3000
