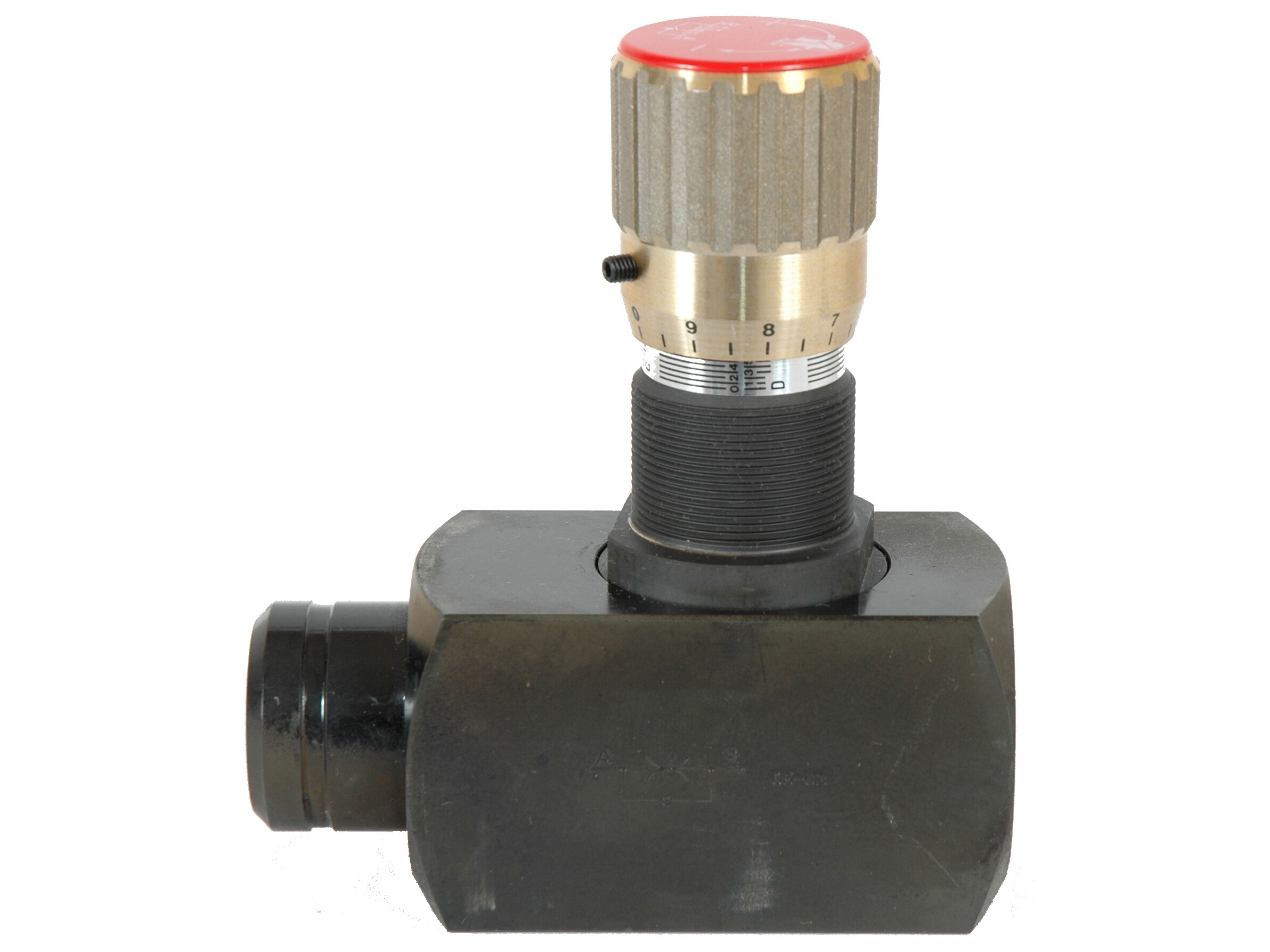

3/8 flow control valve Togn Pressure compensated
Pressure compensated flow control valve with regulated flow in one direction and free reverse flow.
Partnumber:
FT277/5-38
Package size:
0 pcs
Min. order quantity is:
1 pcs
Brand Name
Tognella
Dimension A
G 3/8 BSP
Dimension B
12.5 mm
Dimension C
112.5 mm
Dimension CH
50 mm
Dimension D
129.5 mm
Dimension E
32 mm
Dimension F
38 mm
Dimension G
27 mm
Dimension H metric
M30x1,5 mm
Dimension L
6 mm
Flow rate nominal LMin
30 lpm
Material
Steel
Pressure compensated
Yes
Pressure max.
320 bar
Sealing material
NBR
Temperature max.
+70 °C
Temperature min.
-20 °C
Thread
G 3/8 BSP
Valve type
Throttle/checkvalve
Förpackningsstorlek
0 pcs
Streckkod
5704295334271
Bruttovikt
1,70 Kg
Nettovikt
1,70 Kg
Ursprungsland
ITA
Intrastat artikelkod
84812010
Pressure compensated flow control valve with regulated flow in one direction and free reverse flow.
