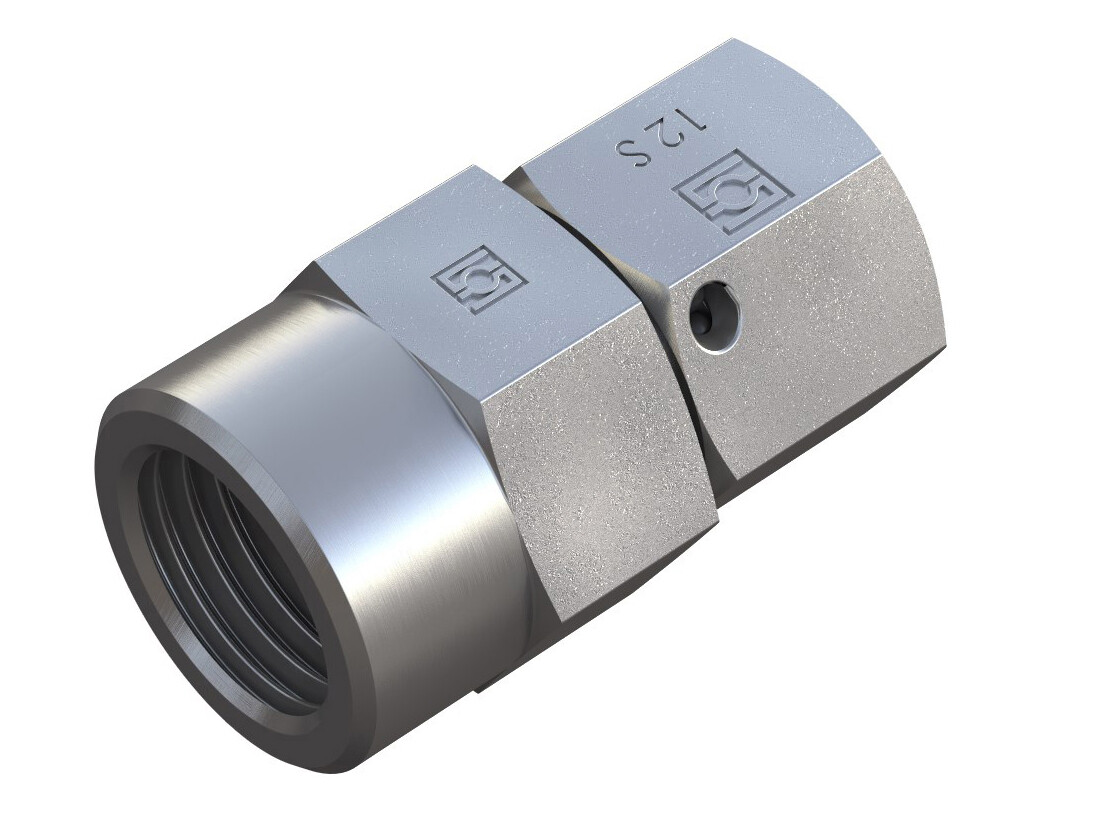

Manometer connector ø6 x1/4" with O-ring
Manometer påskruning - ø6L x 1/4" BSP indv - o-ringstætning
Partnumber:
FIEMAD06LR14
Package size:
1 pcs
Min. order quantity is:
1 pcs
Angle
0 °
Brand Name
Stauff
Corrosion resistance
1200 hours salt spray DIN EN ISO 9227
D3
3 mm
Diameter pipe
6 mm
L1
38,5 mm
L2
24 mm
L3
14,5 mm
L4
4,5 mm
Material
Steel
Model code
FI-EMAD-06LR-V-W3-DKI-DKO
Pressure max.
500 bar
REACH compliant
Yes
RoHs compliant
Yes
S1
19 mm
S2
14 mm
Safety factor
4
Sealing material
FKM/FPM (Viton®)
Series
L
Surface treatment
Zinc-Nickel plated
Temperature max.
+200 °C
Temperature min.
-25 °C
Thread T1
G 1/4 BSP
Thread inner
G 1/4 BSP
d1
6 mm
d2
5,5 mm
Package size
1 pcs
Barcode
5704334875406
Gross weight
Kg
Net weight
0,053 Kg
Country of origin
deu
Intrastat code
73071110
Manometer påskruning - ø6L x 1/4" BSP indv - o-ringstætning
