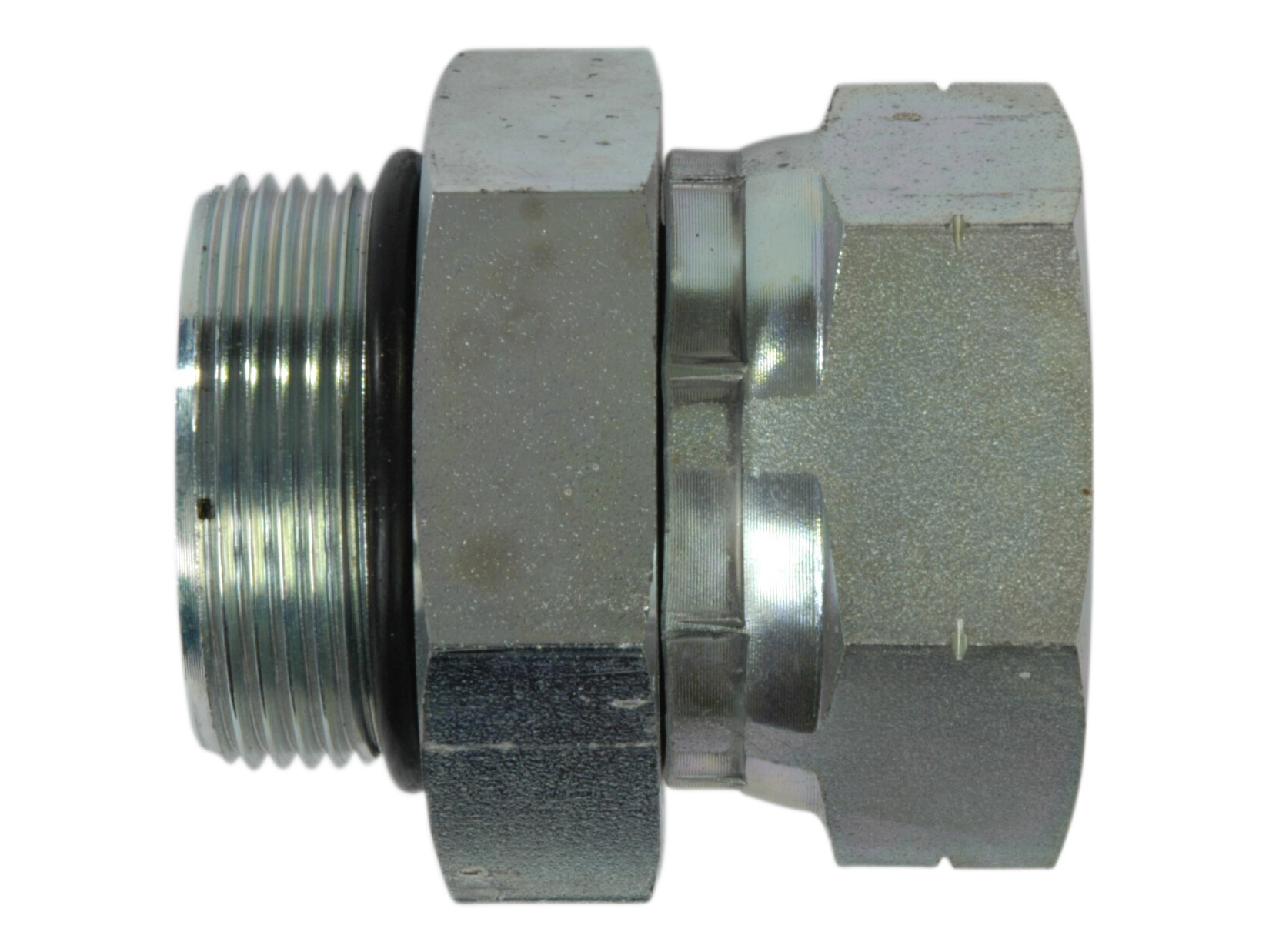

S180-38-48G adaptor with nut
S180-38-48G adaptor with nut
Partnumber:
FG-38-1.1/2
Package size:
0 pcs
Min. order quantity is:
1 pcs
Angle
0 °
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
38 mm
Dimension A
77 mm
Dimension B
38 mm
Dimension CH
60 mm
Dimension CH1
57 mm
Dimension D
19.5 mm
Dimension F
G 1.1/2 BSP
Dimension J
1.7/8-12 JIC
Dimension T
38 mm
Material
Steel
Pressure max.
250 bar
Surface treatment
Electro-galvanized / White chromatized
Thread inner
1.7/8-12 JIC
Thread outer
G 1.1/2 BSP
Package size
0 pcs
Barcode
5704334274483
Gross weight
0,66 Kg
Net weight
0,66 Kg
Country of origin
ITA
Intrastat code
73071110
S180-38-48G adaptor with nut
