Coupling male flatface FF - DN12 - 1/2"BSP female
Coupling male flatface FF - DN12 - 1/2"BSP female
Partnumber:
FF12-2-IGF08
Package size:
0 pcs
Min. order quantity is:
1 pcs
Brand Name
Stauff

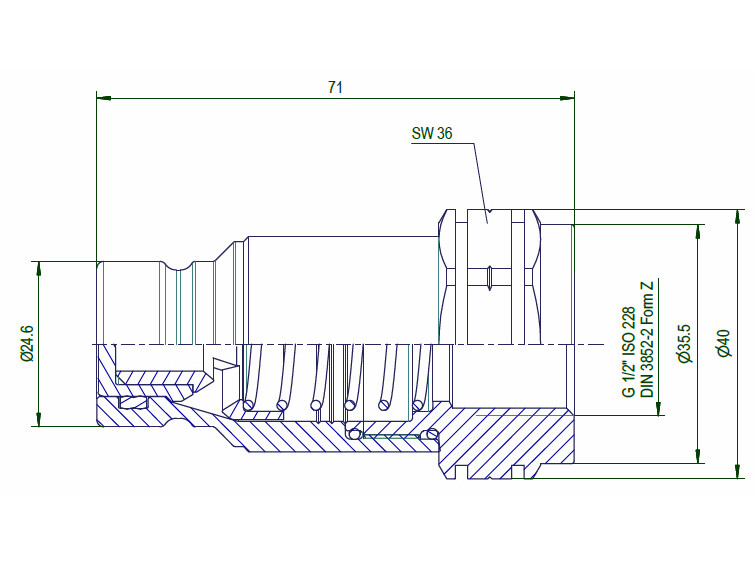

Dimension H
24.6 mm
Dimension L
71 mm
Dimension Y
36 mm
Flow rate nominal LMin
105 lpm
ISO size
12.5
Material
Steel
Model code
FF12-2-IGF08
Pressure burst min.
1400 bar
Pressure max.
350 bar
Sealing material
NBR
Size
1/2 "
Standard ISO
ISO 16028
Surface treatment
Zinc-Nickel plated
Temperature max.
+100 °C
Temperature min.
-25 °C
Thread inner
G 1/2 BSP
Package size
0 pcs
Barcode
5704334608202
Gross weight
0,26 Kg
Net weight
0,26 Kg
Country of origin
DEU
Intrastat code
84812010
Coupling male flatface FF - DN12 - 1/2"BSP female
