Riktningsventil SUN T-13A 2/2 NO

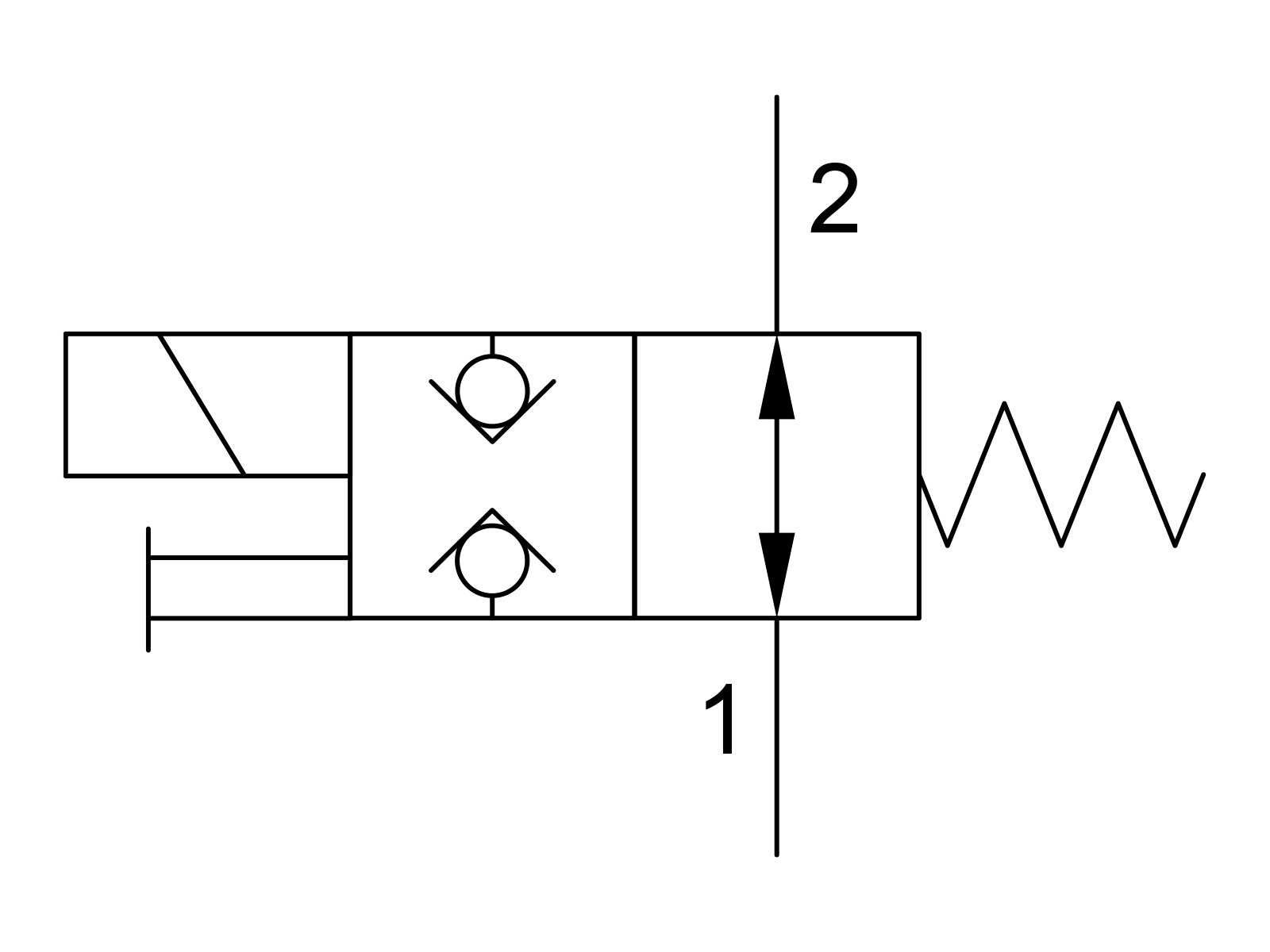

This solenoid-operated 2-way, 2-position cartridge valve is a direct-acting, poppet-style directional valve. The valve is available in either a normally open or normally closed configuration and is designed to be used with 740 and 747 Series coils. Due to the poppet style construction, this valve has extremely low leakage.
Partnumber:
DTDF-MHN
Package size:
0 pcs
Min. order quantity is:
1 pcs
Aktivering
Manual override, Solenoid
Antal väger/positioner
2/2
Flödeshastighet nominell LMin
40 lpm
Föroreningsgrad max.
15/13/11 - ISO 4406
Kavitet
T-13A
Manuellt styrd
Yes
Modell kod
DTDFMHN
Märke namn
Sun Hydraulics
Oljeviskositet rekommanderad
2,8 - 380 cSt
Packningsmaterial
NBR
Temperatur max.
+110 °C
Temperatur min.
-30 °C
Tryck max.
350 bar
Ventiltyp
NO - Normally open
Åtdragning moment
41 - 47 Nm
Package size
0 pcs
Barcode
5715803521250
Gross weight
0,30 Kg
Net weight
0,30 Kg
Country of origin
usa
This solenoid-operated 2-way, 2-position cartridge valve is a direct-acting, poppet-style directional valve. The valve is available in either a normally open or normally closed configuration and is designed to be used with 740 and 747 Series coils. Due to the poppet style construction, this valve has extremely low leakage.
