    • DKE-1711-X24-DC Atos solenoid valve cetop5

    DKE-1711-X24-DC Atos solenoid valve cetop5

    DKE-1711-X24-DC Atos solenoid valve cetop5

    Artikelnummer:
    DKE1711-H
    Förpackningsstorlek:
    1 pcs
    Minsta beställningskvantitet:
    1 pcs
    Sensor-/actuator cable - SAC-3P- 3.0-PUR/A-1L-Z
    Varenummer: 1434992
    Black DIN-connector A 2-pin
    Varenummer: C28200N0R
    Plastic nut DKE valve
    Varenummer: SET3-M200027
    24Vdc coil DKE 36w
    Varenummer: SPCAE24DC
    Activation
    Manual emergency override, Solenoid
    Brand Name
    Atos
    Contamination level max.
    20/18/15 - ISO 4406
    Current type
    DC
    Flow rate nominal LMin
    150 lpm
    Model code
    DKE-1711-X24-DC
    NG ISO-size
    NG10

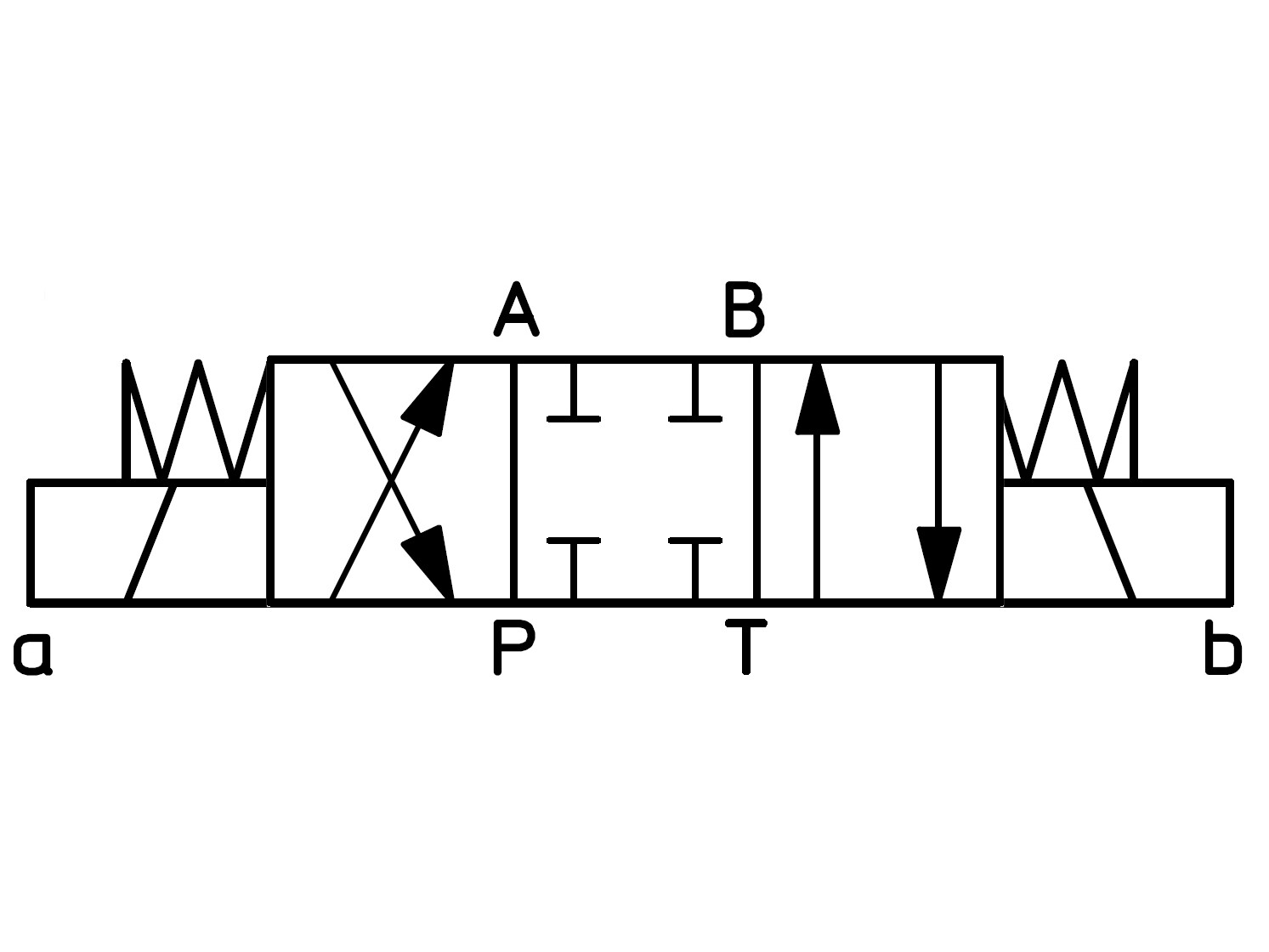

    Number of ways/positions
    4/3
    Oil viscocity recommended
    15 - 100 cSt
    Plug type
    DIN EN 175301-803 Form A
    Pressure T max.
    210 bar
    Pressure max.
    350 bar
    Standard ISO
    ISO 4401
    Temperature max.
    +80 °C
    Temperature min.
    -20 °C
    Torque tightening
    15 Nm
    Voltage
    24 V
    Pakke str.
    1 pcs
    Stregkode
    5704295996714
    Brutto vægt
    6,11 Kg
    Netto vægt
    6,11 Kg
    Oprindelsesland
    ITA
    Intrastat varekode
    84812010

    DKE-1711-X24-DC Atos solenoid valve cetop5

    Technical data
