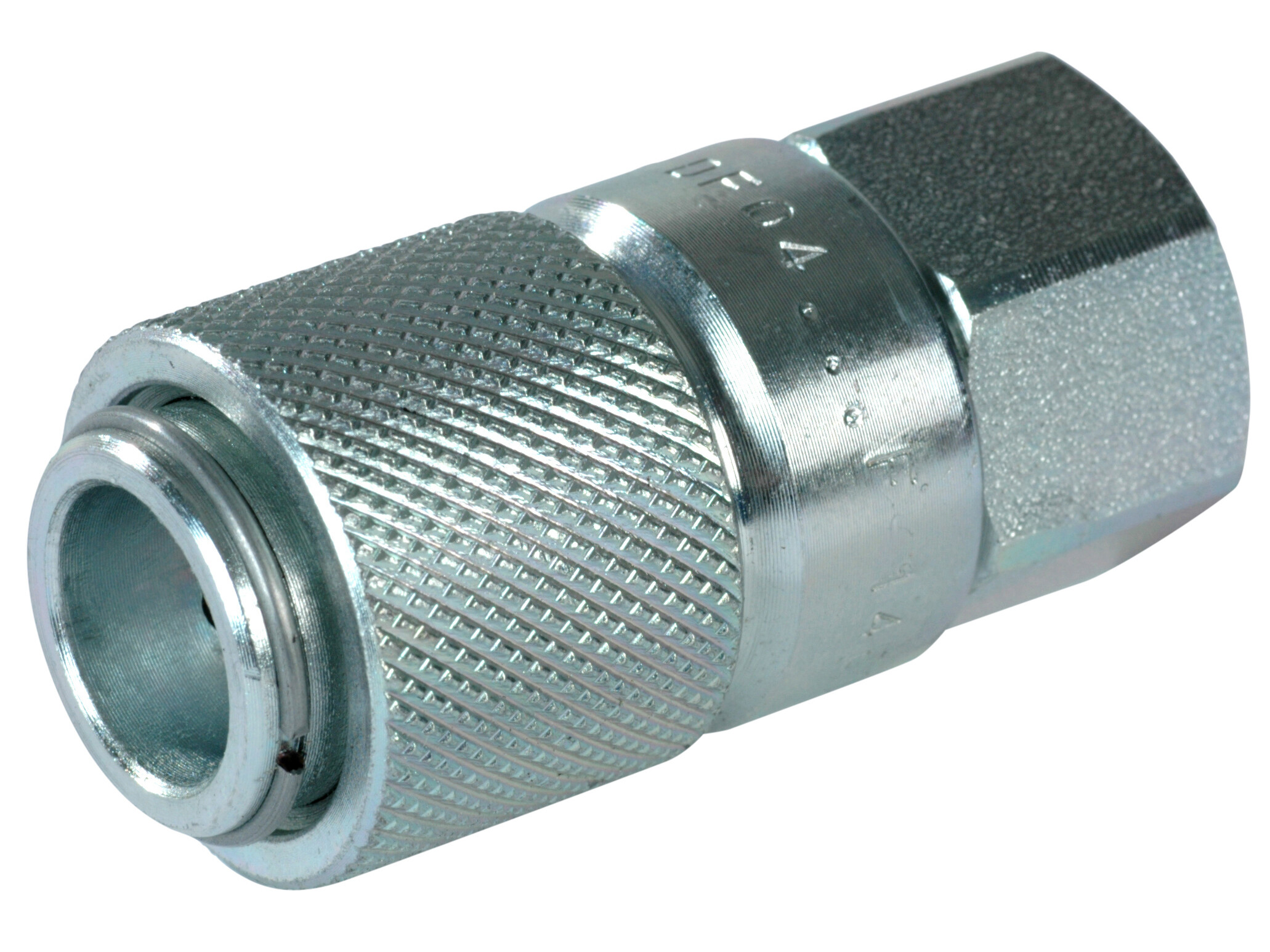

Female coupling Faster test ISO 15171-1, female 1/4 NPT
Female coupling Faster test ISO 15171-1, female 1/4 NPT
Partnumber:
DF0414NPTF
Package size:
0 pcs
Min. order quantity is:
1 pcs
Brand Name
Faster
Connection
Push
D1
24 mm
D3
12,55 mm
Disconnection
Sleeve Retraction
Flowrate nominal LMin
2 lpm
Force To Connect
70 N
HEX 1
21 mm
Hexagon
21 mm
L1
50 mm
Material
Steel
Model code
DF 04-14NPT F
Pressure burst min.
1500 bar
Pressure max.
470 bar
Sealing material
NBR
Size
6.3 mm
Size
1/4 "
Size nominal
04
Spillage
0,01 ml
Standard ISO
ISO 15171-1
Standard SAE
SAE J1502
Surface treatment
MATE 500 (CrIII)
Temperature max.
+125 °C
Temperature min.
-25 °C
Thread inner
1/4 "NPTF
Thread inner
1/4 NPT
Working Pressure
470 bar
Working Pressure
47 MPa
Package size
0 pcs
Barcode
5704334439202
Gross weight
0,11 Kg
Net weight
0,11 Kg
Country of origin
ITA
Intrastat code
84812010
Female coupling Faster test ISO 15171-1, female 1/4 NPT
