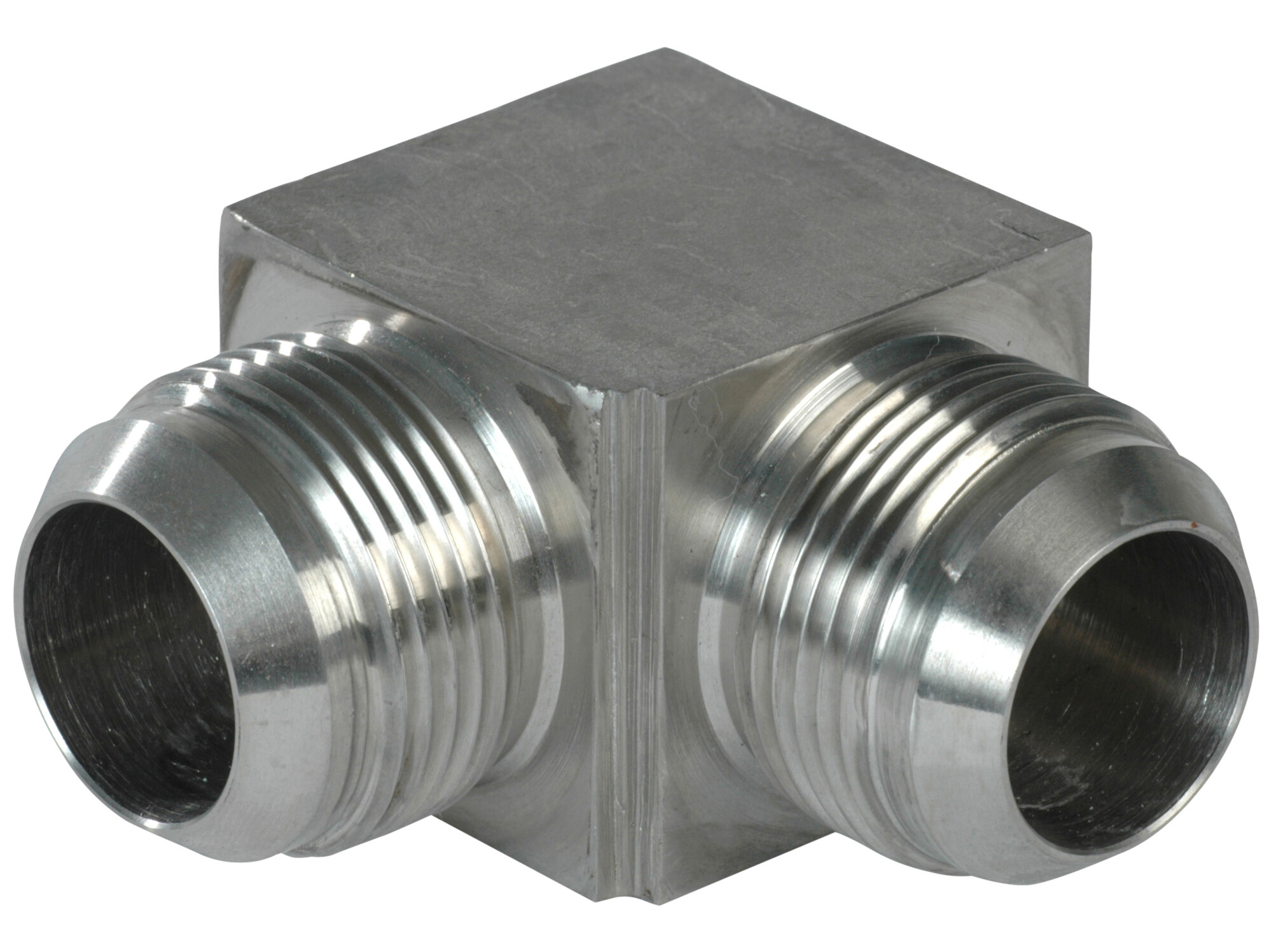

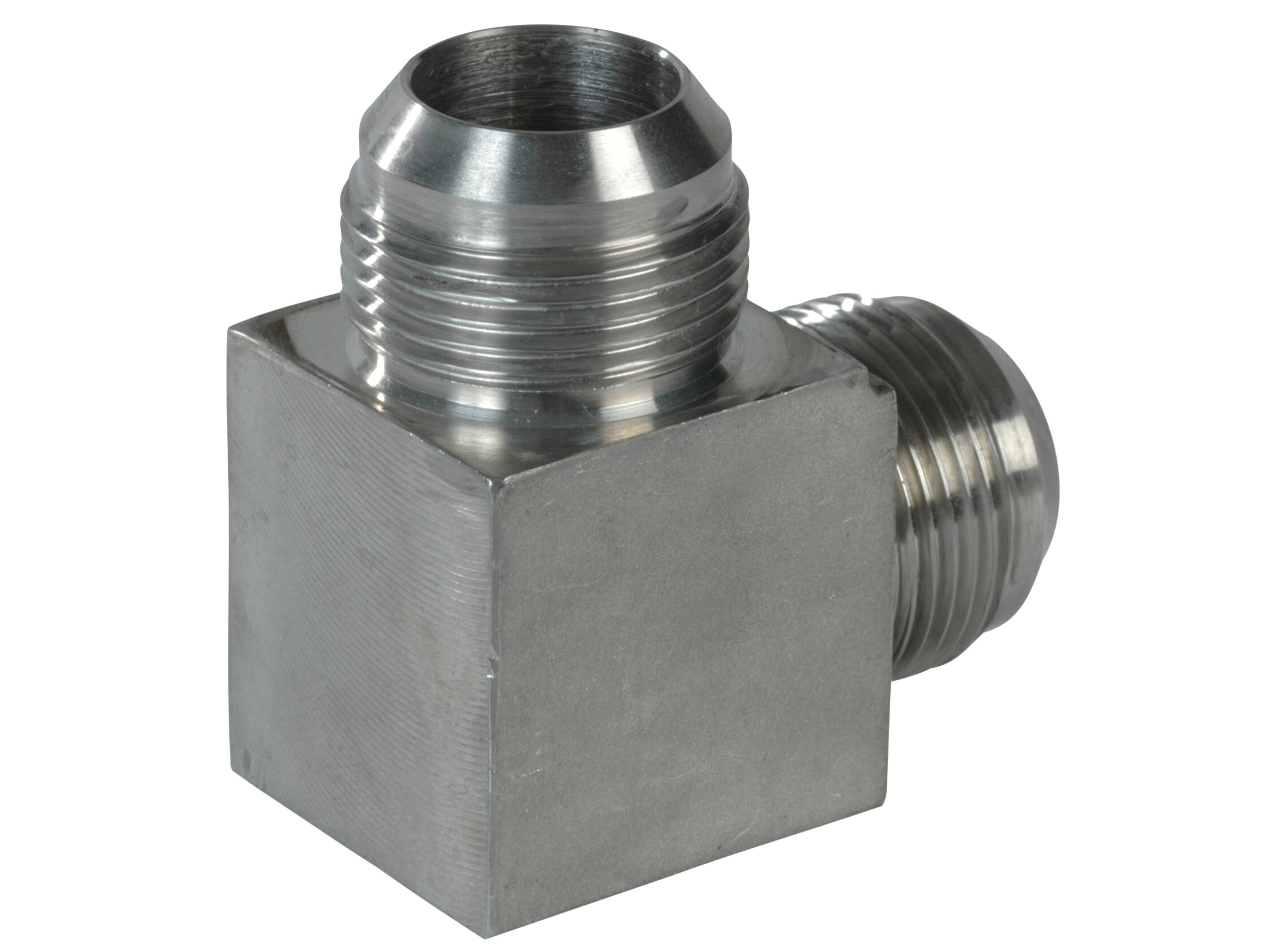

Elbow 08mm AISI316
Temperature/pressure reduction:
-60°C - +20°C = 0%.
+20°C - +50°C = 4%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Partnumber:
CU-08/71
Package size:
0 pcs
Min. order quantity is:
1 pcs
Angle
90 °
Brand Name
Hydraspecma
Diameter pipe
8 mm
Dimension B
24 mm
Dimension C
6 mm
Dimension L
24 mm
Material
Stainless steel
Material quality
AISI 316L
Pressure max.
700 bar
Thread outer
1/2-20 JIC
Package size
0 pcs
Barcode
5704295451268
Gross weight
0,05 Kg
Net weight
0,05 Kg
Country of origin
ESP
Intrastat code
73072910
Temperature/pressure reduction:
-60°C - +20°C = 0%.
+20°C - +50°C = 4%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
