Press. relief valve for mr5*
Cp201-1, Relief Valve, Differential Area, Poppet Type

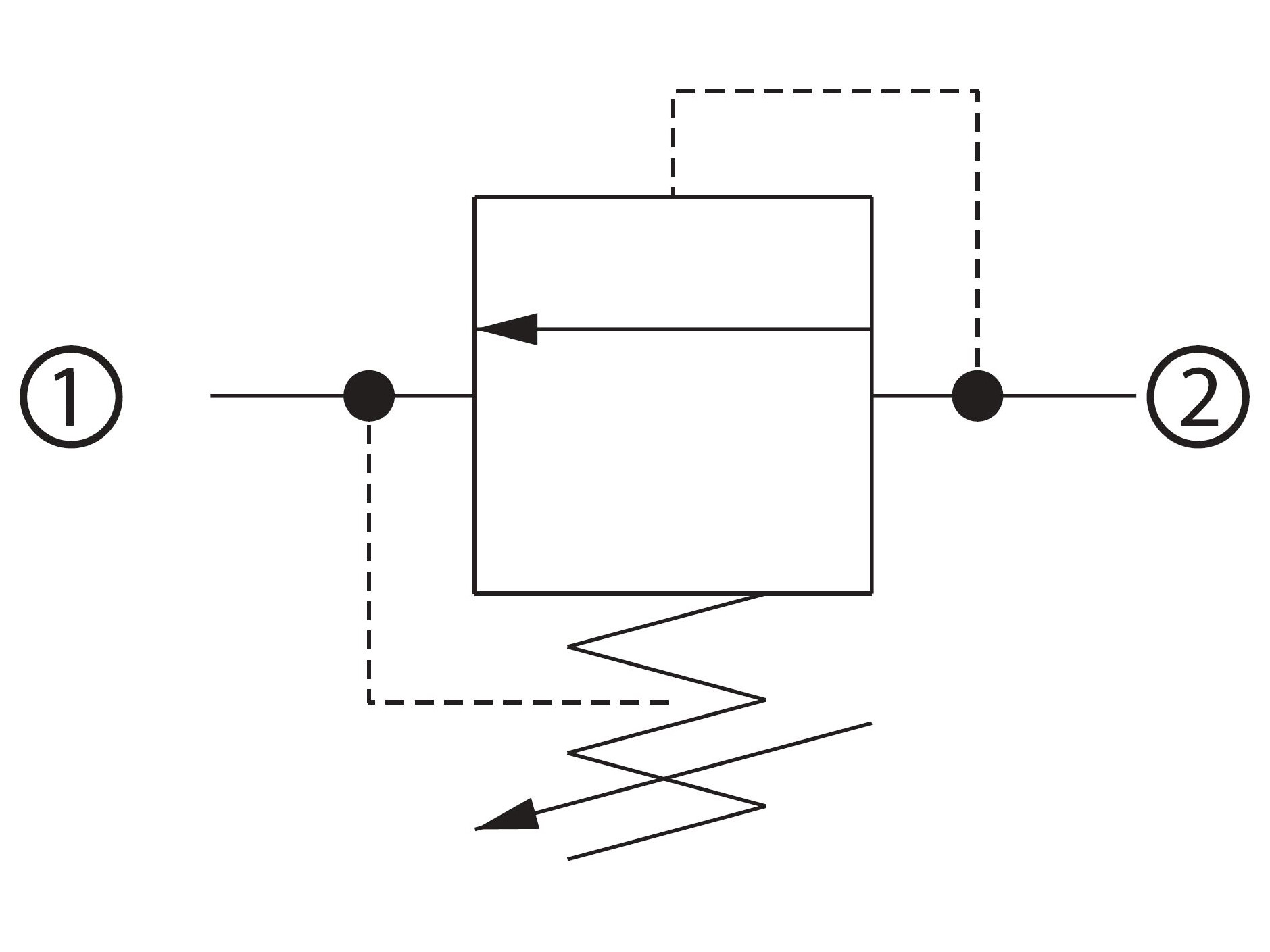

This is a fast acting, differential area, poppet type relief valve that relieves from port 2 to 1. It can be used to protect an actuator from over-pressurization or to remove pressure spikes.
Artikelnummer:
CP2011B0AC
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
Flödeshastighet nominell LMin
150 lpm
Föroreningsgrad max.
20/18/14 - ISO 4406
Kavitet
CP12-2
Modell kod
CP201-1-B-0-A-C-XXX
Märke namn
Danfoss
Nyckelstorlek
32 mm
Oljeviskositet rekommanderad
12 - 54 cSt
Packningsmaterial
NBR
Tryck max.
250 bar
Tryckinställning max.
248 bar
Tryckinställning min.
35 bar
Åtdragning moment
68 - 75 Nm
Pakke str.
0 pcs
Stregkode
5704334052715
Brutto vægt
0,87 Kg
Netto vægt
0,87 Kg
Oprindelsesland
Intrastat varekode
84812010
Cp201-1, Relief Valve, Differential Area, Poppet Type
This is a fast acting, differential area, poppet type relief valve that relieves from port 2 to 1. It can be used to protect an actuator from over-pressurization or to remove pressure spikes.
