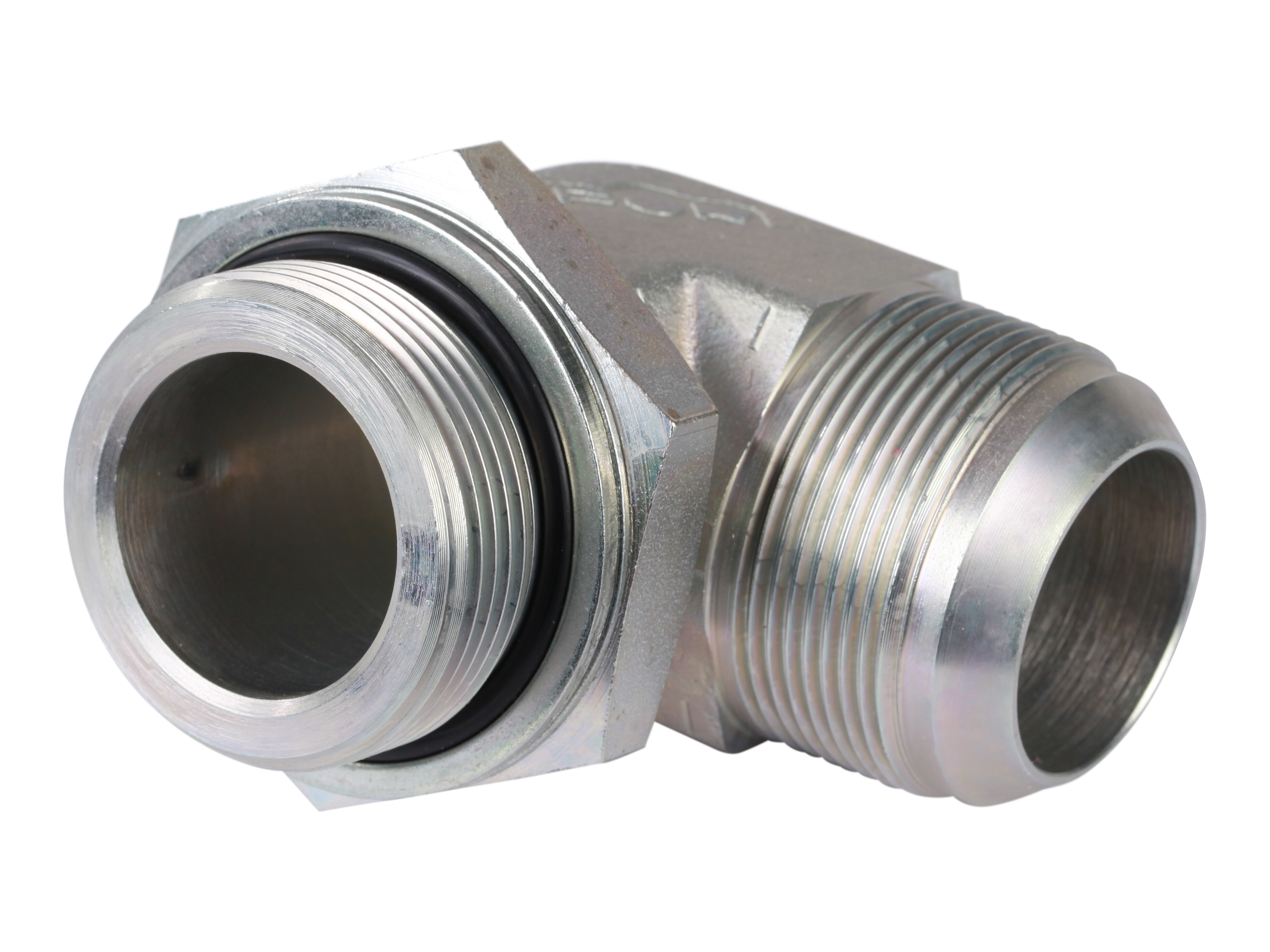

S600-38-48G elbow

Varenummer:

CO-38-1.1/2

Pakke str.:

0 pcs

Min. bestillingsenhed er:

1 pcs

Tilbehør (1)

Mutter, UNF-1 7/8''-12

Partnumber: JM-24-38

Specifications
Dimensions and shipping

Angle

90 °

Brand Name

FOR

Corrosion resistance

1400 hours salt spray DIN EN ISO 9227

Diameter pipe

38 mm

Dimension B

59 mm

Dimension C

61.5 mm

Dimension CH

60 mm

Dimension F

G 1.1/2 BSP

Dimension J

1.7/8-12 JIC

Dimension T

38 mm

Material

Steel

Pressure max.

180 bar

Surface treatment

Electro-galvanized / White chromatized

Thread outer

1.7/8-12 JIC

Thread outer

G 1.1/2 BSP

Package size

0 pcs

Barcode

5704334357742

Gross weight

0,91 Kg

Net weight

0,91 Kg

Country of origin

ITA

Intrastat code

73071110

Product information
Measure sketch

S600-38-48G elbow

Note: Opening 3D files requires a program that supports the file format
