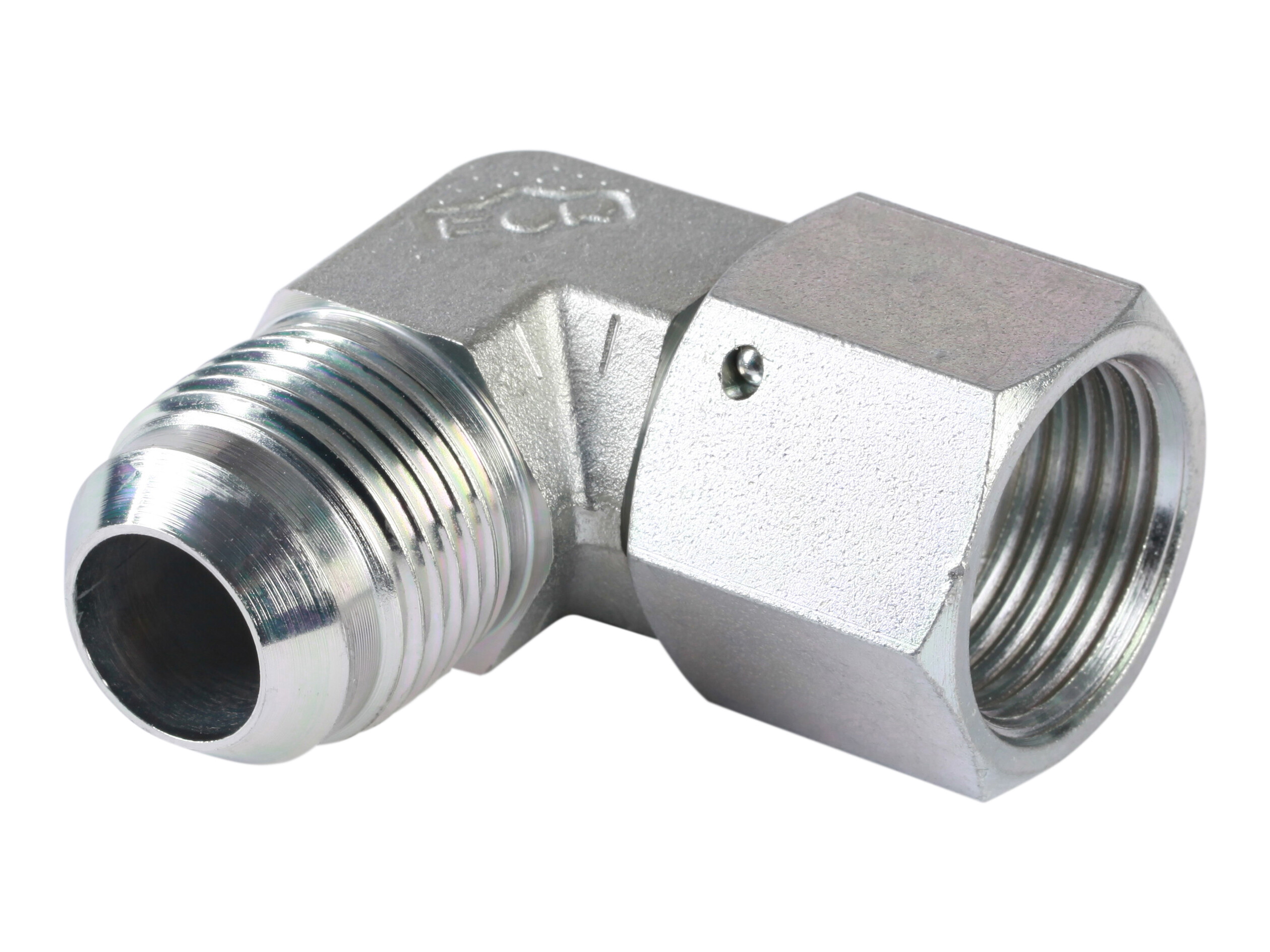

S675-20LG elbow with nut

\ufeff

JIC 37° 90° external/internal thread directional angle connector

Partnumber:

CG-20

Package size:

0 pcs

Min. order quantity is:

1 pcs

Specifications
Dimensions and shipping

Angle

90 °

42 mm

Brand Name

FOR

45,5 mm

32 mm

Corrosion resistance

1400 hours salt spray DIN EN ISO 9227

Diameter pipe

20 mm

Dimension J1

1.1/16-12 JIC

Material

Steel

Pressure max.

300 bar

Surface treatment

Electro-galvanized / White chromatized

20 mm

Thread inner

1.1/16-12 JIC

Thread outer

1.1/16-12 JIC

Package size

0 pcs

Barcode

5704334064145

Gross weight

0,27 Kg

Net weight

0,27 Kg

Country of origin

ITA

Intrastat code

73071110

Product information
Measure sketch

\ufeff

JIC 37° 90° external/internal thread directional angle connector

Note: Opening 3D files requires a program that supports the file format
