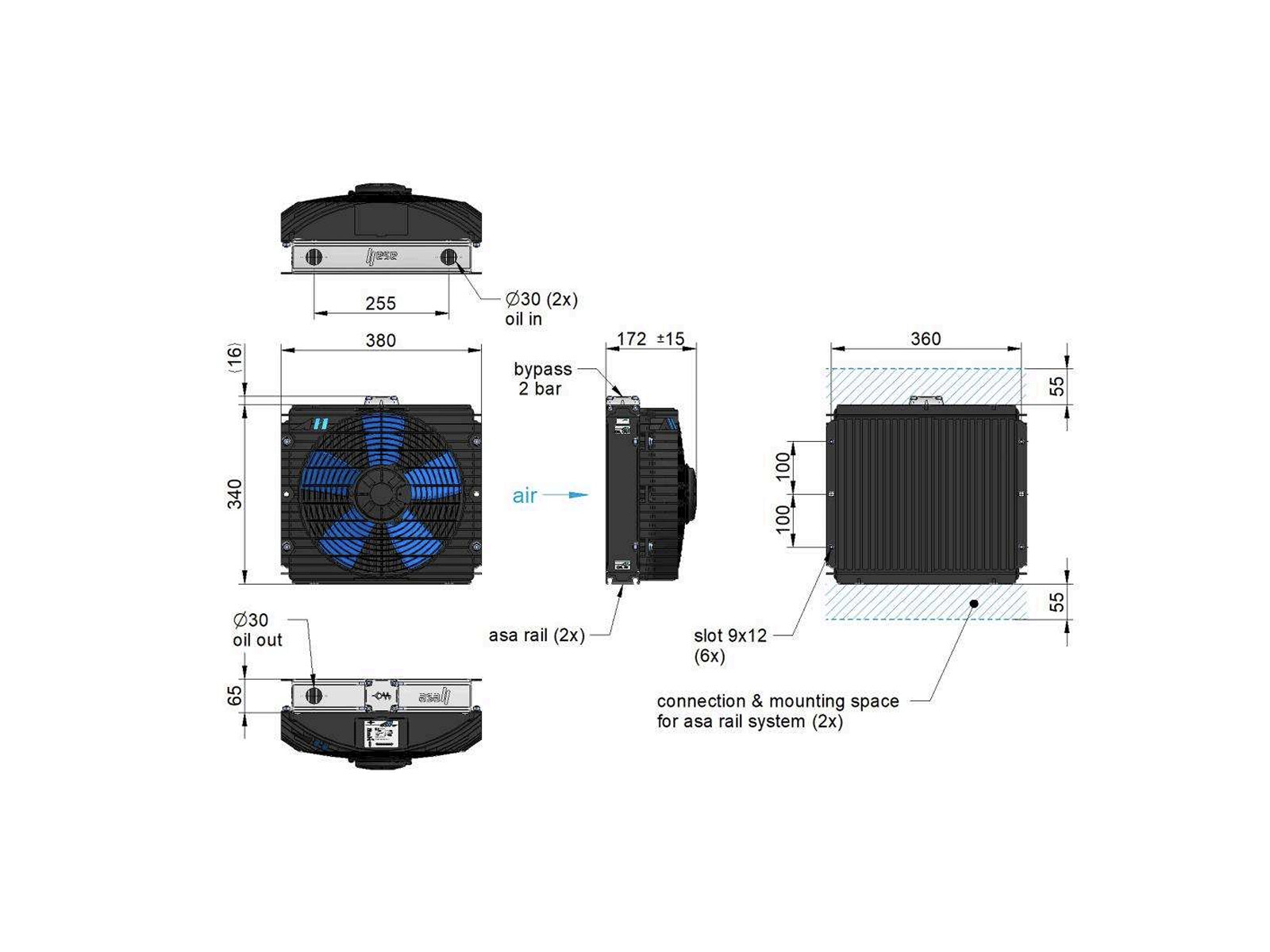

Oil-Air cooler TT 11 rail 12VDC w. thermal and press.by-pass
Oil-Air cooler TT 11 rail 12VDC w. thermal and press.by-pass
Partnumber:
ASATT11RD01BT
Package size:
0 pcs
Min. order quantity is:
1 pcs
Brand Name
ASA
By-pass valve
Yes

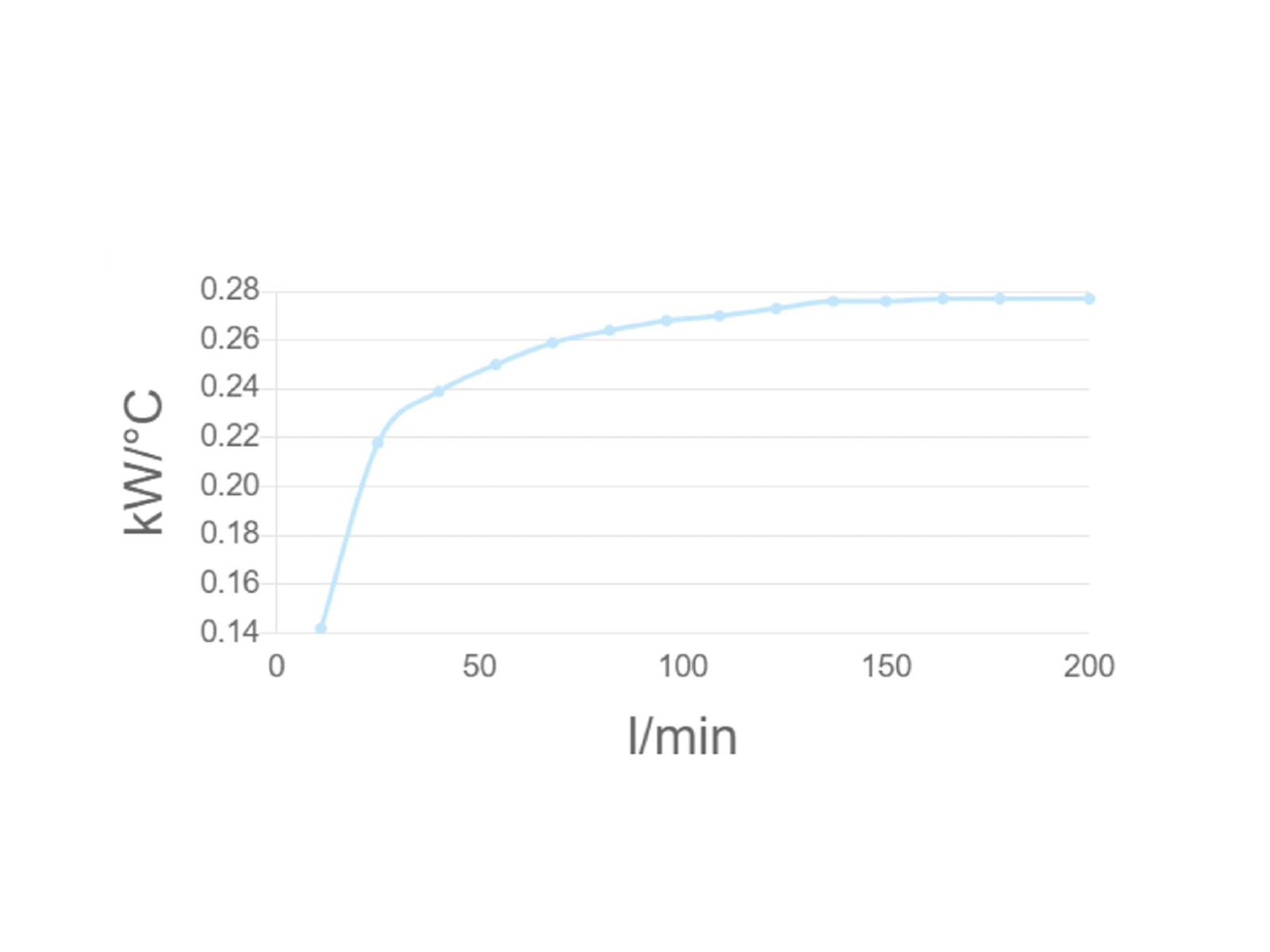

Cooling efficiency
0.28 kW/°C
Current type
DC
Depth
172 mm
Flow rate nominal LMin
150 lpm
Height
340 mm
Material
Aluminium
Model code
ASATT11RD01BT
Noise level
77 dB-A
Pressure max.
26 bar
Pressure static max.
26 bar
Temperature ambient max.
+80 °C
Temperature ambient min.
-20 °C
Temperature working fluid max.
+80 °C
Voltage
12 V
Width
380 mm
Förpackningsstorlek
0 pcs
Streckkod
5715803522561
Bruttovikt
Kg
Nettovikt
9,20 Kg
Ursprungsland
aut
Intrastat artikelkod
84186900
Oil-Air cooler TT 11 rail 12VDC w. thermal and press.by-pass
