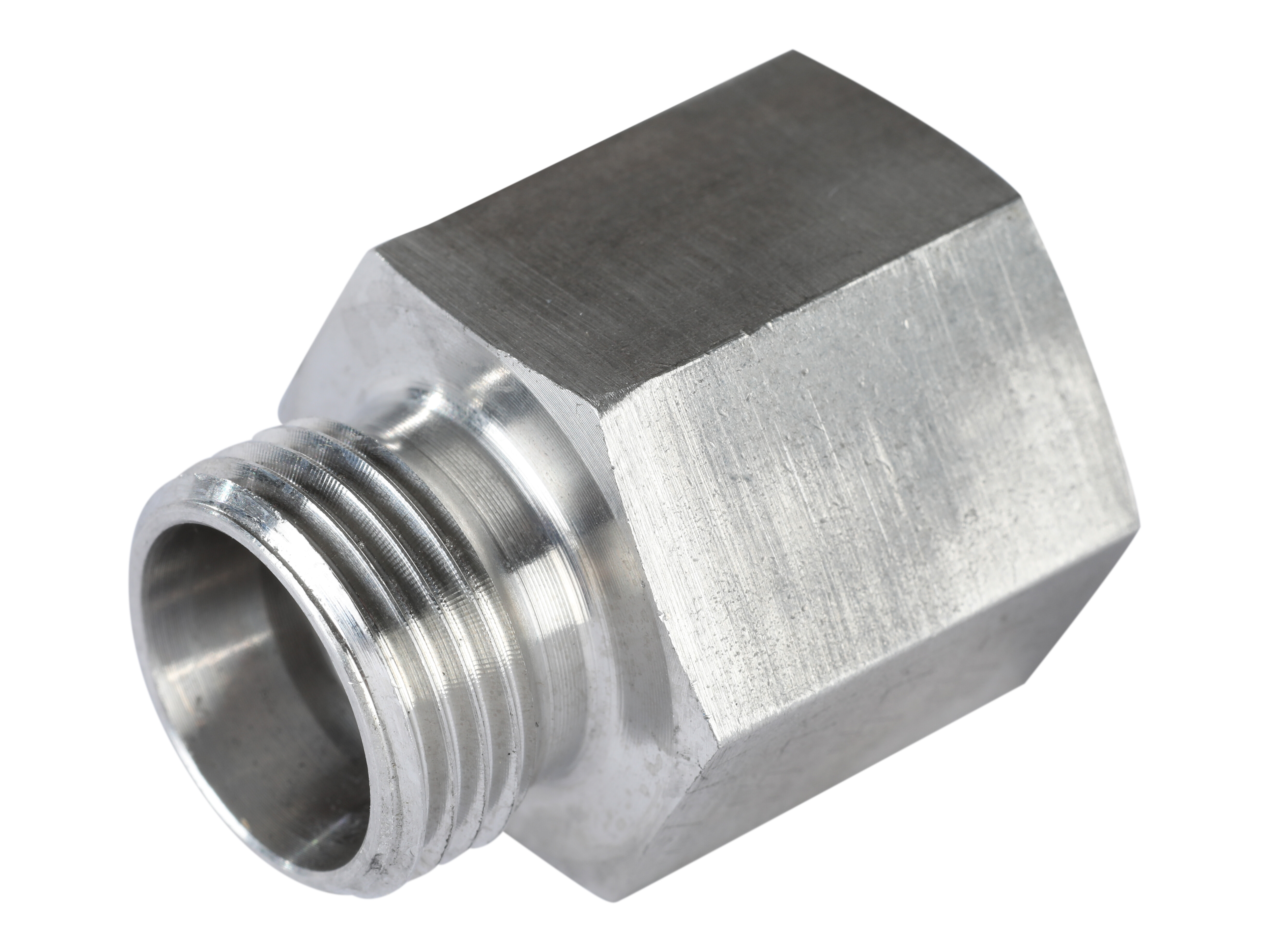

Stud fitting female - ø06 M10x1" - AISI316
Temperature/Pressure reductions:
-60°C° - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Varenummer:
AI06LM10X/71
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
Angle
0 °
Brand Name
Volz
Diameter pipe
6 mm
Dimension D1
6 mm
Dimension D2
4 mm
Dimension L1
34.5 mm
Dimension L2
26.5 mm
Dimension L3
19.5 mm
Dimension S1
14 mm
Dimension S2
14 mm
Dimension i1
12.5 mm
Material
Stainless steel
Material quality
1.4571 / AISI316Ti
Model code
XGAIV 06 LM 10x1
Pressure max.
315 bar
REACH compliant
Yes
RoHs compliant
Yes
Safety factor
4
Series
L
Temperature max.
+120 °C
Temperature min.
-40 °C
Thread T1
M12x1,5
Thread T2
M10x1 mm
Thread inner metric
M10x1
Thread outer metric
M12x1,5
Package size
0 pcs
Barcode
5704295909561
Gross weight
0,09 Kg
Net weight
0,09 Kg
Country of origin
DEU
Intrastat code
73072910
Temperature/Pressure reductions:
-60°C° - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
