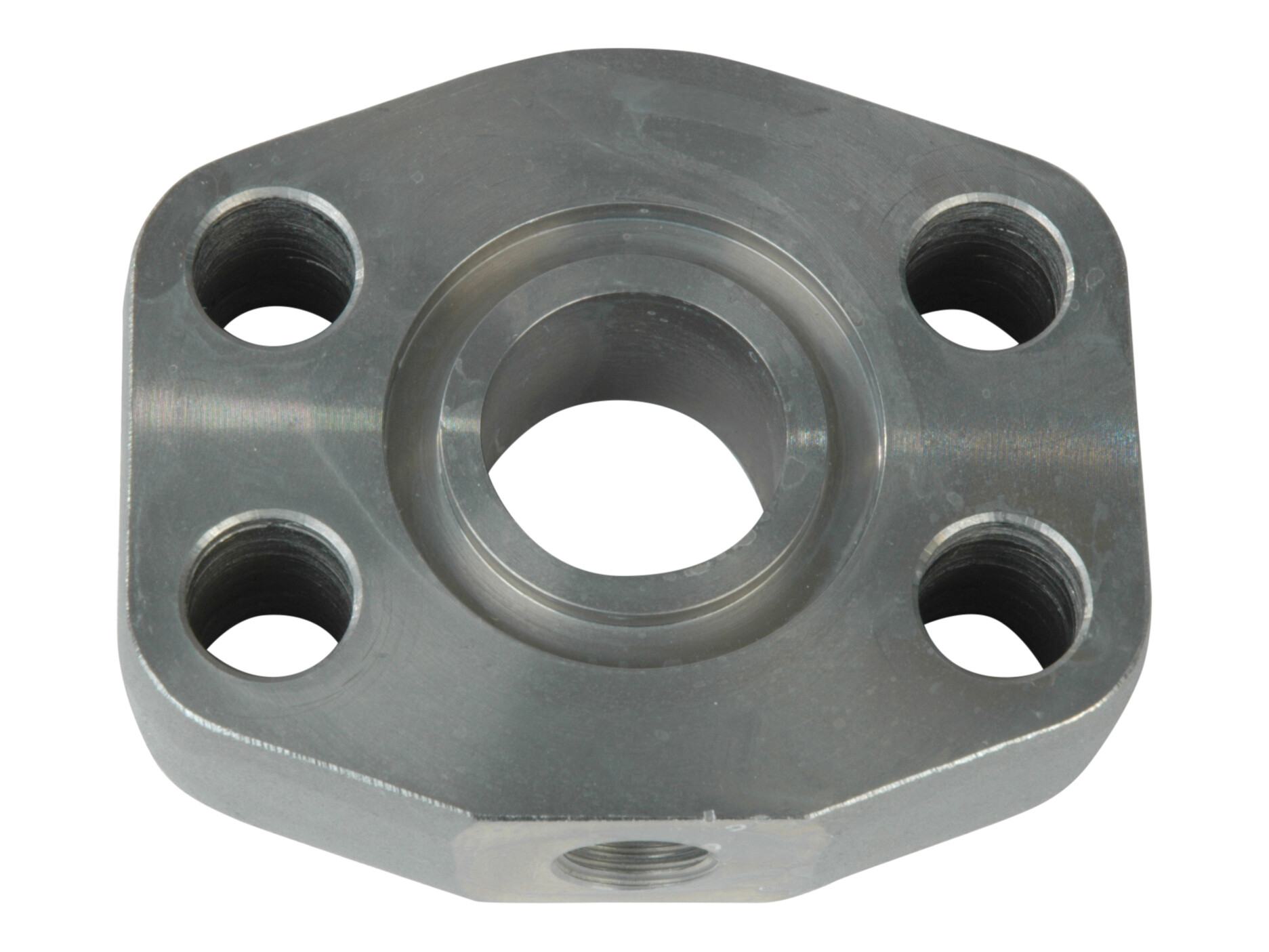

Adapter flange w. test point 1" SAE6000
Adapter flange w. test point 1" SAE6000
Partnumber:
AGL403
Package size:
0 pcs
Min. order quantity is:
1 pcs
Brand Name
Havit
Corrosion resistance
480 hours salt spray DIN EN 9227
Dimension C
57.2 mm
Dimension E
27.8 mm
Flange
1 "
Flange SAE/DIN
6000 PSI
Material
Steel
Material thickness
23 mm
Number of bolts
4
O-ring
32.93X3.53 mm
Pressure max.
420 bar
Shore
90
Standard ISO
ISO 6162-2
Standard SAE
SAE J518 Code 62
Surface treatment
Zinc-Nickel plated
Temperature max.
+90 °C
Temperature min.
-40 °C
Thread inner
G 1/4 BSP
Förpackningsstorlek
0 pcs
Streckkod
5704295930862
Bruttovikt
0,75 Kg
Nettovikt
0,75 Kg
Ursprungsland
DEU
Intrastat artikelkod
73079100
Adapter flange w. test point 1" SAE6000
