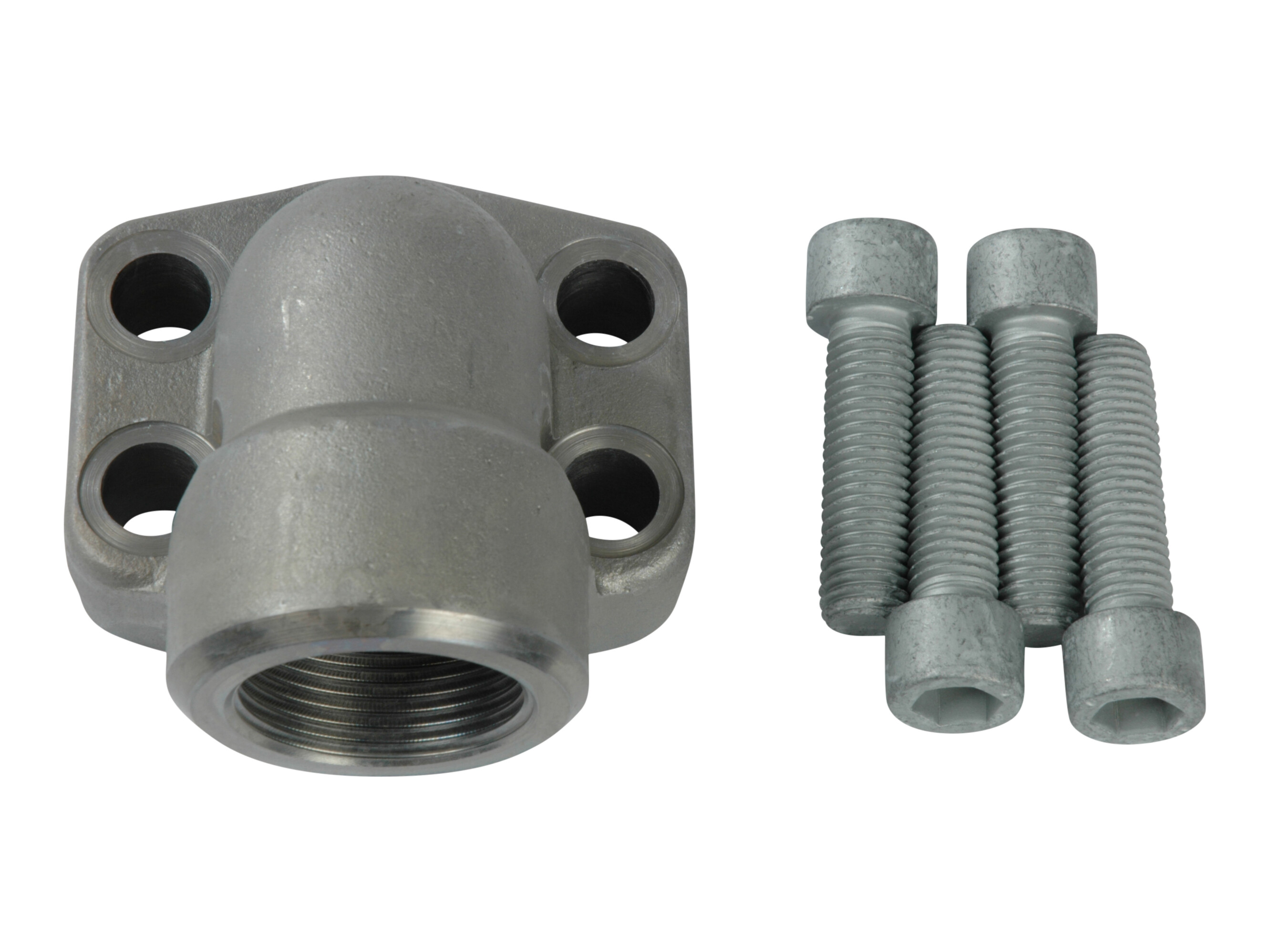

Flange 90° 1.1/4" SAE6000 x 1.1/4" BSP - complete
Flange 90° 1.1/4" SAE6000 x 1.1/4" BSP - complete
Partnumber:
AFS404/90GM
Package size:
0 pcs
Min. order quantity is:
1 pcs
Angle
90 °
Bolt dimension
M14x50 mm
Brand Name
Havit
Corrosion resistance
480 hours salt spray DIN EN 9227
Diameter flange
54 mm
Dimension C
66.6 mm
Dimension E
31.8 mm
Flange
1.1/4 "
Flange SAE/DIN
6000 PSI
Material
Steel
Number of bolts
4
O-ring
37.69X3.53 mm
Pressure max.
420 bar
Sealing material
NBR
Shore
90
Standard ISO
ISO 6162-2
Standard SAE
SAE J518 Code 62
Surface treatment
Zinc-Nickel plated
Temperature max.
+90 °C
Temperature min.
-40 °C
Thread inner
G 1.1/4 BSP
Package size
0 pcs
Barcode
5704295921501
Gross weight
1,45 Kg
Net weight
1,45 Kg
Country of origin
DEU
Intrastat code
73079100
Flange 90° 1.1/4" SAE6000 x 1.1/4" BSP - complete
