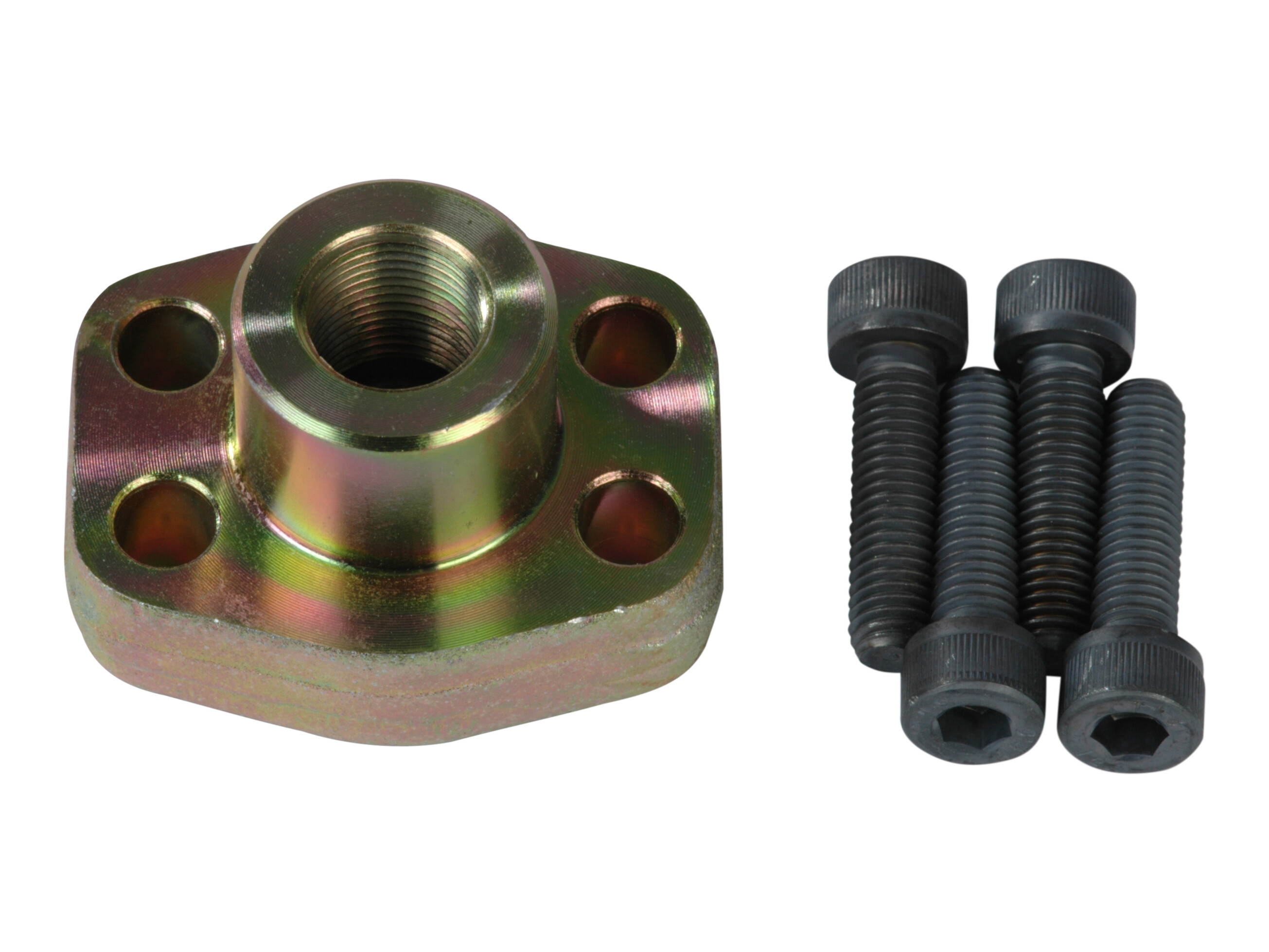

Threaded flange 1/2" SAE6000 x 3/8" BSP - complete
Threaded flange 1/2" SAE6000 x 3/8" BSP - complete
Varenummer:
AFS401G-038M
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
Angle
0 °
Bolt dimension
M8x30 mm
Brand Name
Havit
Corrosion resistance
480 hours salt spray DIN EN 9227
Diameter flange
31.8 mm
Dimension C
40.5 mm
Dimension E
18.2 mm
Flange
1/2 "
Flange SAE/DIN
6000 PSI
Material
Steel
Number of bolts
4
O-ring
18.64X3.53 mm
Pressure max.
420 bar
Sealing material
NBR
Shore
90
Standard ISO
ISO 6162-2
Standard SAE
SAE J518 Code 62
Surface treatment
Zinc-Nickel plated
Temperature max.
+90 °C
Temperature min.
-40 °C
Thread inner
G 3/8 BSP
Package size
0 pcs
Barcode
5704295921426
Gross weight
0,28 Kg
Net weight
0,28 Kg
Country of origin
DEU
Intrastat code
73079100
Threaded flange 1/2" SAE6000 x 3/8" BSP - complete
