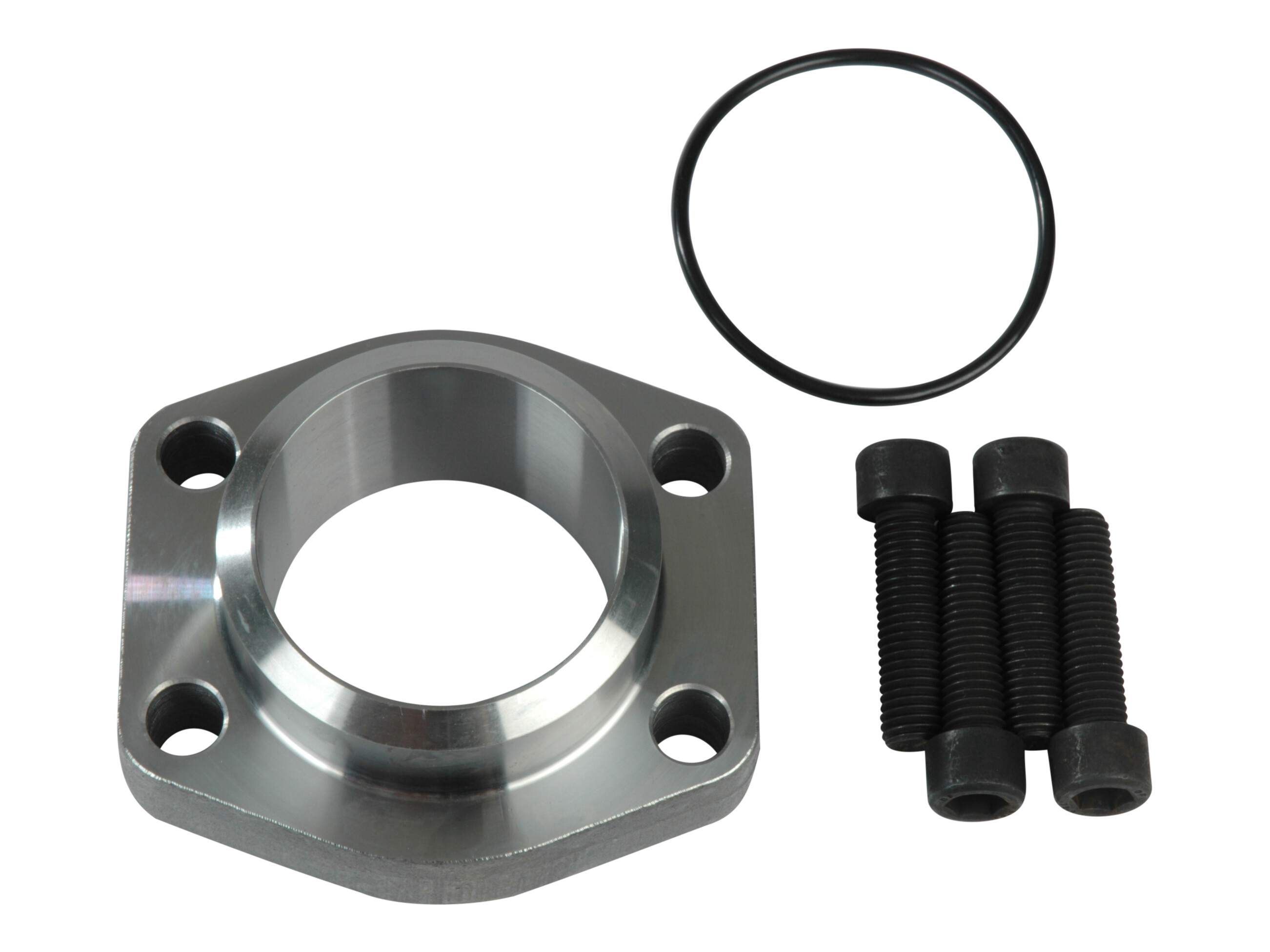

Butt weld flange 2.1/2" SAE3000 - complete

Butt weld flange 2.1/2" SAE3000 - complete

Butt weld flange 2.1/2" SAE3000 - complete

Butt weld flange 2.1/2" SAE3000 - complete

Butt weld flange 2.1/2" SAE3000 - complete

Varenummer:

AFS110ST-M

Pakke str.:

0 pcs

Min. bestillingsenhed er:

1 pcs

Spare parts (1)

O-ring 90S

Partnumber: 69.44X3.53S

Specifications
Dimensions and shipping

Bolt dimension

M12x45 mm

Brand Name

Havit

Diameter flange

84.1 mm

Dimension C

88.9 mm

Dimension E

50.8 mm

Flange

2.1/2 "

Flange SAE/DIN

3000 PSI

Material

Steel

Number of bolts

4

O-ring

69.44X3.53 mm

Pressure max.

175 bar

Sealing material

NBR

Shore

90

Standard ISO

ISO 6162-1

Standard SAE

SAE J518 Code 61

Temperature max.

+90 °C

Temperature min.

-40 °C

Package size

0 pcs

Barcode

5704295877860

Gross weight

1,60 Kg

Net weight

1,60 Kg

Country of origin

Intrastat code

73079100

Product information
Measure sketch

Butt weld flange 2.1/2" SAE3000 - complete
