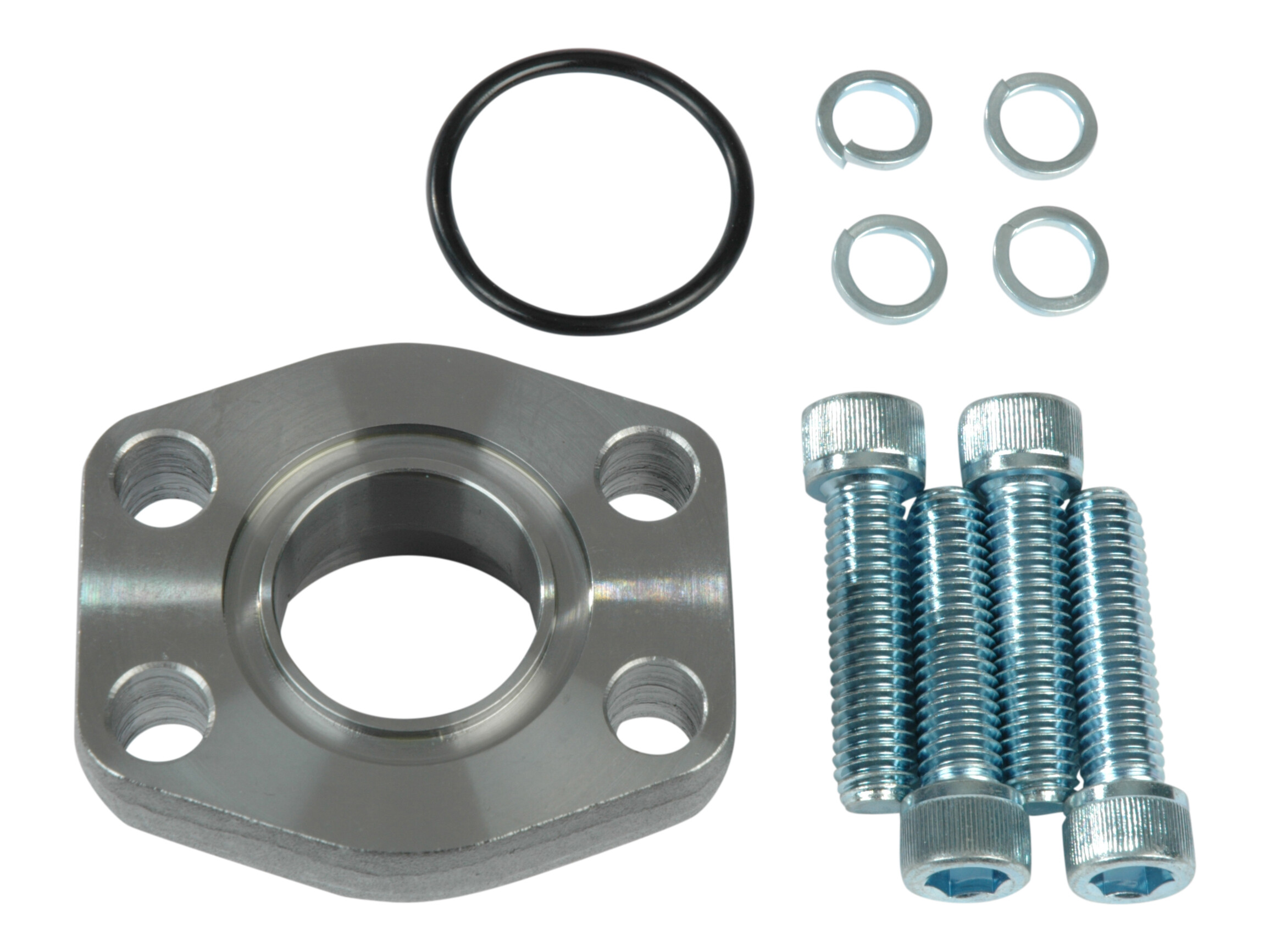

Socket weld flange 1.1/2" SAE3000 - complete UNC

Socket weld flange 1.1/2" SAE3000 - complete UNC

Varenummer:

AFS106S/U

Pakke str.:

0 pcs

Min. bestillingsenhed er:

1 pcs

Spare parts (1)

O-ring 90S

Partnumber: 47.22X3.53S

Specifications
Dimensions and shipping

Brand Name

Havit

69,9 mm

Diameter flange

60.3 mm

35,7 mm

Flange

1.1/2 "

Flange SAE/DIN

3000 PSI

Material

Steel

Number of bolts

O-ring

47,22X3,53 mm

Pressure max.

210 bar

Sealing material

NBR

Shore

Standard ISO

ISO 6162-1

Standard SAE

SAE J518 Code 61

Temperature max.

+90 °C

Temperature min.

-40 °C

Package size

0 pcs

Barcode

5704295917580

Gross weight

1,28 Kg

Net weight

1,28 Kg

Country of origin

Intrastat code

73079100

Product information
Measure sketch

Socket weld flange 1.1/2" SAE3000 - complete UNC
