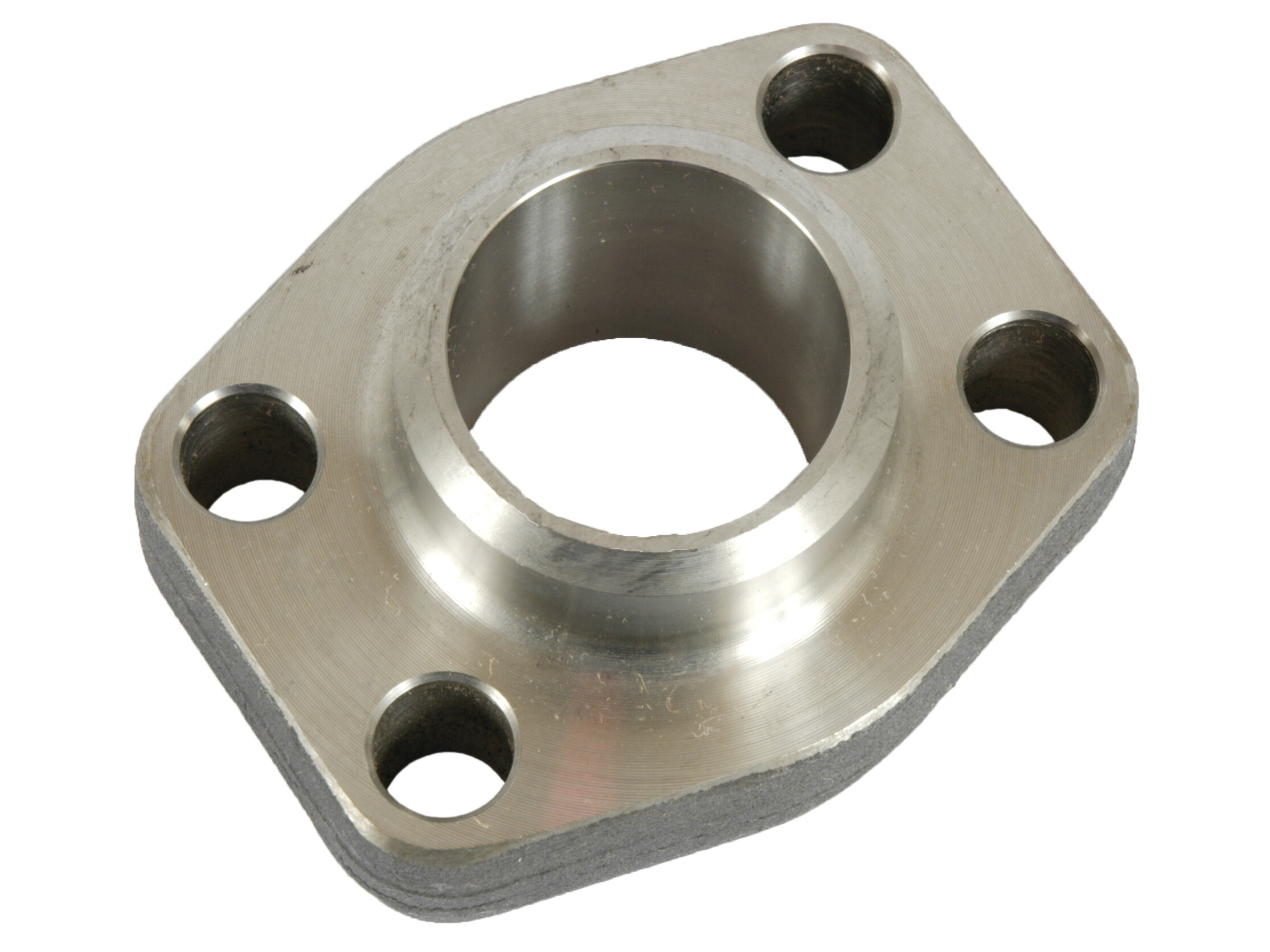

Butt weld flange 1/2" SAE3000

Varenummer:

AFS080ST

Pakke str.:

0 pcs

Min. bestillingsenhed er:

1 pcs

Specifications
Dimensions and shipping

Bolt dimension

M8x30 mm

38,1 mm

Diameter flange

30.2 mm

Diameter svejsestuds

21.5 mm

17,5 mm

Flange

1/2 "

Flange SAE/DIN

3000 PSI

Materiale

Stainless steel

Mærke navn

Havit

O-ring

18,64X3,53 mm

Shore

Standard ISO

ISO 6162-1

Standard SAE

SAE J518 Code 61

Temperatur maks.

+90 °C

Temperatur min.

-40 °C

Tryk maks.

350 bar

Vinkel

0 °

Package size

0 pcs

Barcode

5704295726588

Gross weight

0,28 Kg

Net weight

0,28 Kg

Country of origin

DEU

Intrastat code

73079100

Product information
Measure sketch

Butt weld flange 1/2" SAE3000
