Tryckb.vent. 10-3S, 10-420bar

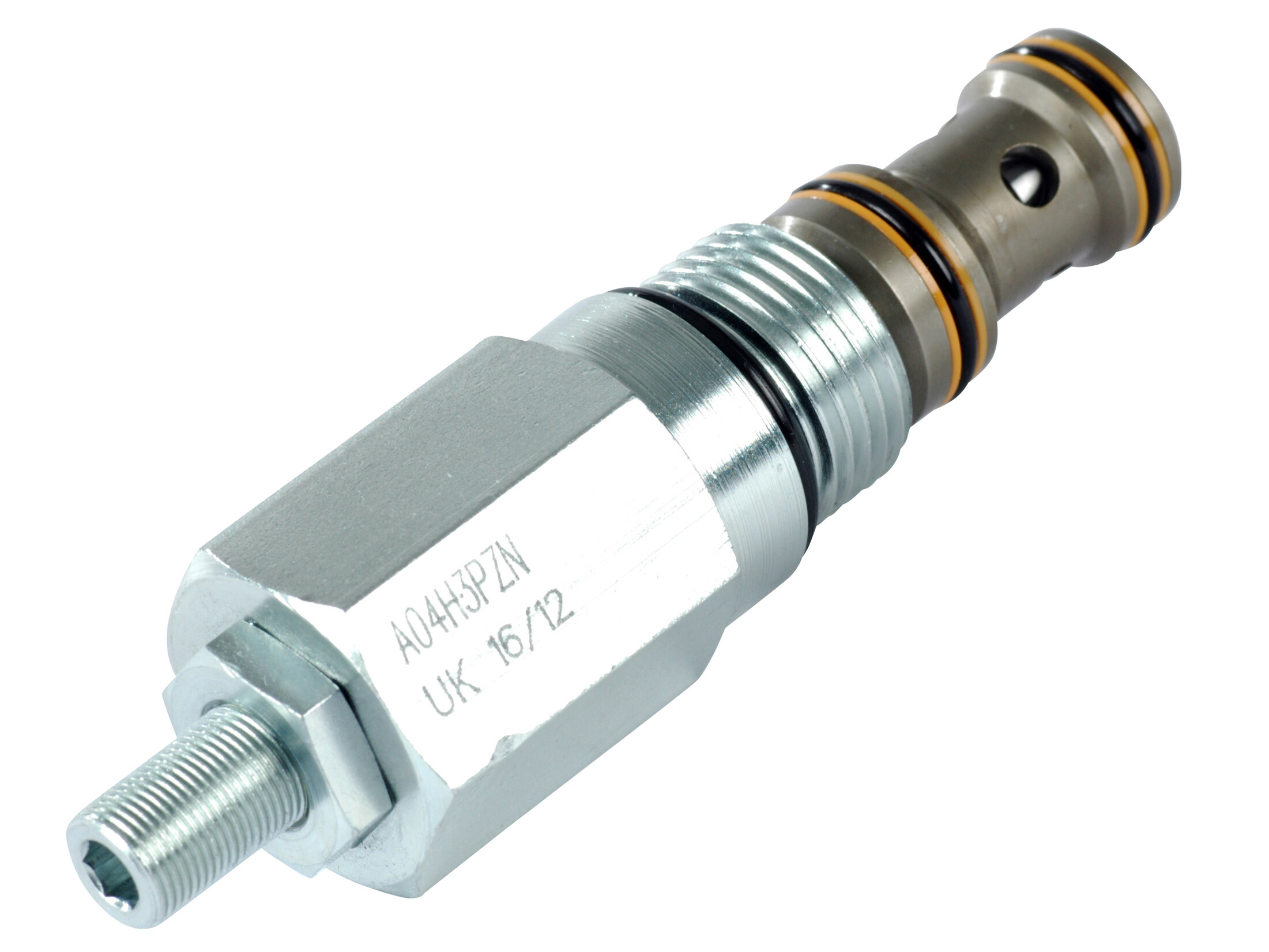

Pilot Operated, Spool-Type, Ventable Relief Valve.
Features
- High flow capacity
- Full tank line back pressure capability
- Excellent flow pressure characteristics for consistent pressure setting
- Ideal for pump relief and remote control or unloading via vent (port 3)
- Integral 250 micron pilot flow filter
- Hardened working parts for maximum durability
- All external parts zinc plated
Artikelnummer:
A04H3PZN
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
Brand Name
Hydraspecma
Cavity
CAV04-S3
Contamination level max.
18/16/13 - ISO 4406
Flow rate nominal LMin
190 lpm
Oil viscocity recommended
15 - 50 cSt
Pressure T max.
420 bar
Pressure max.
420 bar
Pressure setting max.
420 bar
Pressure setting min.
10 bar
Sealing material
NBR
Torque tightening
50 Nm
Förpackningsstorlek
0 pcs
Streckkod
5704295487854
Bruttovikt
0,25 Kg
Nettovikt
0,25 Kg
Ursprungsland
gbr
Intrastat artikelkod
84812010
Pilot Operated, Spool-Type, Ventable Relief Valve.
Features
- High flow capacity
- Full tank line back pressure capability
- Excellent flow pressure characteristics for consistent pressure setting
- Ideal for pump relief and remote control or unloading via vent (port 3)
- Integral 250 micron pilot flow filter
- Hardened working parts for maximum durability
- All external parts zinc plated
