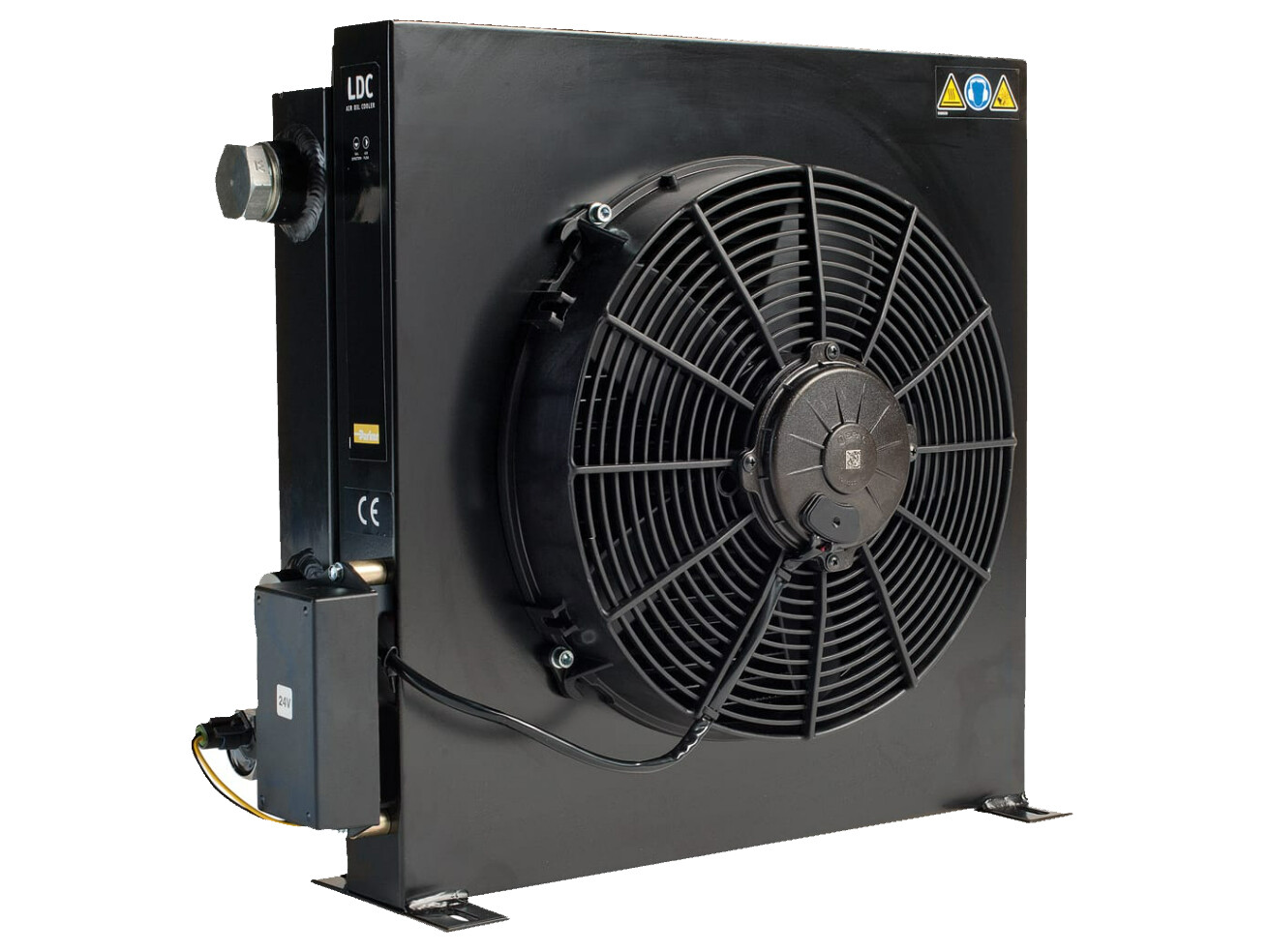

LDC-023-B-0-000-0-0 Cooler 200 l/min-0,60 kW/ C
Olaer oil cooler with dc-motors.
Cooler element material: Aluminium.
Oilconnections:
Inlet: Bottom
Outlet: Top
The mentioned values for flow and pressure are maximum values and must not be exceeded.
Flow- and cooling values are measured at an oil viscosity of ISO VG 46 at 60 °C.
Varenummer:
5827023012
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
Brand Name
Hydraspecma
By-pass valve
No
Cooling effect at 40°C difference
24 kW
Cooling efficiency
0.6 kW/°C
Current max.
10 A
Current type
DC
Flow rate nominal LMin
200 lpm
Noise level
77 dB-A
Pressure max.
14 bar
Pressure static max.
21 bar
Rotational speed max.
3060 rpm
Temperature working fluid max.
+120 °C
Thread inner
G 1 BSP
Voltage
24 V
Pakke str.
0 pcs
Stregkode
5704334298731
Brutto vægt
27,40 Kg
Netto vægt
27,40 Kg
Oprindelsesland
POL
Intrastat varekode
84186900
Olaer oil cooler with dc-motors.
Cooler element material: Aluminium.
Oilconnections:
Inlet: Bottom
Outlet: Top
The mentioned values for flow and pressure are maximum values and must not be exceeded.
Flow- and cooling values are measured at an oil viscosity of ISO VG 46 at 60 °C.
