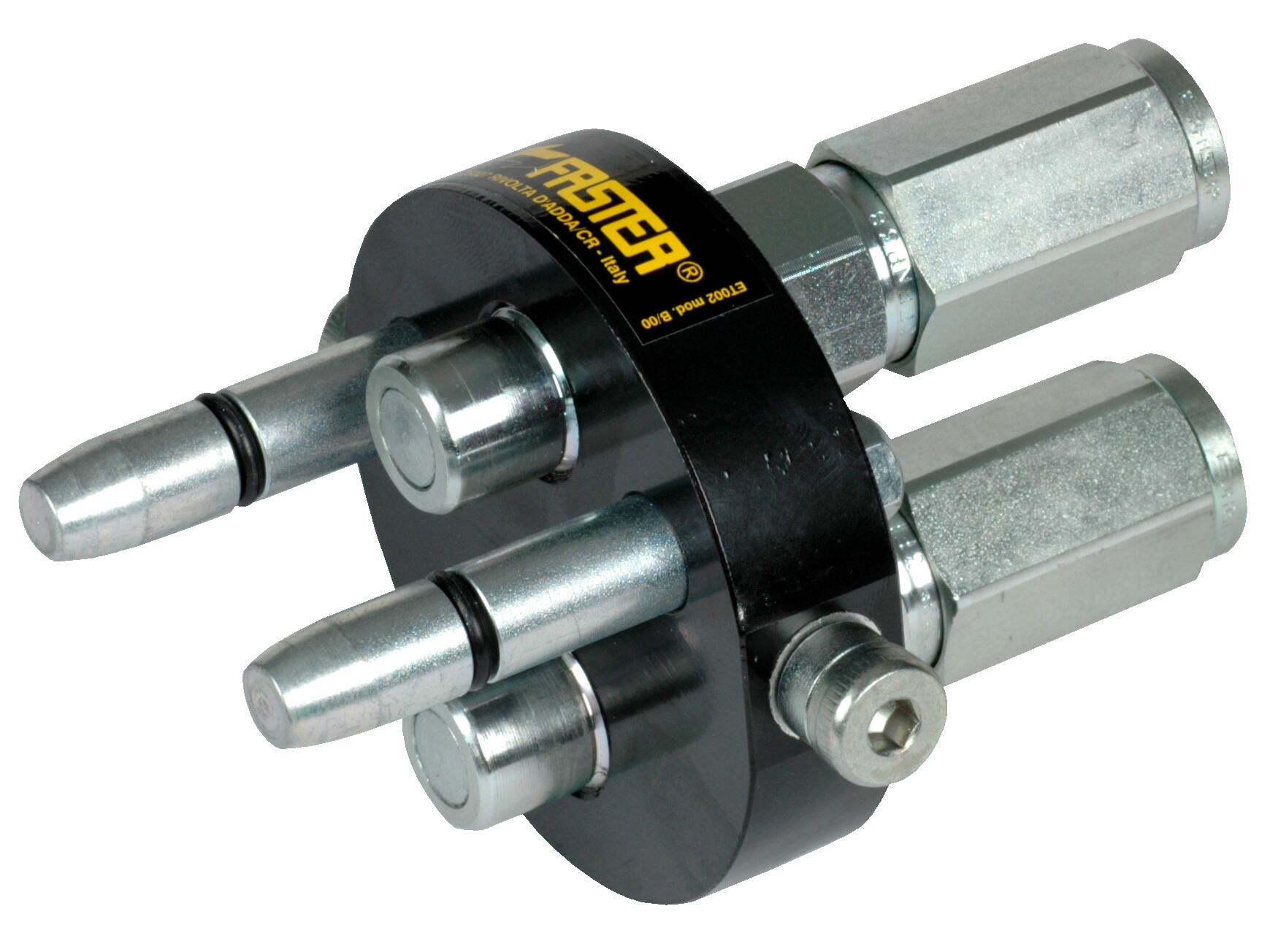

MultiFaster Mobile part, 3P206 2 outlet 3/8 , 1/2 BSP fem.

MultiFaster quick coupling.

Quick-release multiconnection system to connect several hydraulic and electrical lines in one operation. No fluid spillage or air inclusion during connection and disconnection of the multi-couplers.

Both 2P... and 3P... series are equipped with flat-face couplings.
3P... series is equipped with flat-face male couplings type 3FFNP on the mobile part, in order to achieve an effortless connection and disconnection under maximum working pressure.

Artikelnummer:
3P206212GMC

Förpackningsstorlek:
0 pcs

Minsta beställningskvantitet:
1 pcs
Antal forbindelser
2

Flow Nominel
40 lpm

Gevind
G 1/2 BSP

Korrosions resistens
500 hours salt spray ISO 9227

Model
3P206

Model kode
3P206-2-12GMC

Mærke navn
Faster

Overfladebehandling
Zinc coating (CR III)

Pakningsmateriale
NBR, Polyurethane

Samling under tryk
Allowed

Serie
P206

Størrelse
3/8 "

Temperatur maks.
+100 °C

Temperatur min.
-25 °C

Tryk maks.
250 bar

Tryk sprængning min.
1000 bar
Förpackningsstorlek
0 pcs

Streckkod
5704334237297

Bruttovikt
1,12 Kg

Nettovikt
1,12 Kg

Ursprungsland
ITA

Intrastat artikelkod
84812010

MultiFaster quick coupling.

Quick-release multiconnection system to connect several hydraulic and electrical lines in one operation. No fluid spillage or air inclusion during connection and disconnection of the multi-couplers.

Both 2P... and 3P... series are equipped with flat-face couplings.
3P... series is equipped with flat-face male couplings type 3FFNP on the mobile part, in order to achieve an effortless connection and disconnection under maximum working pressure.
