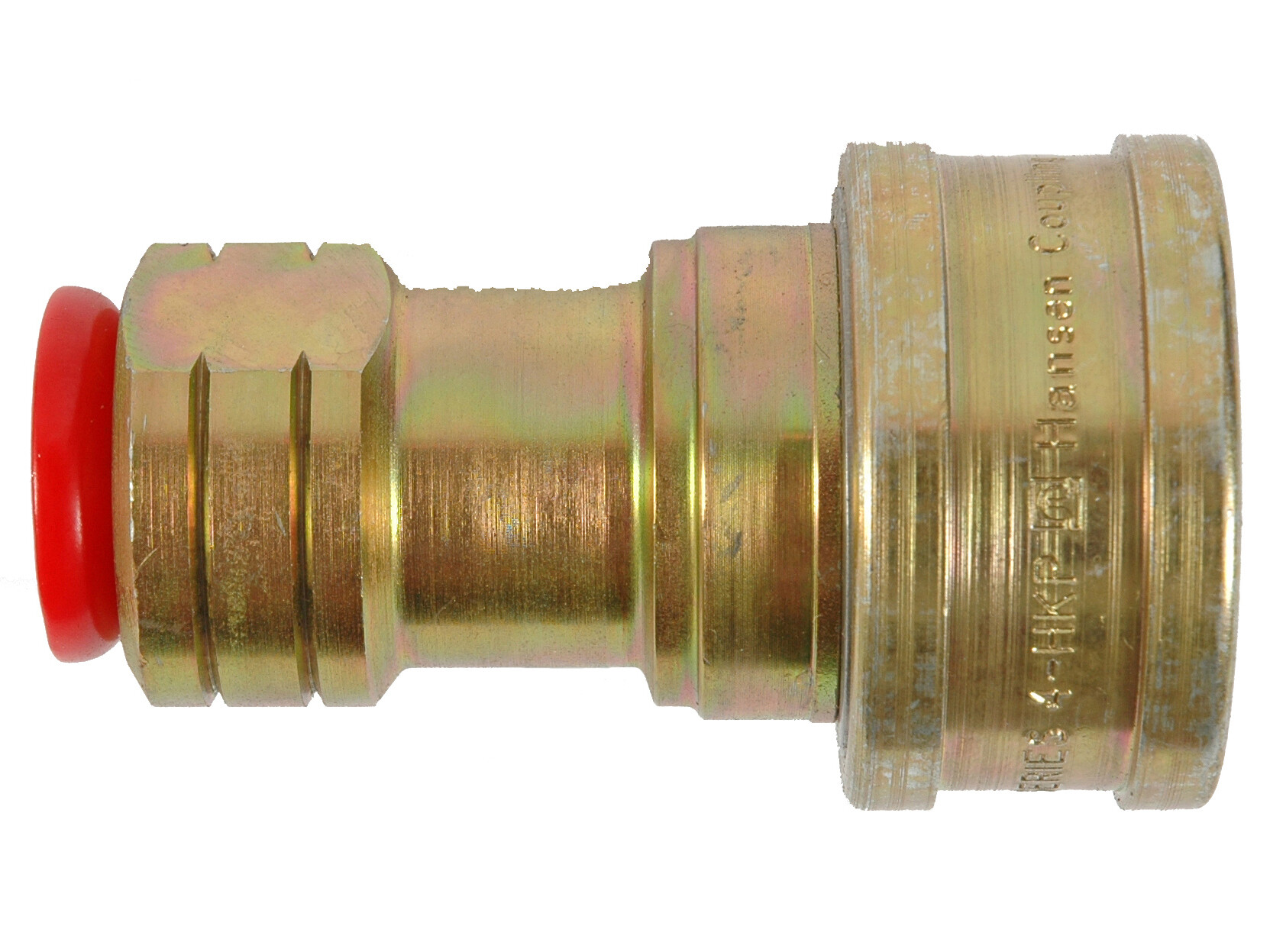

Coupling Hansen (ISO-B) - female DN06 - 1/4"NPT
Quick-coupling with ball-lock.
Partnumber:
2H16NPT
Package size:
0 pcs
Min. order quantity is:
1 pcs
Brand Name
Danfoss
DN
6 mm
Dimension A
57.4 mm
Dimension B
29 mm
Flow rate nominal LMin
12 lpm
Hexagon
19.1 mm
ISO size
6.3
Material
Steel
Model code
2H16
Pressure eliminator
No
Pressure max.
345 bar
Sealing material
NBR
Size
1/4 "
Standard ISO
ISO 7241-1-B
Surface treatment
Electro zinc plated
Temperature max.
+100 °C
Temperature min.
-25 °C
Thread inner
1/4 "NPTF
Pakke str.
0 pcs
Stregkode
5704295551715
Brutto vægt
0,08 Kg
Netto vægt
0,08 Kg
Oprindelsesland
FRA
Intrastat varekode
73079910
Quick-coupling with ball-lock.
