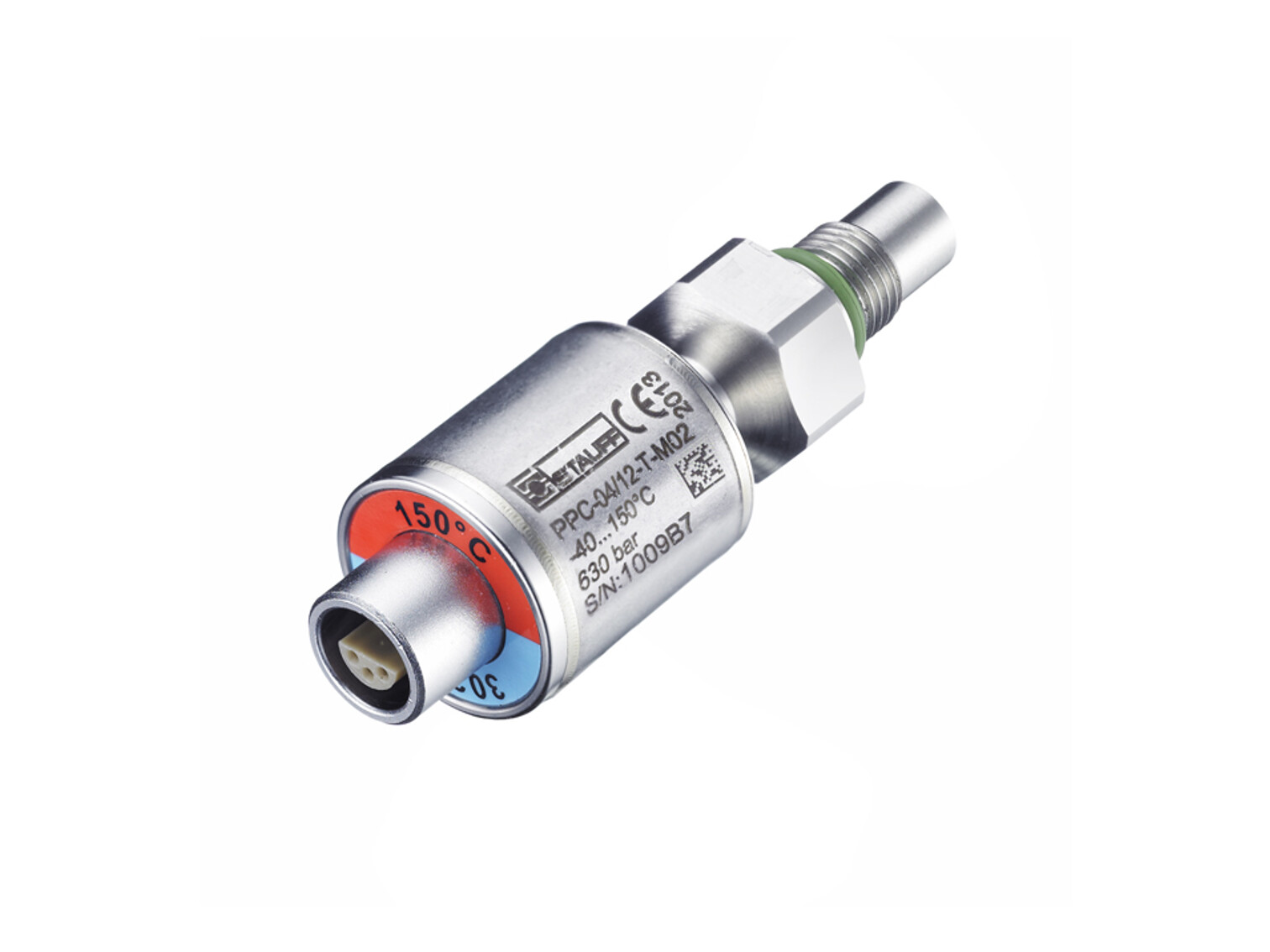

Temperature sensor-PPC-04/12-T-B02 G 1/4
The Screw-in Temperature Sensor-PPC-04/12-T-B04 measure current temperature.
Note: A Connection Cable-PPC-04/12-3 (3 m) is needed to connect the Temperature Sensor-PPC-04/12-T to the current Hydraulic Testers. An Extension Cable- PPC-04/12-5-EXT (5 m) is also available as an option.
Varenummer:
1810000517
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
Brand Name
Stauff
Current type
DC
Material
Stainless steel
Max. input Voltage
12 V
Min. input voltage
7 V
Model code
Sensor-PPC-04/12-T-B04
Output signal max.
3 V
Output signal min.
0 V
Pressure burst min.
2150 bar
Pressure max.
630 bar
Sensor type
Analog
Temperature ambient max.
+85 °C
Temperature ambient min.
-40 °C
Temperature measurement max.
+150 °C
Temperature measurement min.
-40 °C
Thread
G 1/4 BSP
Package size
0 pcs
Barcode
5715803529874
Gross weight
Kg
Net weight
0,06 Kg
Country of origin
deu
Intrastat code
90261021
The Screw-in Temperature Sensor-PPC-04/12-T-B04 measure current temperature.
Note: A Connection Cable-PPC-04/12-3 (3 m) is needed to connect the Temperature Sensor-PPC-04/12-T to the current Hydraulic Testers. An Extension Cable- PPC-04/12-5-EXT (5 m) is also available as an option.
