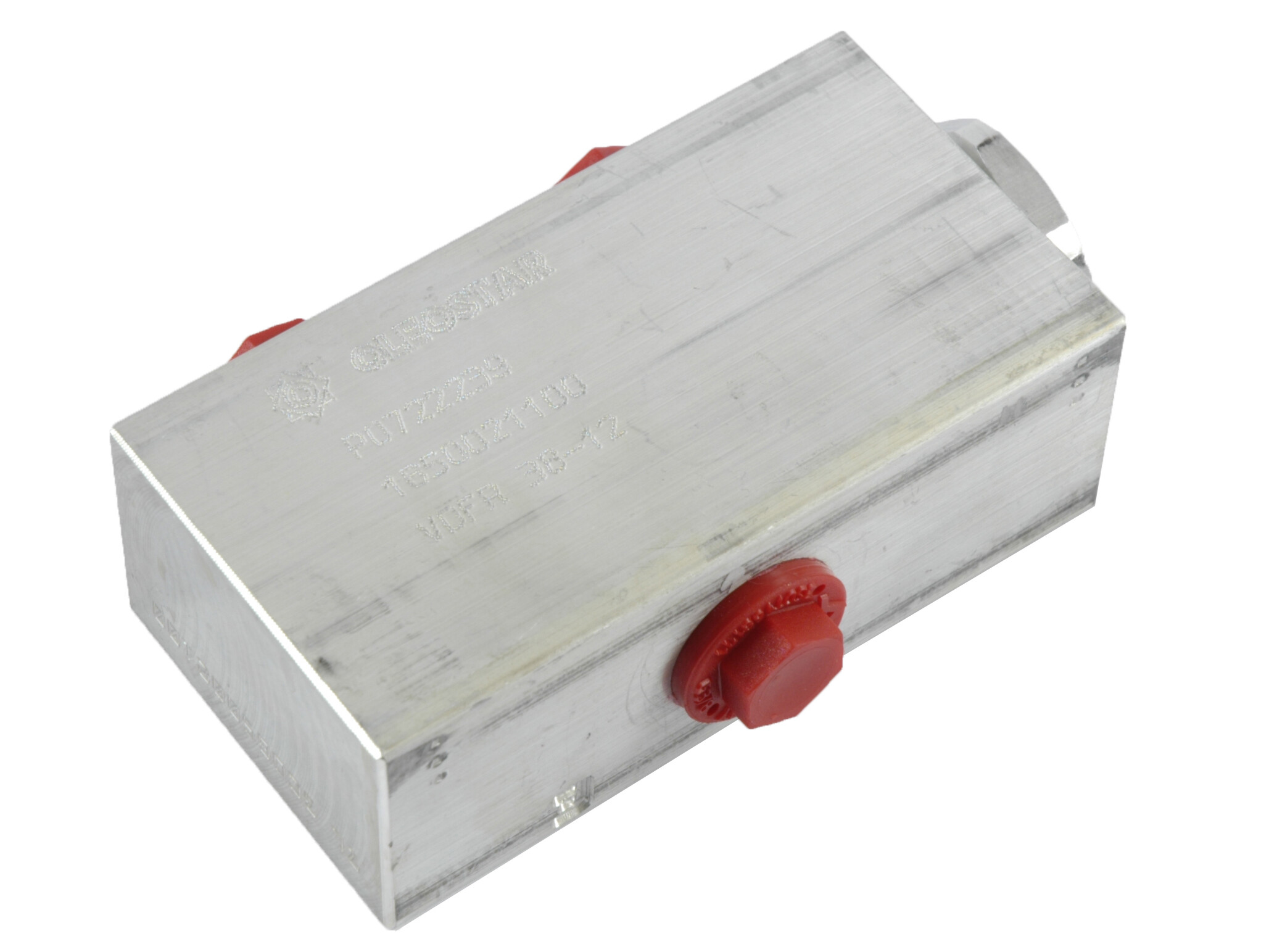

Flowdivider 1/2 Oleostar VDFR12-40 (24-40LPM)
Pressure compensated Oleostar 3-way divider/combiner. Splitting 50/50% from port E to ports U1 and U2. Flow in opposite direction is combined into one. Valve block in aluminium.
Ports (as divider): E: inlet. U1/U2: outlet.
Partnumber:
1650031100
Package size:
0 pcs
Min. order quantity is:
1 pcs

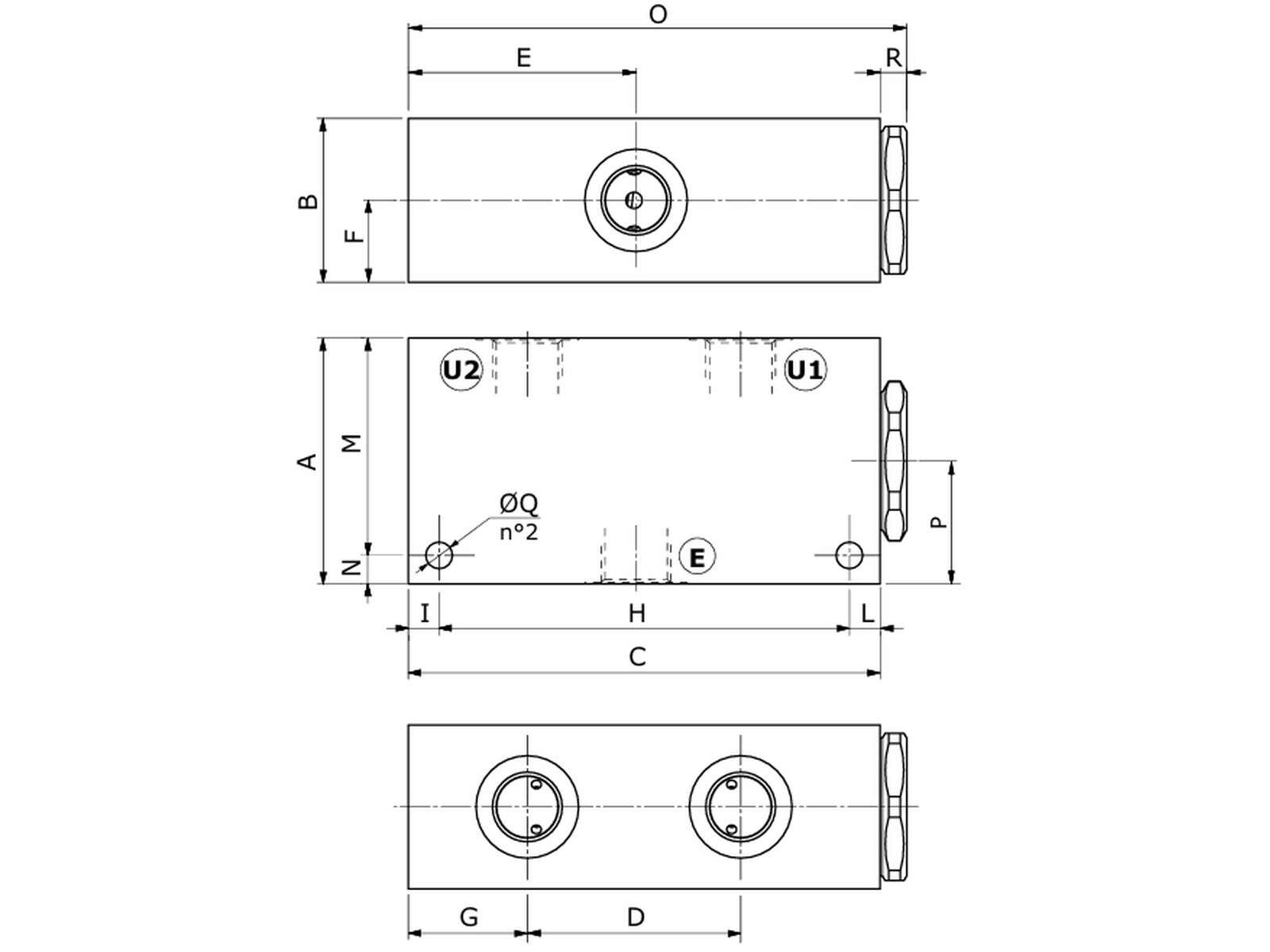

A
60 mm
B
40 mm
Brand Name
Walvoil
C
115 mm
Contamination level max.
18/16/13 - ISO 4406
D
52 mm
E
G 1/2 BSP
F
20 mm
Flow rate min.
24 lpm
Flow rate nominal LMin
40 lpm
G
29 mm
H
100 mm
I
7,5 mm
L
7,5 mm
M
53 mm
Model code
VDFR12-40
N
7 mm
Number of ways
3
O
121,5 mm
Oil viscocity recommended
10 - 200 cSt
P
30 mm
Port U1/U2
G 3/8 BSP
Pressure max.
210 bar
R
6,5 mm
Temperature max.
+100 °C
Temperature min.
-40 °C
ØQ
6,5 mm
Package size
0 pcs
Barcode
5704334040712
Gross weight
0,85 Kg
Net weight
0,85 Kg
Country of origin
ITA
Intrastat code
84812010
Pressure compensated Oleostar 3-way divider/combiner. Splitting 50/50% from port E to ports U1 and U2. Flow in opposite direction is combined into one. Valve block in aluminium.
Ports (as divider): E: inlet. U1/U2: outlet.
