    • Fixed Prio. Flow Cont. valve 38l/m 2.4l/m CP310-1-B-0-0.6

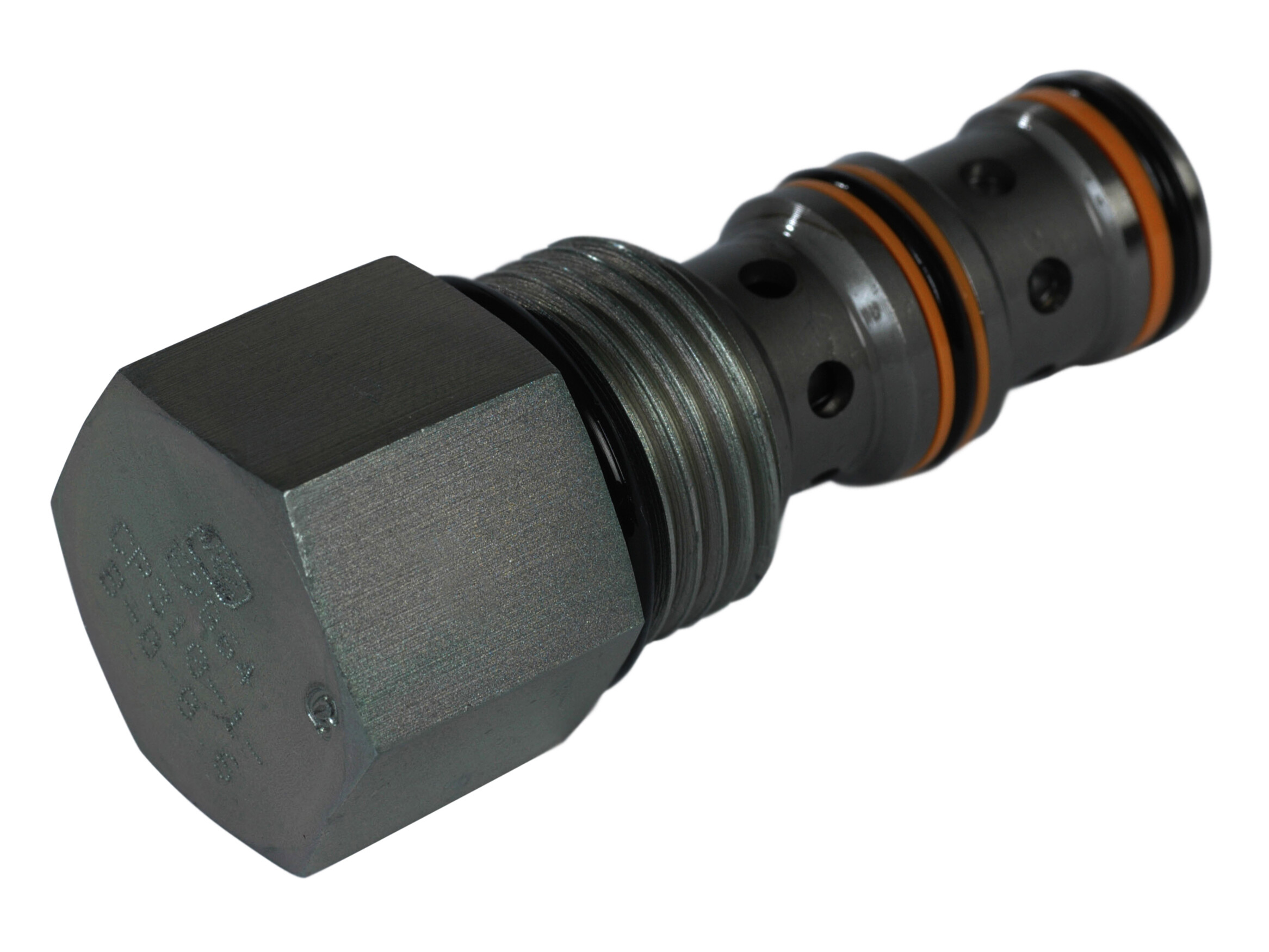

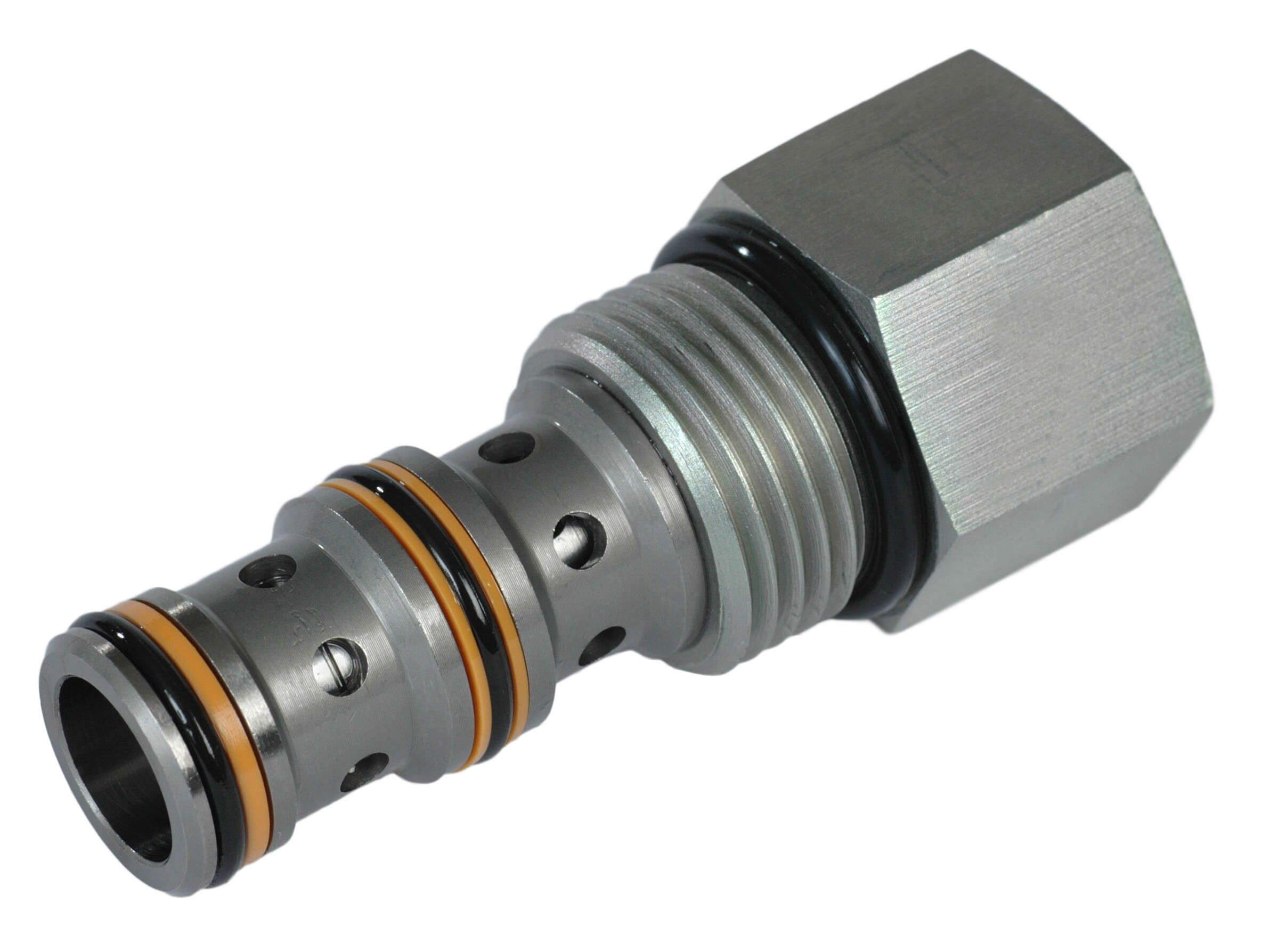

    Fixed Prio. Flow Cont. valve 38l/m 2.4l/m CP310-1-B-0-0.6

    This valve is a fixed, pressure compensated priority-type ­flow control valve.

    Artikelnummer:
    137337
    Förpackningsstorlek:
    0 pcs
    Minsta beställningskvantitet:
    1 pcs
    Ventilhus Comatrol SDC10-3-SE3B (3/8)
    Varenummer: 922514310
    Ventilhus Comatrol SDC10-3-SE4B (1/2)
    Varenummer: 922514410
    KIT, SEAL CP10-3 CAV BUNA N #
    Varenummer: 120240
    Brand Name
    Danfoss
    Cavity
    SDC10-3
    Contamination level max.
    20/18/14 - ISO 4406
    Flow max. regulated
    2.4 lpm
    Flow min. regulated
    2.4 lpm
    Inlet flow max.
    38 lpm
    Model code
    CP310-1-B-0-0.6
    Oil viscocity recommended
    12 - 54 cSt
    Pressure compensated
    No
    Pressure max.
    210 bar
    Sealing material
    NBR
    Temperature max.
    +100 °C
    Temperature min.
    -40 °C
    Torque tightening
    41 - 47 Nm
    Pakke str.
    0 pcs
    Stregkode
    5704334467618
    Brutto vægt
    0,13 Kg
    Netto vægt
    0,13 Kg
    Oprindelsesland
    ITA
    Intrastat varekode
    84812010

    This valve is a fixed, pressure compensated priority-type ­flow control valve.

    Product datasheet
