Solenoid Valve 65l/m NC HSVP10-NC-H00-00-XC-P-00

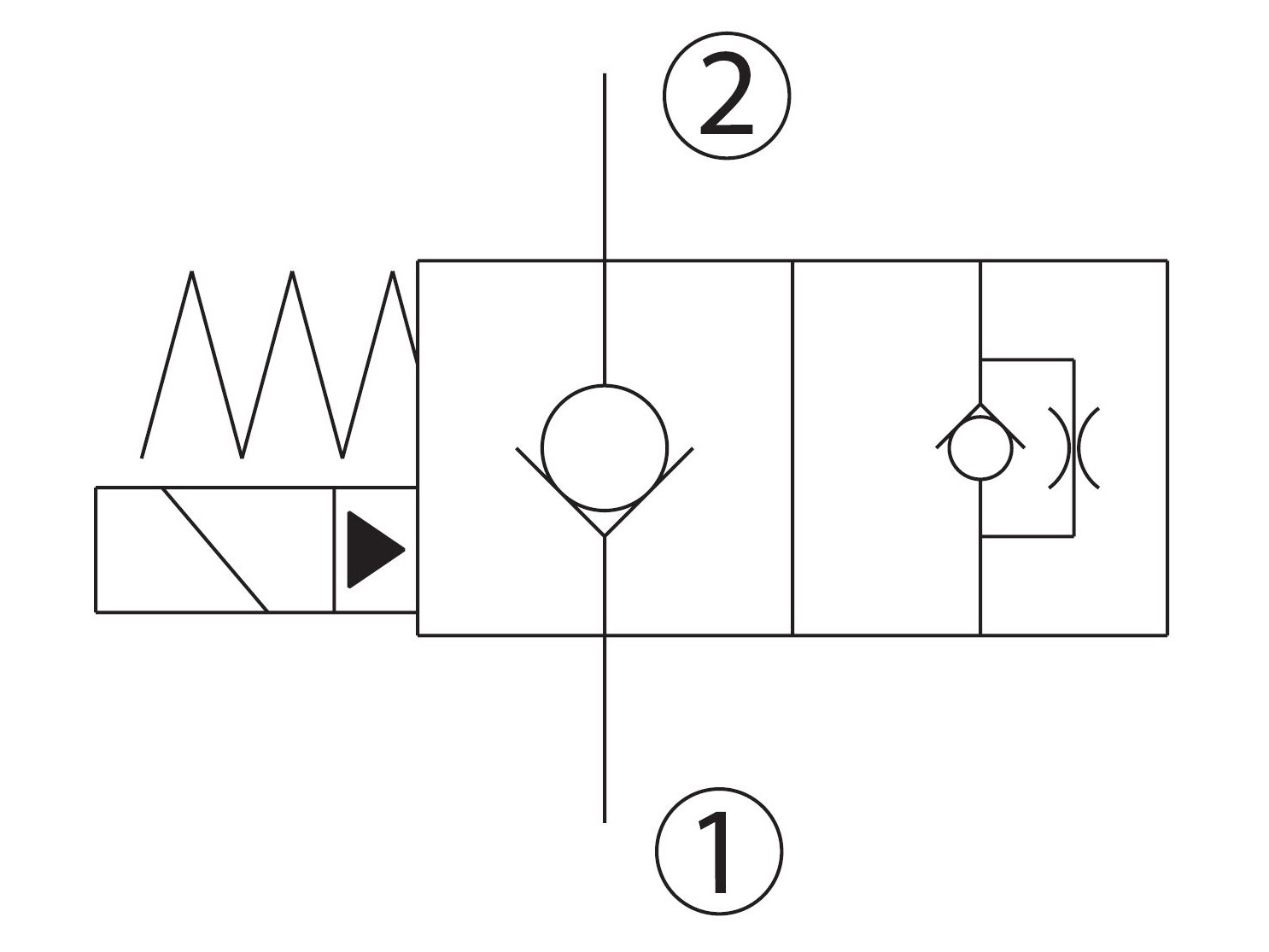

This is a normally closed, pilot-operated, poppet-style 10-size solenoid valve. When de-energized, the HSVP10-NC acts as a check valve allowing flow from port 1 to port 2 and blocking flow from port 2 to port 1. When energized, the valve’s poppet is shifted and allows flow from port 2 to port 1, and severely restricts from port 1 to port 2.



Applications:

The HSVP10-NC is designed to function as load holding or blocking valve in applications where low internal leakage is required. In load holding applications, the circuit should be designed so that the de-energized state is the position that is holding the load.

Partnumber:
11133303

Package size:
0 pcs

Min. order quantity is:
1 pcs
Coil H16-24D-29W-FL-DB
Partnumber: 11039515
Coil H16-12D-29W-DE
Partnumber: 11039516
Coil H16-24D-29W-DE
Partnumber: 11039517
Coil H16-12D-29W-DE-DB
Partnumber: 11039518
Coil H16-24D-29W-DE-DB
Partnumber: 11039519
Mix-N-Match Dual Cross Body 1/2"DCP10-2-4B
Partnumber: 11135684
Mix-N-Match Dual Parallel Body 1/2"DPL10-2-4B
Partnumber: 11137221
Housing SDC10-2-S3B steel 3/8
Partnumber: 11143048
Housing SDC10-2-S4B steel 1/2 port
Partnumber: 11143049
Housing SDC10-2--LG14B (1/2)
Partnumber: 922514110
Housing SDC10-2--LG24B (1/2)
Partnumber: 922514210
HOUSING, SDC10-2-DG3B (3/8) SDC10-2-DG3B (3/8)
Partnumber: 922516910
HOUSING, SDC10-2-DG4B (1/2) SDC10-2-DG4B (1/2)
Partnumber: 922517010
Activation
Solenoid

Brand Name
Danfoss

Cavity
SDC10-2

Contamination level max.
20/18/14 - ISO 4406

Filter built-in
No

Flow rate nominal LMin
80 lpm

Manual operated
No

Model code
HSVP10-NC-H00-00-XC-P-00

Number of ways/positions
2/2

Oil viscocity recommended
12 - 54 cSt

Pressure max.
350 bar

Sealing material
Polyurethane

Solenoidtype
H16

Temperature max.
+100 °C

Temperature min.
-40 °C

Torque tightening
70 Nm

Valve type
NC - Normally closed
Package size
0 pcs

Barcode
5704334465027

Gross weight
0,19 Kg

Net weight
0,19 Kg

Country of origin
ITA

Intrastat code
85051990

This is a normally closed, pilot-operated, poppet-style 10-size solenoid valve. When de-energized, the HSVP10-NC acts as a check valve allowing flow from port 1 to port 2 and blocking flow from port 2 to port 1. When energized, the valve’s poppet is shifted and allows flow from port 2 to port 1, and severely restricts from port 1 to port 2.



Applications:

The HSVP10-NC is designed to function as load holding or blocking valve in applications where low internal leakage is required. In load holding applications, the circuit should be designed so that the de-energized state is the position that is holding the load.
