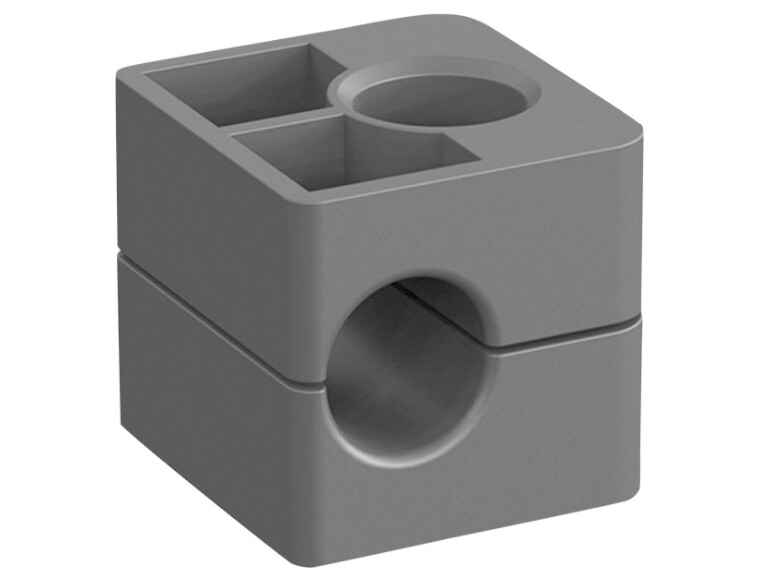

Clamp ø6.4 - Black PAH - DIN 0

Clamp ø6.4 - Black Smooth Polyamid - DIN 0 - 106.4-PA-H

Partnumber:

106.4PAH

Package size:

0 Set

Min. order quantity is:

1 Set

Accessories (4)

Hexagon head bolt - M6x27 - DIN 1 - ZiNi

Partnumber: AS1

Cover plate - DIN 0 - ZiNi

Partnumber: DP1

Screw FZB DIN912 - 8.8, CH

Partnumber: IS1

Weld plate - DIN 0 - Phosphated

Partnumber: SP1

Specifications
Dimensions and shipping

Brand Name

Stauff

Color

Black

DIN size

Diameter pipe

6,4 mm

Dimension D1

6.4 mm

Dimension H

26 mm

Dimension L1

28 mm

Dimension L2

9.5 mm

Group Stauff

Material

Polyamide

Model code

106.4-PA-H

Number of bolts

Standard DIN

DIN 3015 part 1

Temperature max.

+120 °C

Temperature min.

-40 °C

Type

Smooth

Width

30 mm

Package size

0 Set

Barcode

5704295964270

Gross weight

0,07 Kg

Net weight

0,07 Kg

Country of origin

DEU

Intrastat code

39259010

Product information
Measure sketch

Clamp ø6.4 - Black Smooth Polyamid - DIN 0 - 106.4-PA-H
