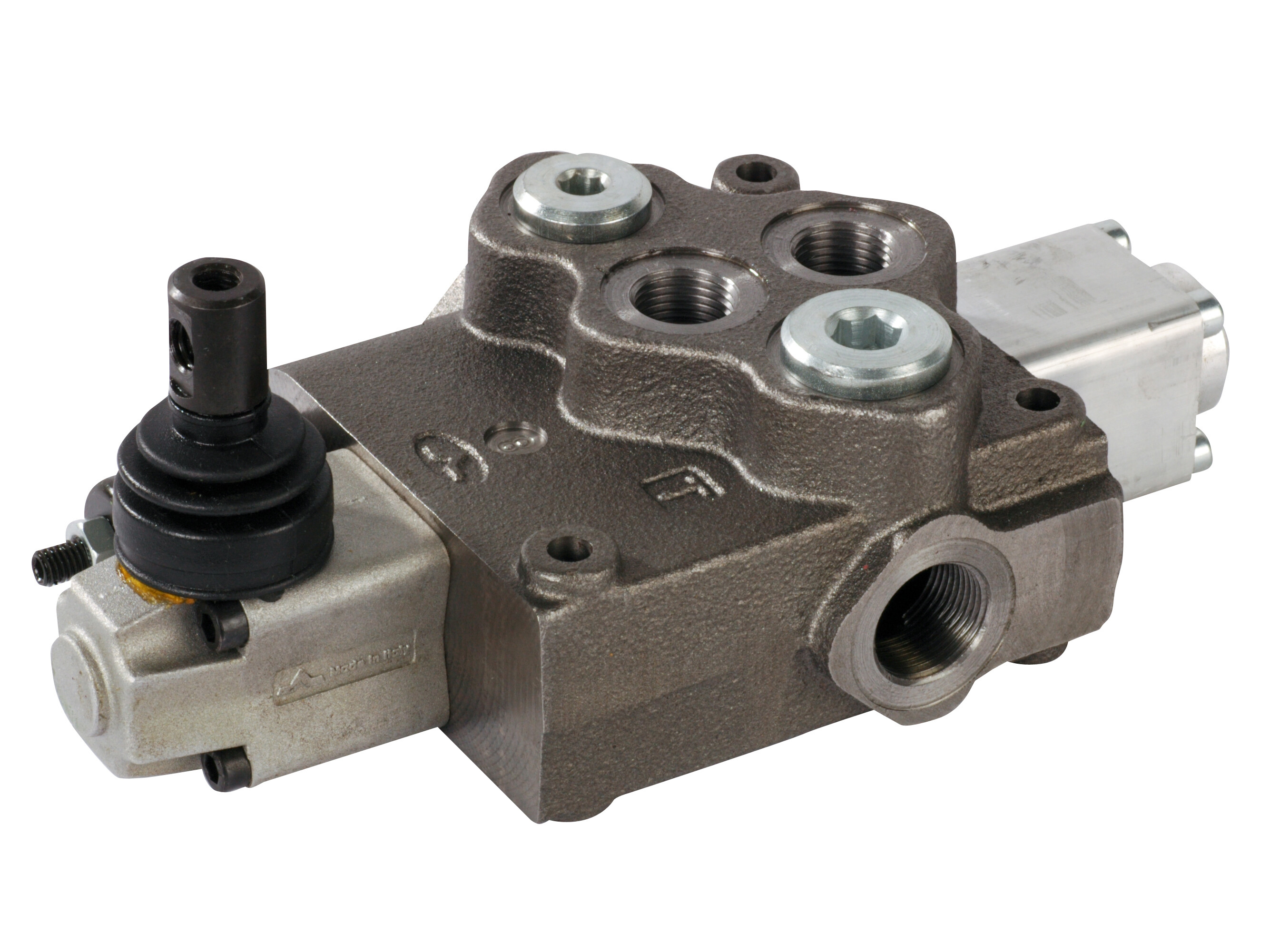

SD11/1-N(KG3-120)/813FL (B=+cylinder A=÷cylinder)
1 spool "wood splitter valve" with G 1/2" threads in port P, A and B. T-port G 3/4".
Artikelnummer:
104111043
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
Brand Name
Walvoil
Contamination level max.
-/19/16 - ISO 4406
Flow rate nominal LMin
70 lpm
Lever
Exclusive
Material
Cast iron
Model code
SD11/1-N(KG3-120)/813FL
Number of sections
1
Oil viscocity recommended
12 - 400 cSt
Port P1
G 1/2 BSP
Port P2
G 1/2 BSP
Port T1
G 3/4 BSP
Port T2
G 3/4 BSP
Pressure T max.
25 bar
Pressure carry-over
No
Pressure max.
315 bar
Pressure relief valve
Yes
Pressure setting max.
200 bar
Pressure setting min.
63 bar
Working ports
G 1/2 BSP
Förpackningsstorlek
0 pcs
Streckkod
5704334238171
Bruttovikt
5,96 Kg
Nettovikt
5,96 Kg
Ursprungsland
ITA
Intrastat artikelkod
84812010
1 spool "wood splitter valve" with G 1/2" threads in port P, A and B. T-port G 3/4".
