Adaptor 1/8 BSPx 9/16 ORFS
\ufeff
-

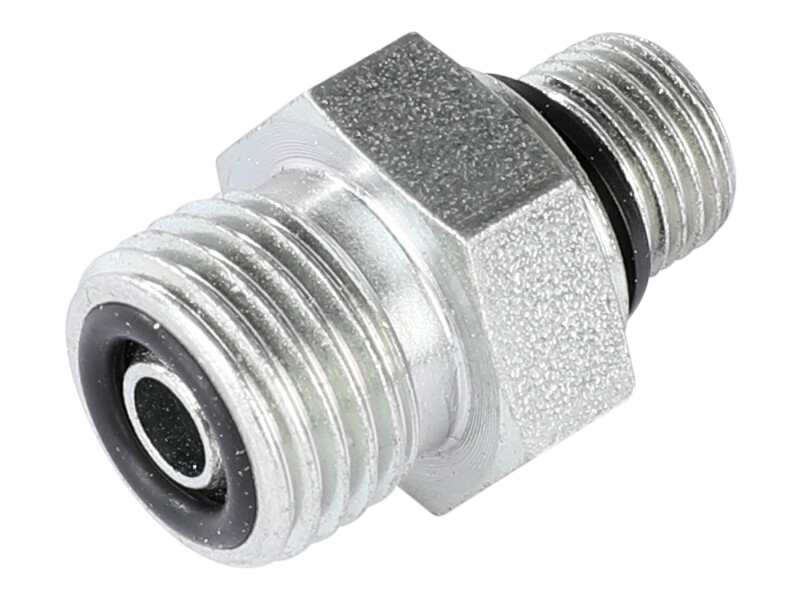

ORFS straight external threaded basic connector
- External thread (BSPP)
- With ED seal NBR Shore-A 85 \u200b\u200b+5/0
- ISO 1179 - for threaded ports
- Operating temperature -20° to +120°
Partnumber:
103FB0204
Package size:
0 pcs
Min. order quantity is:
1 pcs
A
26 mm
B
10 mm
CH
17 mm
D
8 mm
F
9/16-18 ORFS
F1
G 1/8 BSP
Gjenger utvendig
9/16-18 ORFS
Gjenger utvendig
G 1/8 BSP
Korrosjonsmotstand
1400 hours salt spray DIN EN ISO 9227
Materiale
Steel
Merke navn
FOR
Overflatebehandling
Electro zinc plated
Pakningsmateriale
NBR
Standard ISO
ISO 1179
T
6 mm
Temperatur maks.
+100 °C
Temperatur min.
-35 °C
Trykk maks.
350 bar
Vinkel
0 °
Package size
0 pcs
Barcode
5704334405696
Gross weight
0,08 Kg
Net weight
0,08 Kg
Country of origin
ITA
Intrastat code
73071110
\ufeff
-
ORFS straight external threaded basic connector
- External thread (BSPP)
- With ED seal NBR Shore-A 85 \u200b\u200b+5/0
- ISO 1179 - for threaded ports
- Operating temperature -20° to +120°
Note: Opening 3D files requires a program that supports the file format
