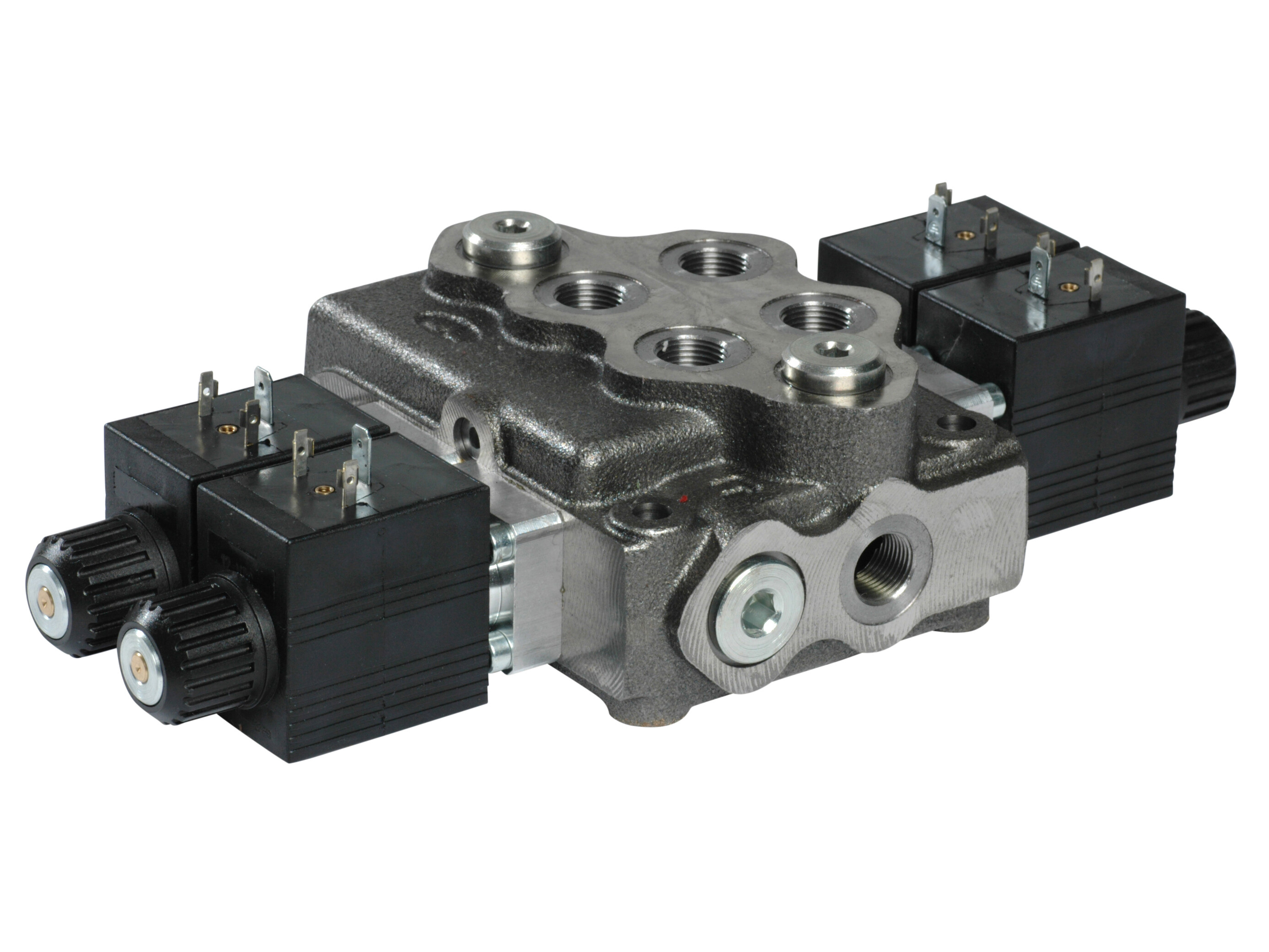

SD5/2-P(JG3-120)/18ES3/18ES3/ AET-12VDC

2-section SD5 monoblock valve with built-in pressure relief valve and 2 spools in parallel. Solenoid (12 Vdc) activated.

Spool function: 2 x double acting with port A and B closed in neutral position. Spring centered. Solenoid activation: On/Off.

Open center P to T in neutral position.

Varenummer:
102200017

Pakke str.:
0 pcs

Min. bestillingsenhed er:
1 pcs
Solenoid D12 12VDC for SD5 8ES1-8ES2-8ES3 - ISO4400
Artikelnummer: 4SOL412012
Brand Name
Walvoil

Contamination level max.
-/19/16 - ISO 4406

Current type
DC

Flow rate nominal LMin
45 lpm

Lever
Exclusive

Material
Cast iron

Model code
SD5/2-P(JG3-120)/18ES3/18ES3/AET-12VDC

Number of sections
2

Oil viscocity recommended
12 - 400 cSt

Port P
G 3/8 BSP

Port T
G 3/8 BSP

Pressure T max.
25 bar

Pressure carry-over
No

Pressure max.
315 bar

Pressure relief valve
Yes

Pressure setting max.
200 bar

Pressure setting min.
50 bar

Voltage
12 V

Working ports
G 3/8 BSP
Förpackningsstorlek
0 pcs

Streckkod
5704334252016

Bruttovikt
6,72 Kg

Nettovikt
6,72 Kg

Ursprungsland
ITA

Intrastat artikelkod
84812010

2-section SD5 monoblock valve with built-in pressure relief valve and 2 spools in parallel. Solenoid (12 Vdc) activated.

Spool function: 2 x double acting with port A and B closed in neutral position. Spring centered. Solenoid activation: On/Off.

Open center P to T in neutral position.
