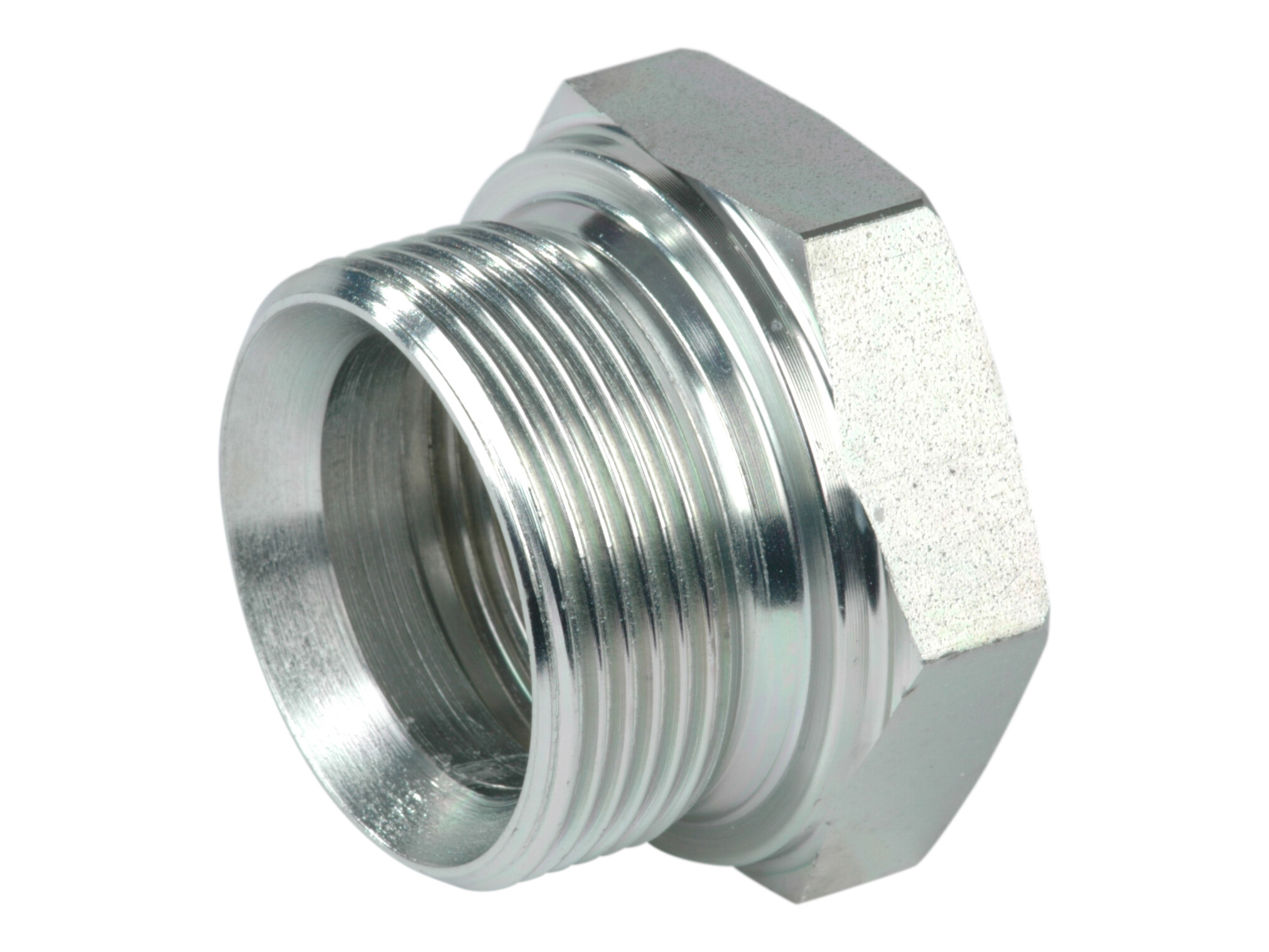

948-24-16

948-24-16

948-24-16

Varenummer:

09BPS2416

Pakke str.:

0 pcs

Min. bestillingsenhed er:

1 pcs

Specifications
Dimensions and shipping

Brand Name

I.M.M Hydraulics

CH1

55 mm

F

G 1 BSP

F1

G 1.1/2 BSP

L

35 mm

L2

22 mm

Material

Steel

Surface treatment

Electro zinc plated

Temperature max.

+120 °C

Temperature min.

-40 °C

Thread inner

G 1 BSP

Thread outer

G 1.1/2 BSP

Ø tube

38-25 mm

Package size

0 pcs

Barcode

5704334346906

Gross weight

Kg

Net weight

Kg

Country of origin

swe

Product information
Measure sketch

948-24-16

948-24-16
