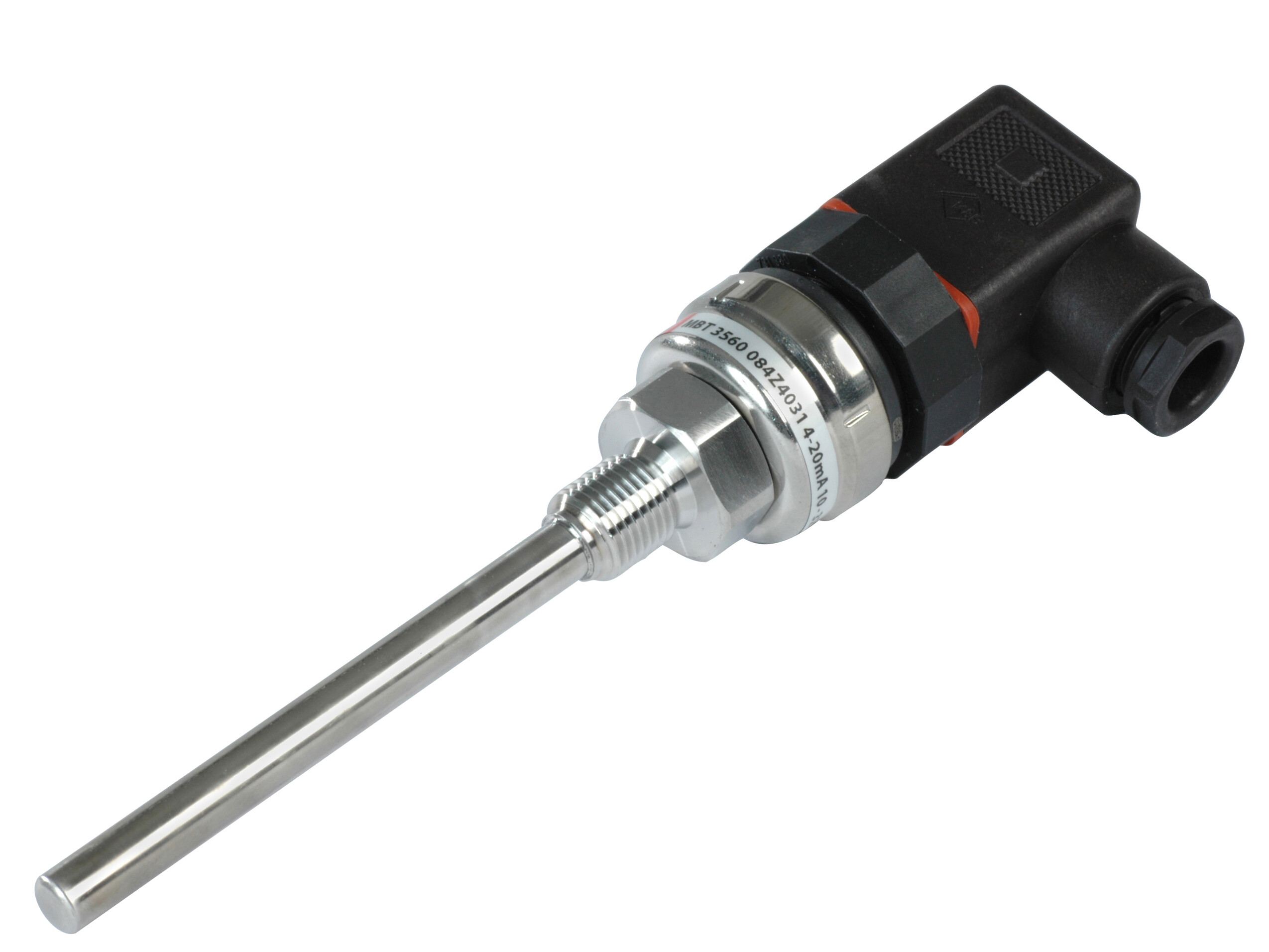

MBT 3560 temp sensor G1/4 A 100mm,4-20mA,0-100C PG9
With MBT 3560 the technology of standard temperature sensors and the electrical connections from MBS pressure transmitters has been combined with a new developed electronics which has resulted in a compact temperature sensor with a built-in transmitter.
The MBT 3560 is designed for use in harsh industrial enviroments where reliable, robust and accurate equipment is required. Available with a wide selection of process and electrical connections. Can be delivered with a 33 mm extension length which makes it possible to measure temperatures up to 200 °C without damaging the built-in electronics. Designed for use in harsh industrial environments where reliable, robust and accurate equipment is required. All metal enclosure parts made of stainless steel (AISI 316).
A wide selection of process and electrical connections.
Ultra compact design.
Sensor pockets available for applications where emptying the system is not an option.
Based on Pt 1000 technology.
Partnumber:
084Z4031
Package size:
0 pcs
Min. order quantity is:
1 pcs
Brand Name
Danfoss
Insulation class
IP 65
Length without head
100 mm
Output signal max.
20 mA
Output signal min.
4 mA
Plug type
DIN 43650 Form A
Temperature max.
+200 °C
Temperature measurement max.
+100 °C
Temperature measurement min.
0 °C
Temperature min.
-50 °C
Thread
G 1/4 BSP
Förpackningsstorlek
0 pcs
Streckkod
5704334401612
Bruttovikt
0,15 Kg
Nettovikt
0,15 Kg
Ursprungsland
Intrastat artikelkod
84812010
With MBT 3560 the technology of standard temperature sensors and the electrical connections from MBS pressure transmitters has been combined with a new developed electronics which has resulted in a compact temperature sensor with a built-in transmitter.
The MBT 3560 is designed for use in harsh industrial enviroments where reliable, robust and accurate equipment is required. Available with a wide selection of process and electrical connections. Can be delivered with a 33 mm extension length which makes it possible to measure temperatures up to 200 °C without damaging the built-in electronics. Designed for use in harsh industrial environments where reliable, robust and accurate equipment is required. All metal enclosure parts made of stainless steel (AISI 316).
A wide selection of process and electrical connections.
Ultra compact design.
Sensor pockets available for applications where emptying the system is not an option.
Based on Pt 1000 technology.
