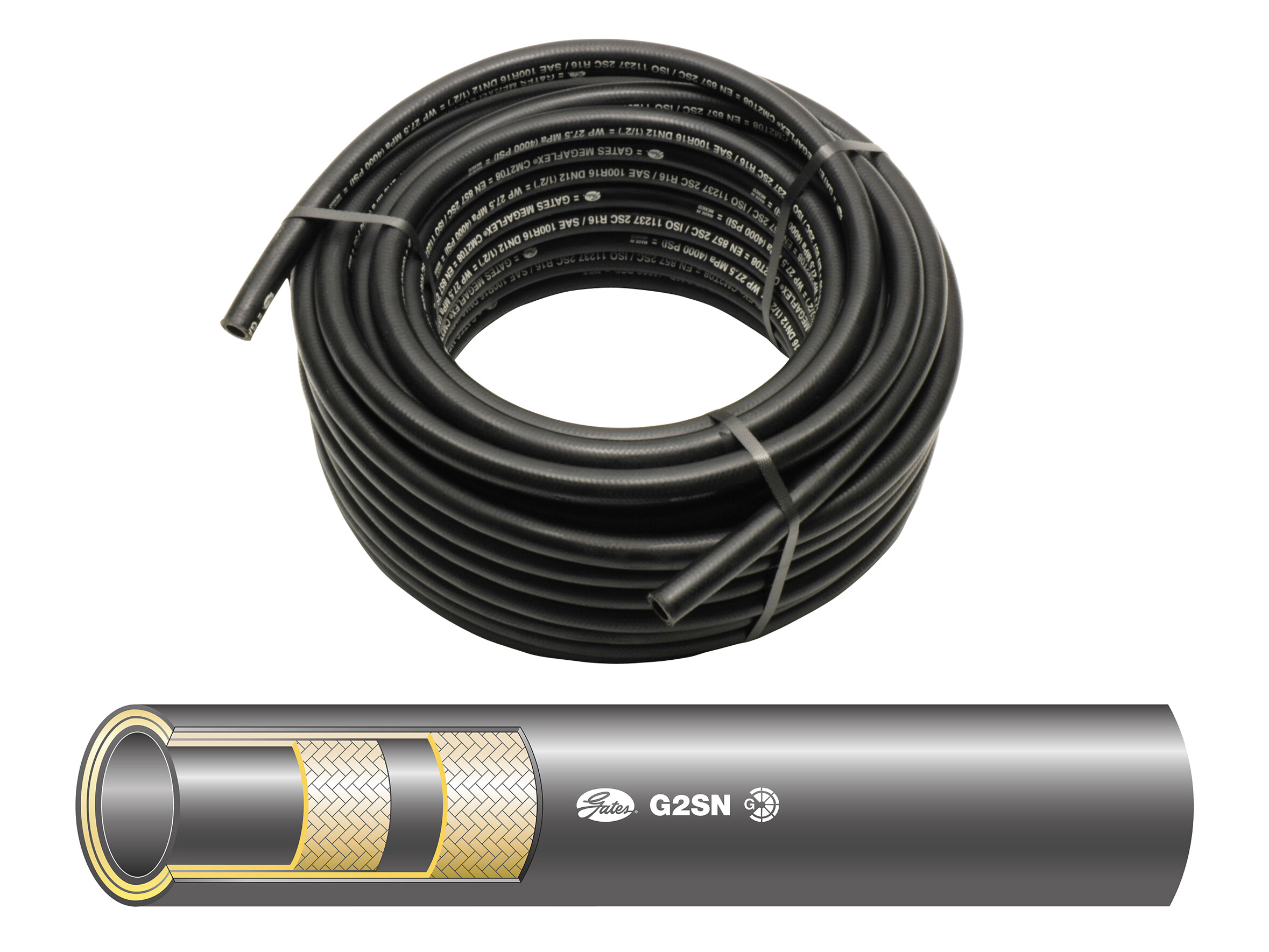

1/4" Hydraulic hose G2 - 400 bar - 2SN - 175M reel
Compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils.
Are supplied on a reel containing 175 meter hose. May hold up to maximum 4 pcs. of which the shortest may be minimum 3 meters.
Varenummer:
04G2-RL175
Pakkestr.:
175 m
Min. bestillingsmengde er:
175 m
Bend radius
50 mm
Brand Name
Gates
Cover
NBR/PVC
Diameter inner
6.4 mm
Diameter outer
15 mm
Diameter roll
560 mm
Flameresistant
Yes
Hose size
1/4 "
Hose type
2SN
Hoseapprovals
ABS, BV, DNV, GL, LR, MSHA
Length per roll
175 m
Order unit
Plastic roll
Pressure burst min.
1600 bar
Pressure max.
400 bar
REACH compliant
Yes
Reinforcement
2 layer high tensile steel wire braid
RoHs compliant
Yes
Standard EN
EN 853 2SN
Standard ISO
ISO 1436 2SN R2ATS
Standard SAE
SAE 100R2AT
Temperature intermittent max.
+121 °C
Temperature max.
+100 °C
Temperature min.
-40 °C
Tube
NBR (Nitrile)
Width
32 cm
Pakkestr.
175 m
Strekkode
5704295997681
Bruttovekt
0,35 Kg
Nettovekt
0,35 Kg
Opprinnelsesland
CHN
Intrastat produktkode
40092100
Compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils.
Are supplied on a reel containing 175 meter hose. May hold up to maximum 4 pcs. of which the shortest may be minimum 3 meters.
Krympedimensjoner til 04G2-RL175
|
Slangetype |
Diameter - tommer |
Slangekoblingstype |
Kappe |
Pressmål - mm |
Avskrelling - int. |
Avskrelling - ekst. |
Arbeidstrykk - bar |
|---|---|---|---|---|---|---|---|
| 04G2 | 1/4 | R04 | R0430 |
18.4 mm
0
0.2 |
Nei | Nei | 400 |
| 04G2 | 1/4 | G04 |
18.8 mm
±0.25
|
Nei | Nei | 400 | |
| 04G2 | 1/4 | P04 | P0430 |
17.2 mm
±0.1
|
Nei | Nei | 400 |
