Q45-F1S-2x103/A1/D41/12V-F3D

2-section Q45 monoblock directional valve with built-in pressure relief valve. Manually and solenoid activated.

Spool function: 2 x double acting with port A and B closed in neutral position. Spring centered.

Open center port P to T in neutral position.

Varenummer:
045-2101

Pakke str.:
0 pcs

Min. bestillingsenhed er:
1 pcs
Activation
Manual, Solenoid

Brand Name
Walvoil

Contamination level max.
16/14/12 - ISO 4406

Current type
DC

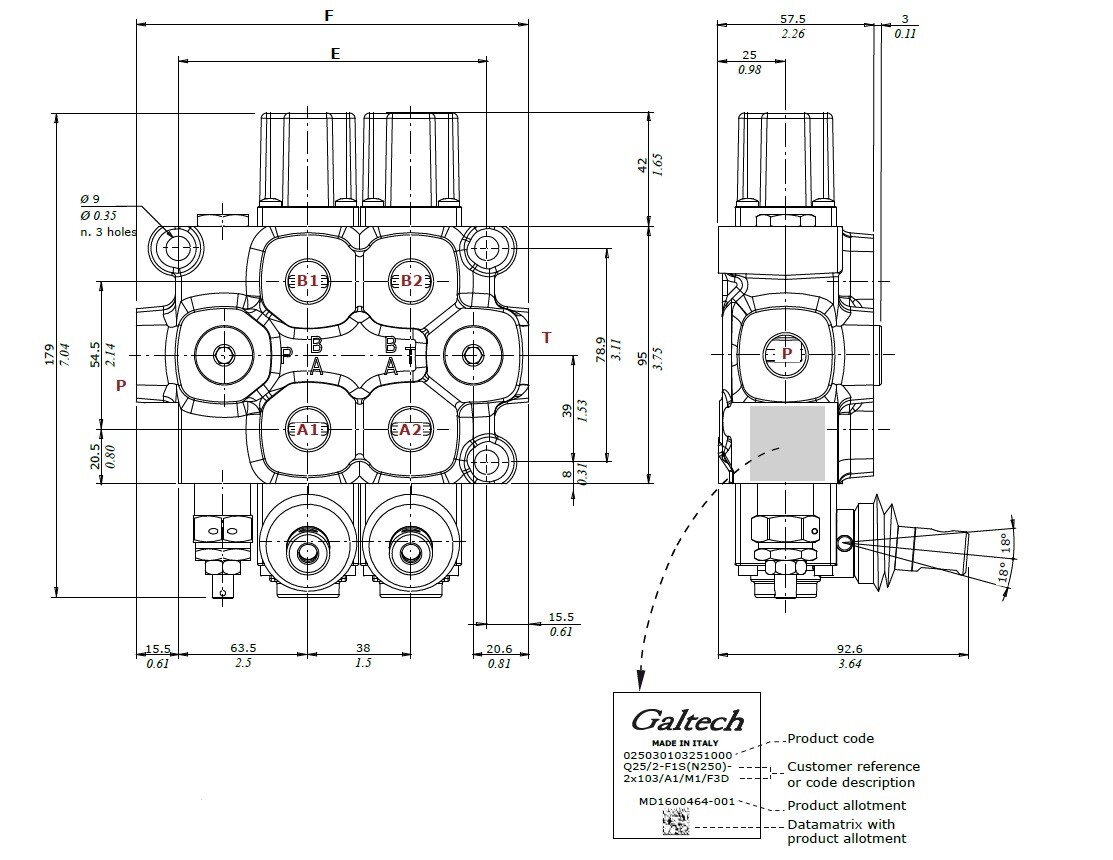

Dimension E
114 mm

Dimension F
145 mm

Flow rate nominal LMin
50 lpm

Lever
Exclusive

Material
Cast iron

Model code
Q45-F1S-2x103/A1/D41/12V-F3D

Number of sections
2

Oil viscocity recommended
10 - 400 cSt

Port P
G 1/2 BSP

Port P1
G 1/2 BSP

Port T
G 1/2 BSP

Port T1
G 1/2 BSP

Pressure T max.
25 bar

Pressure carry-over
No

Pressure max.
300 bar

Pressure relief valve
Yes

Pressure setting max.
200 bar

Pressure setting min.
100 bar

Temperature max.
+80 °C

Temperature min.
-30 °C

Voltage
12 V

Working ports
G 1/2 BSP
Förpackningsstorlek
0 pcs

Streckkod
5704334003571

Bruttovikt
6,95 Kg

Nettovikt
6,95 Kg

Ursprungsland
ITA

Intrastat artikelkod
84812010

2-section Q45 monoblock directional valve with built-in pressure relief valve. Manually and solenoid activated.

Spool function: 2 x double acting with port A and B closed in neutral position. Spring centered.

Open center port P to T in neutral position.
