Q25M/4-F1S-4x111/A2/M1-F6D

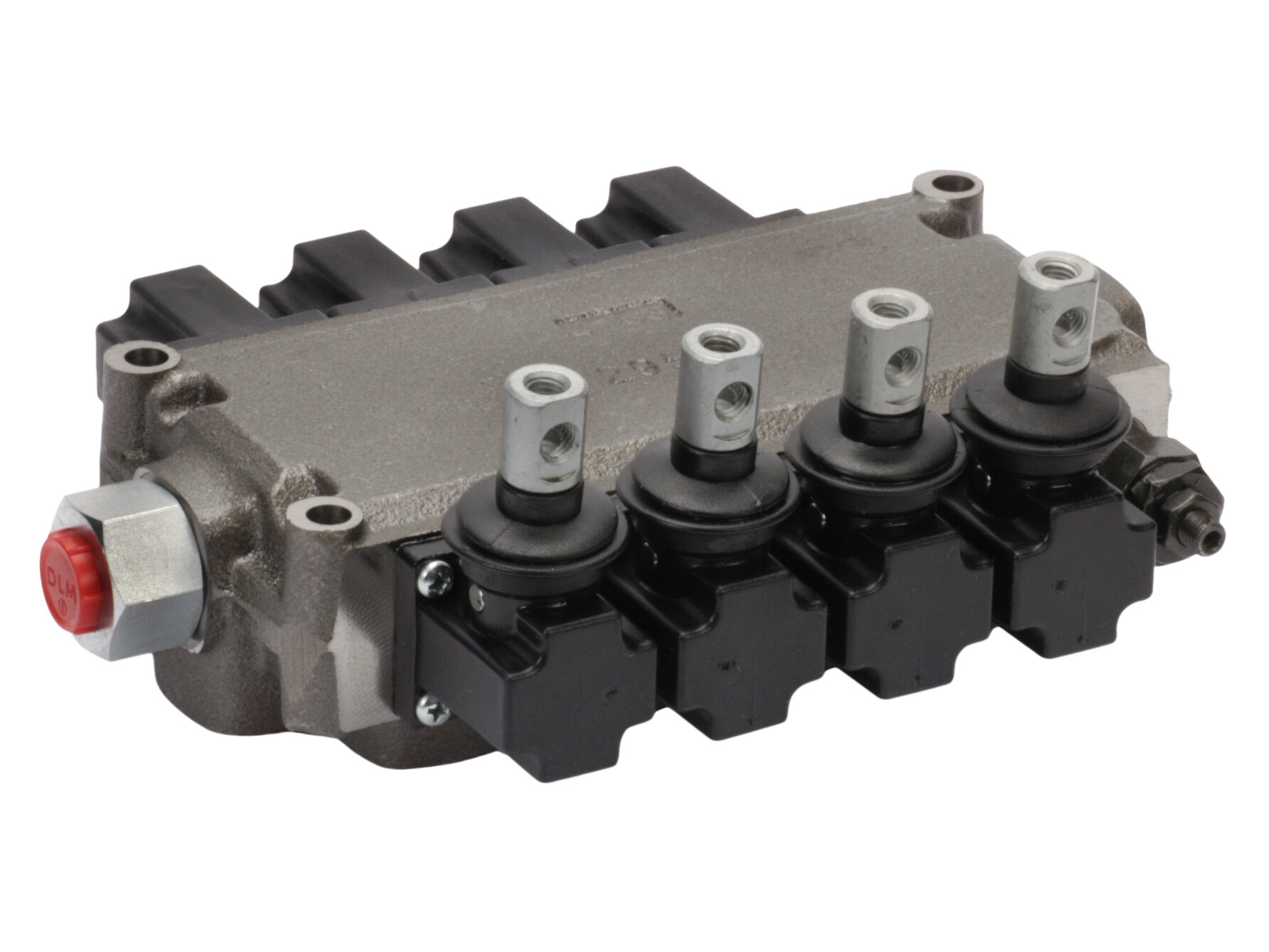

4-section Q25 monoblock directional valve with built-in pressure relief valve. Manually activated
Spool function: 4 x double acting with port A and B open to T in neutral position. Spring centered.
Handlever mounted rotated 180°.
Open center port P to T in neutral position.
With pressure carry-over
Partnumber:
025-4013
Package size:
0 pcs
Min. order quantity is:
1 pcs
Brand Name
Walvoil
Contamination level max.
16/14/12 - ISO 4406
Flow rate nominal LMin
35 lpm
Lever
Exclusive
Material
Cast iron
Model code
Q25M/4-F1S-4x111/A2/M1-F6D
Number of sections
4
Oil viscocity recommended
10 - 400 cSt
Port P1
G 3/8 BSP
Port P2
G 3/8 BSP
Port T1
G 3/8 BSP
Port T2
G 3/8 BSP
Pressure T max.
25 bar
Pressure carry-over
Yes
Pressure max.
300 bar
Pressure relief valve
Yes
Pressure setting max.
280 bar
Pressure setting min.
30 bar
Working ports
G 3/8 BSP
Package size
0 pcs
Barcode
5704295793245
Gross weight
7,24 Kg
Net weight
7,24 Kg
Country of origin
ITA
Intrastat code
84812010
4-section Q25 monoblock directional valve with built-in pressure relief valve. Manually activated
Spool function: 4 x double acting with port A and B open to T in neutral position. Spring centered.
Handlever mounted rotated 180°.
Open center port P to T in neutral position.
With pressure carry-over
